ESD122DMYR - Texas Instruments

Dual 0.2-pF, ±3.6-V, ±17-kV ESD protection diode for USB Type-C and HDMI 2.0 3-X2SON -40 to 125

Technical Details

Ambient Temperature Range High	125°C
Breakdown Voltage	5.1V
Capacitance	200fF
Clamping Voltage	8.4V
Direction	Bidirectional
Height	400µm
Interface	USB
Length	1.3mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Number of Channels	2
Number of Pins	3
Operating Supply Voltage	3.6V
Packaging	Cut Tape
Peak Pulse Current	2.5A
Reverse Standoff Voltage	3.6V
RoHS	Compliant
Schedule B	8541100080, 8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|8541100080\|85
Thickness	350µm
Width	600µm

Compliance

RoHS : Unconfirmed

Images

Texas Instruments ESD122DMYR | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

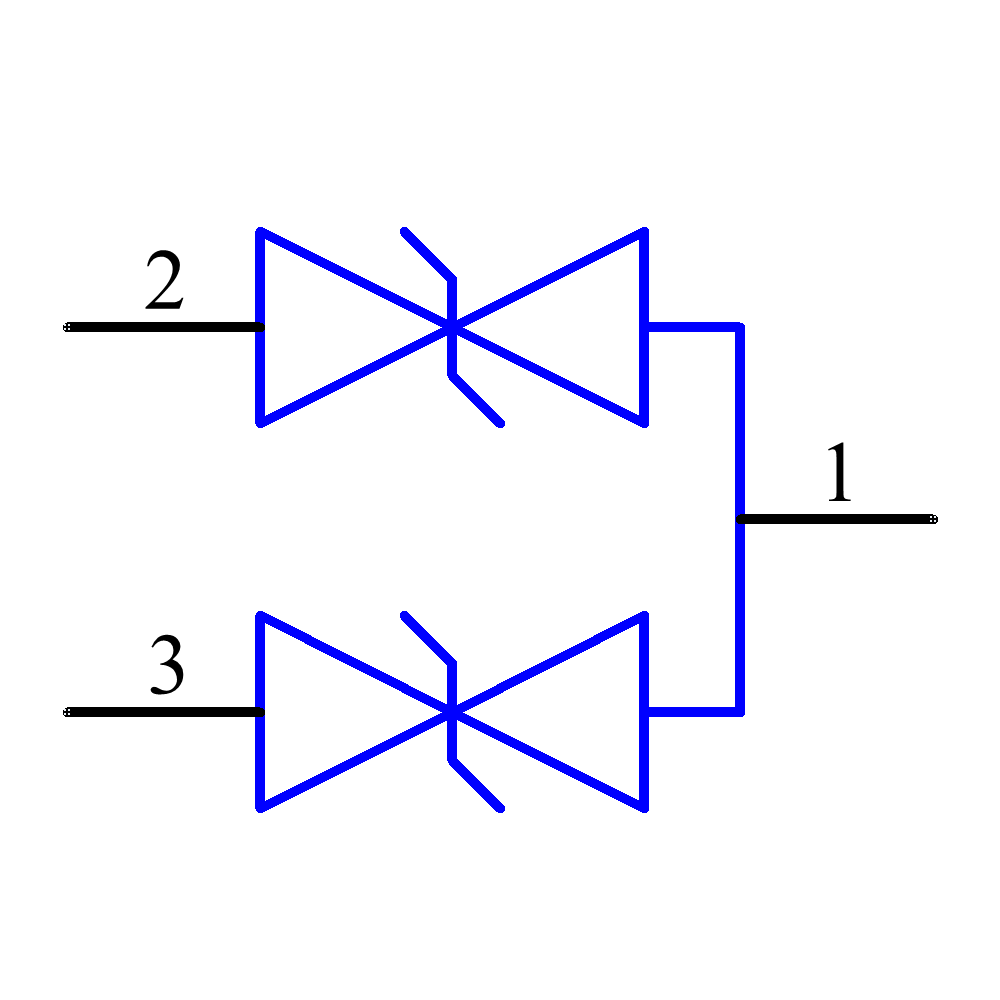

ESD122DMYR Symbol - Texas Instruments

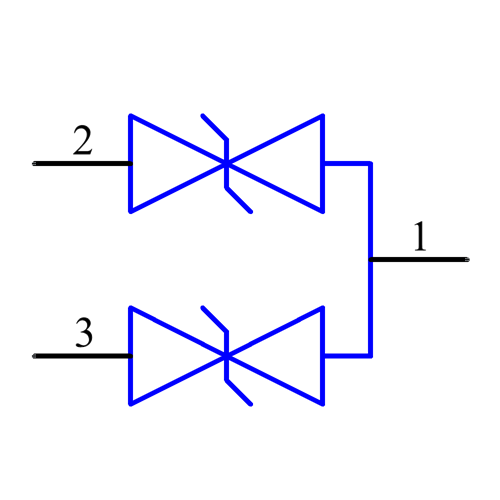

ESD122DMYR Symbol - Texas Instruments

ESD122DMYR Symbol - Texas Instruments

ESD122DMYR Symbol - Texas Instruments

‹ ›

Footprint

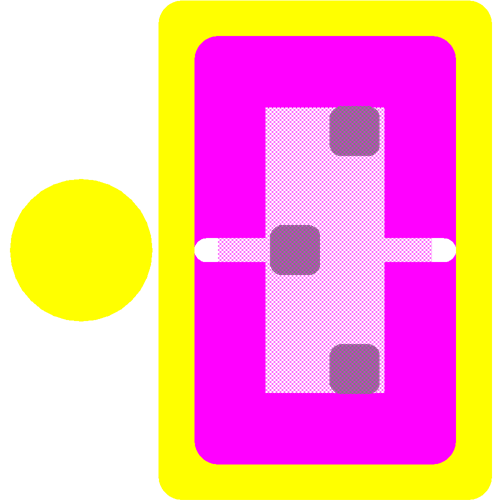

ESD122DMYR Footprint - Texas Instruments

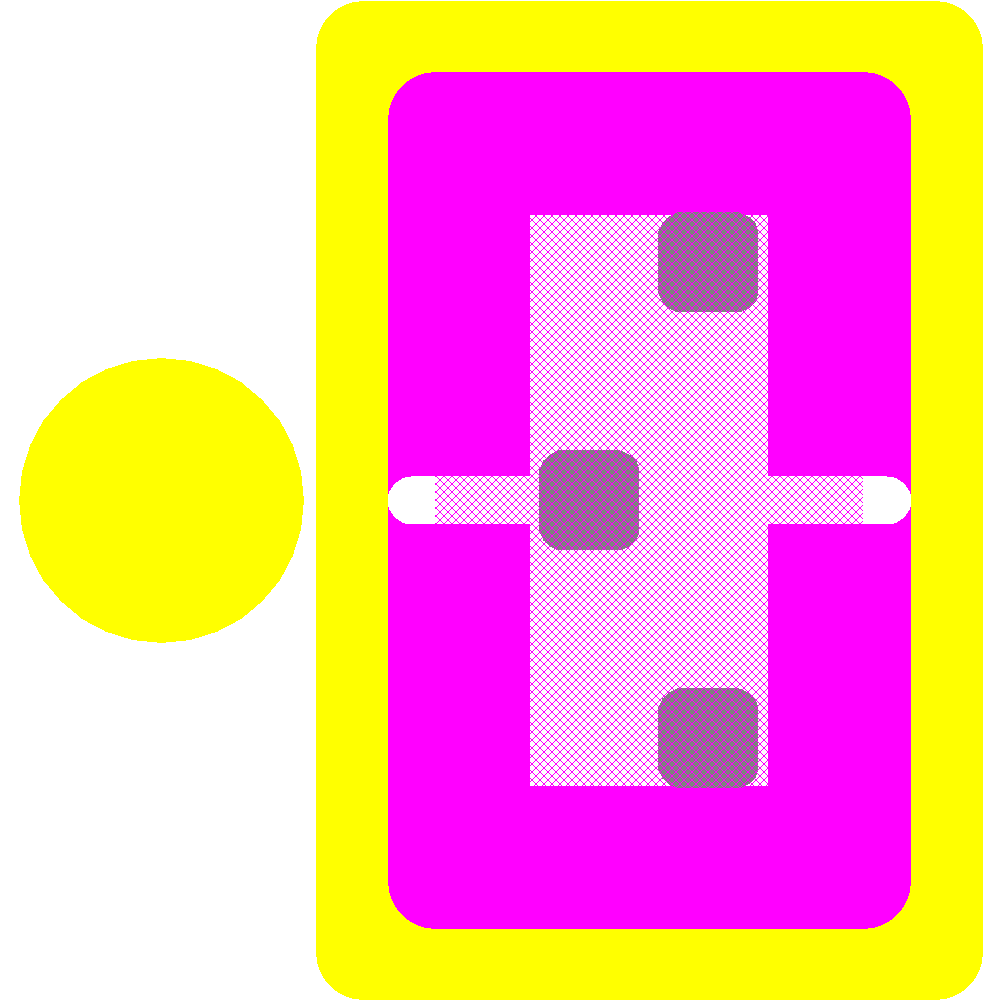

ESD122DMYR Footprint - Texas Instruments
