JM38510/30109BFA - Texas Instruments

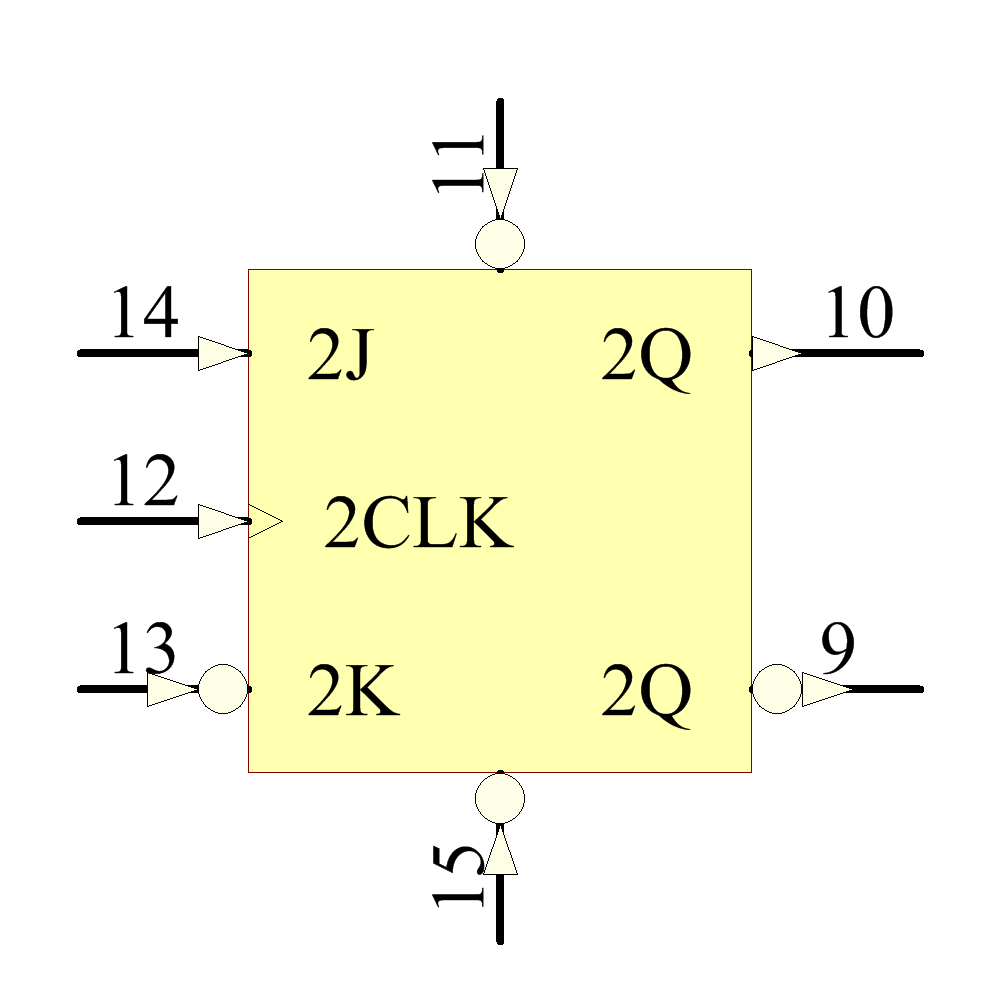

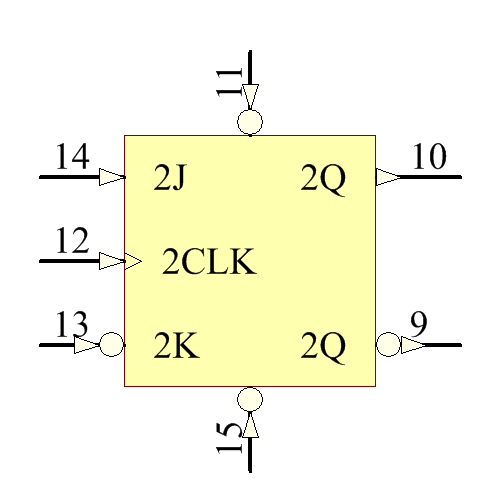

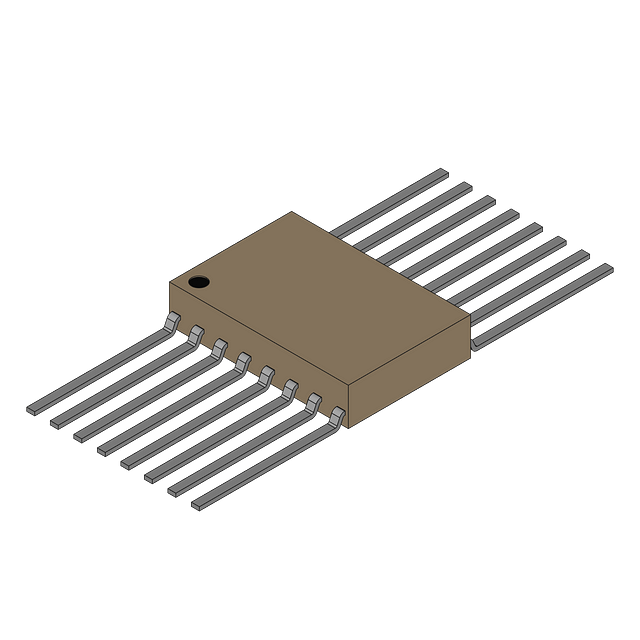

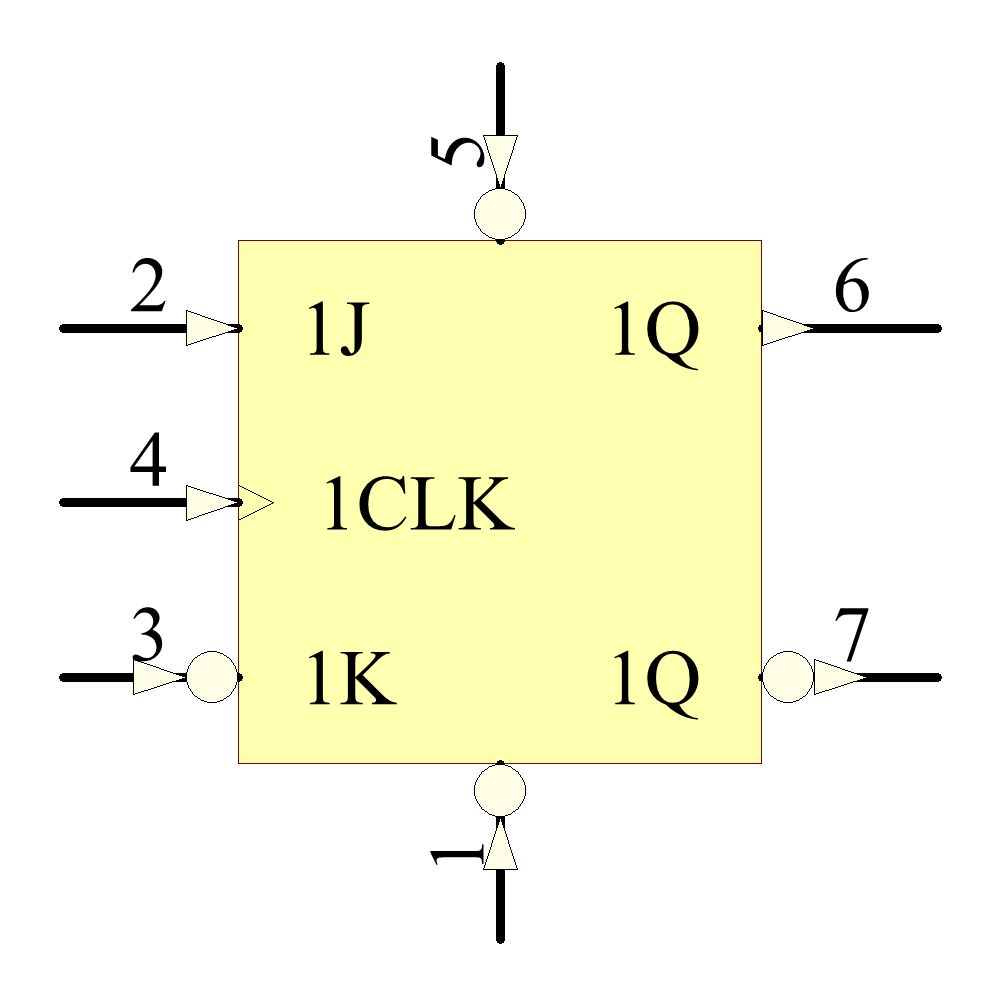

Dual J-K Positive-Edge-Triggered Flip-Flops With Preset And Clear 16-CFP -55 to 125
Technical Details
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 33MHz |
| Height | 2.03mm |
| High Level Output Current | -400µA |
| Lead Free | Contains Lead |
| Length | 10.3mm |
| Lifecycle Status | Production |
| Logic Function | JK-Type |
| Low Level Output Current | 4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Elements | 2 |
| Number of Pins | 16 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Polarity | Non-Inverting |
| Propagation Delay | 40ns |
| RoHS | Non-Compliant |
| Thickness | 1.65mm |
| Width | 6.73mm |
Compliance
RoHS : Unconfirmed
