JM38510/30502BCA - Texas Instruments
Military 4-ch, 2-input, 4.5-V to 5.5-V bipolar XOR (exclusive OR) gates 14-CDIP -55 to 125
Technical Details
| Case/Package | CDIP |
| Height | 5.08mm |
| High Level Output Current | -400µA |
| Lead Free | Contains Lead |
| Length | 19.56mm |
| Lifecycle Status | Production |
| Logic Function | XOR |
| Low Level Output Current | 4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Propagation Delay | 30ns |
| Quiescent Current | 10mA |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 4.57mm |
| Width | 6.67mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

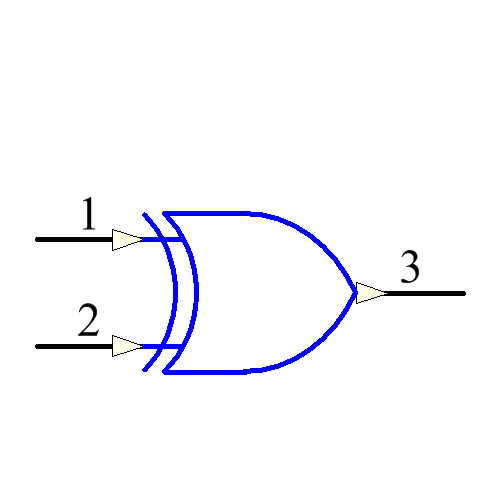

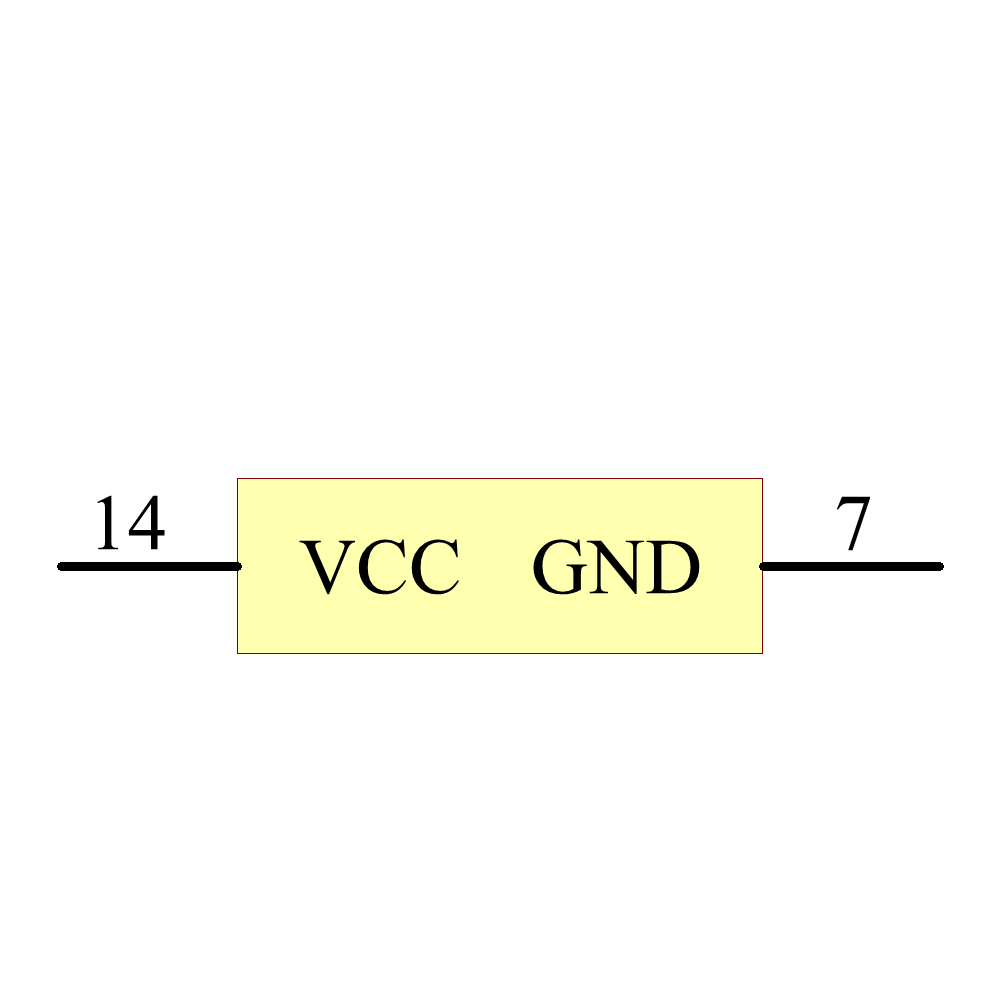

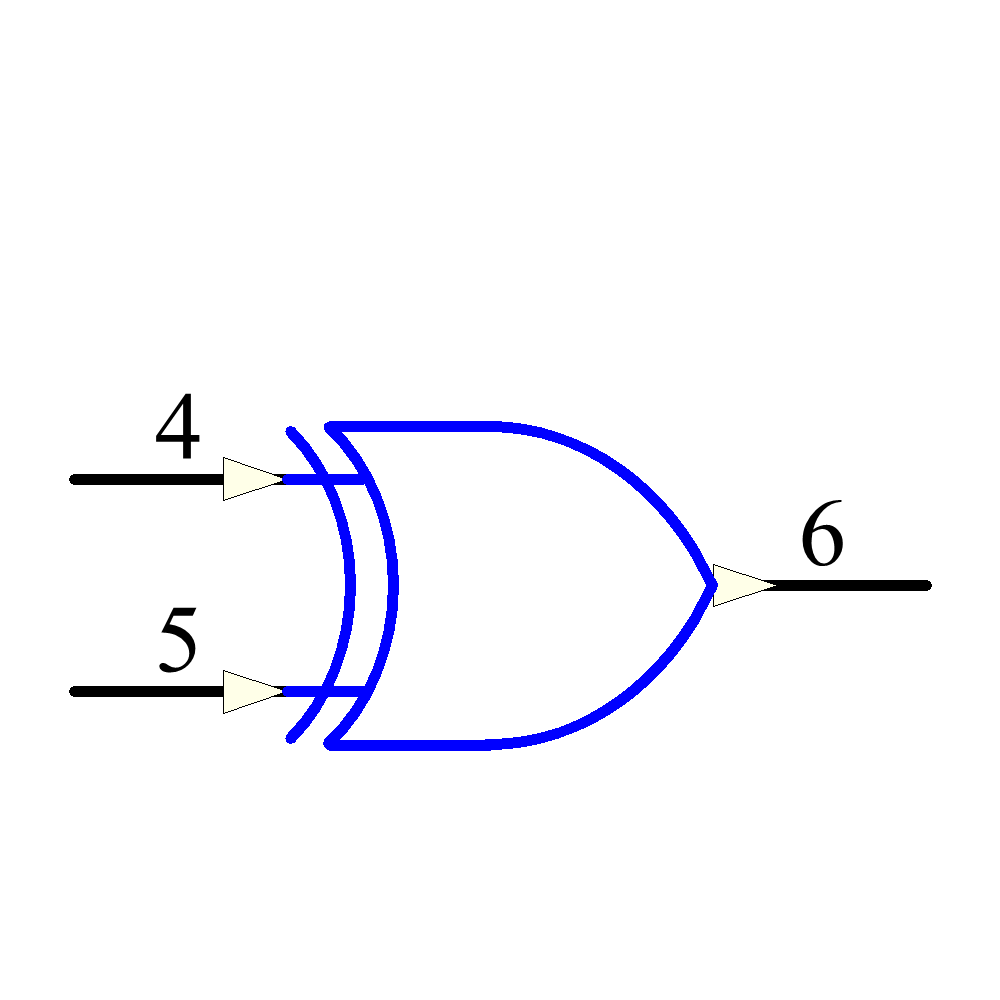

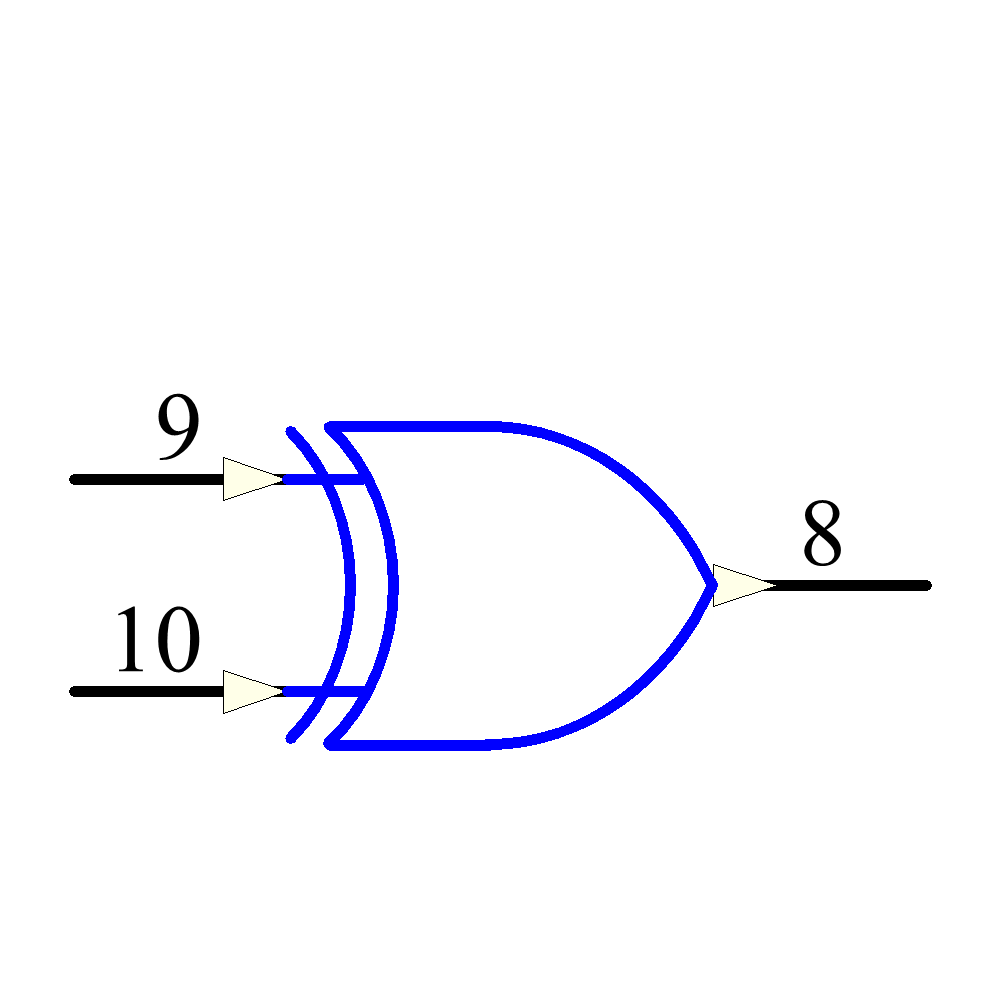

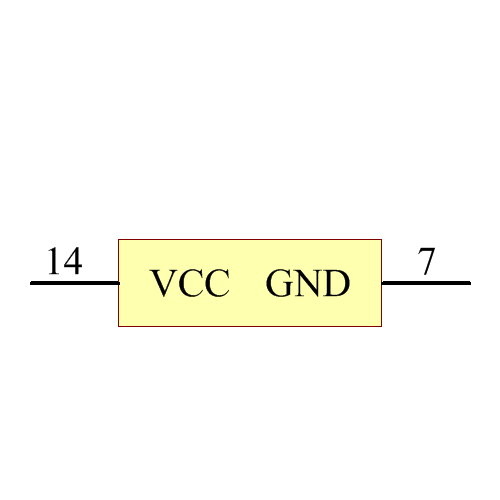

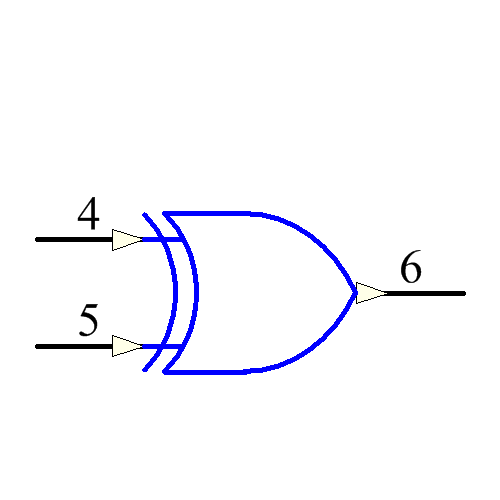

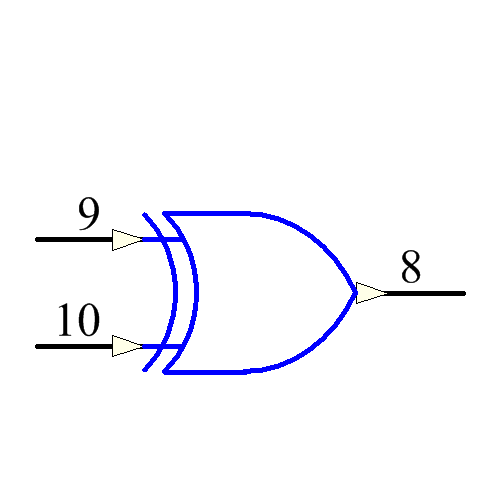

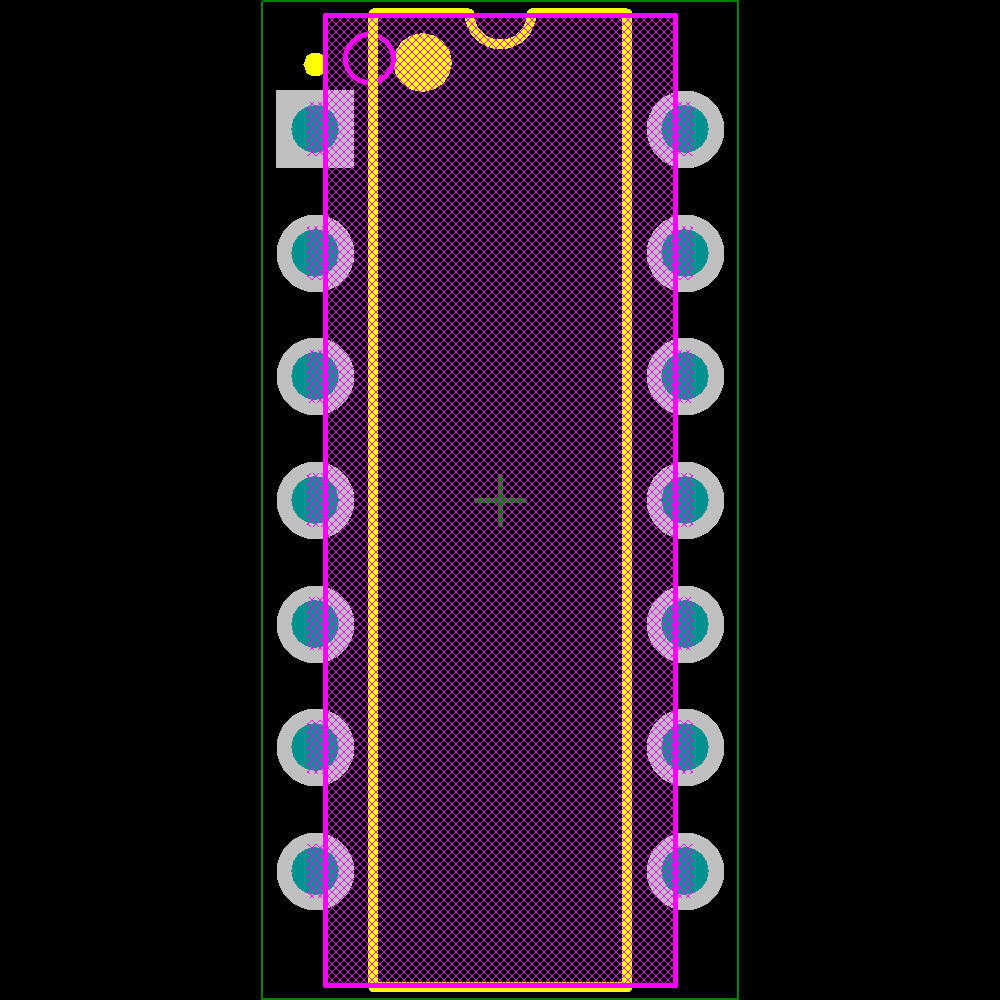

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Renesas | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Motorola | Obsolete | ||
| Motorola | Obsolete | ||
| Motorola | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
