JM38510/32504BSA - Texas Instruments
Octal D-type Flip-Flops With Enable 20-CFP -55 to 125
Technical Details
| Clock Edge Trigger Type | Positive Edge |
| Height | 2.45mm |
| High Level Output Current | -400µA |
| Lead Free | Contains Lead |
| Length | 13.09mm |
| Lifecycle Status | Production |
| Logic Function | D-Type |
| Low Level Output Current | 4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Elements | 1 |
| Number of Pins | 20 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 27ns |
| RoHS | Non-Compliant |
| Thickness | 1.84mm |
| Width | 6.92mm |
Compliance
RoHS : Unconfirmed

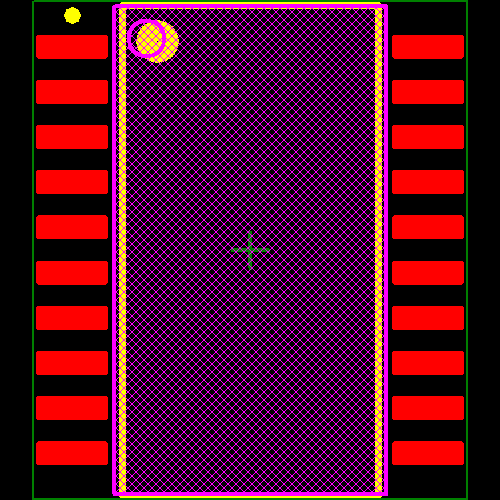

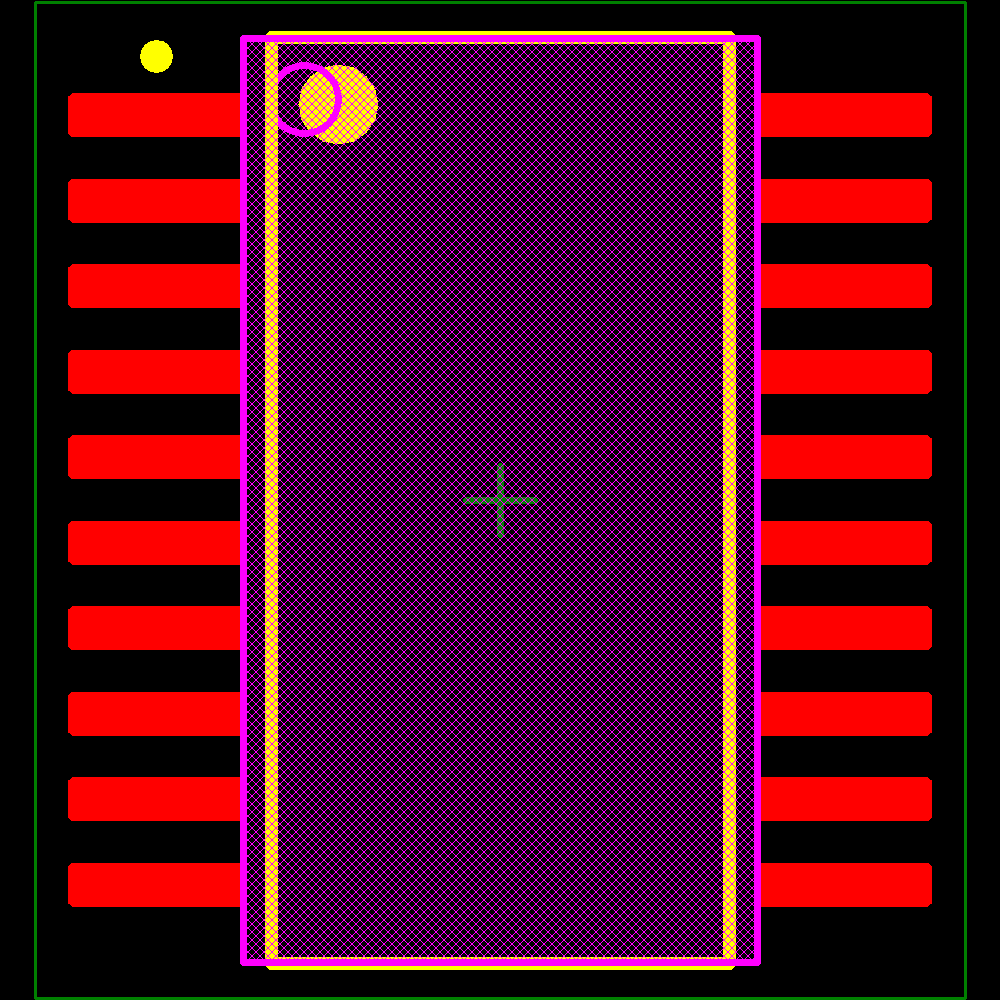

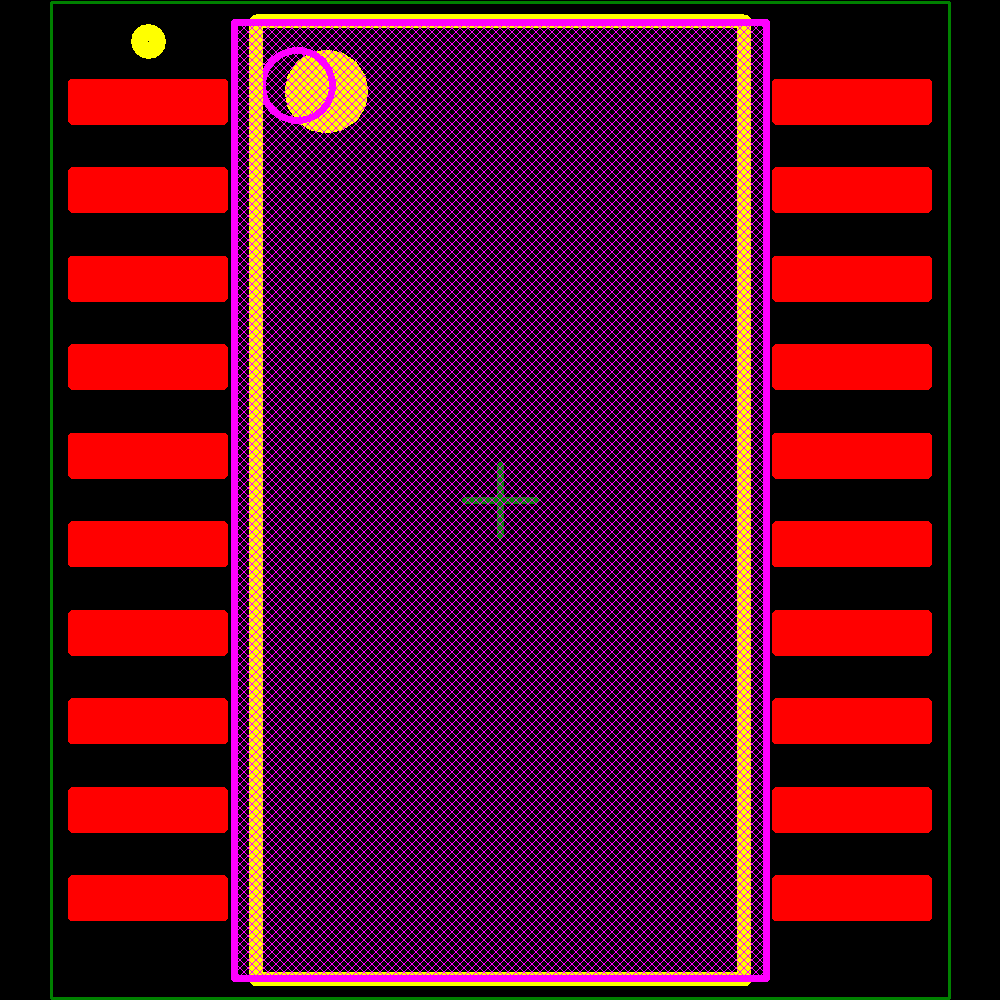

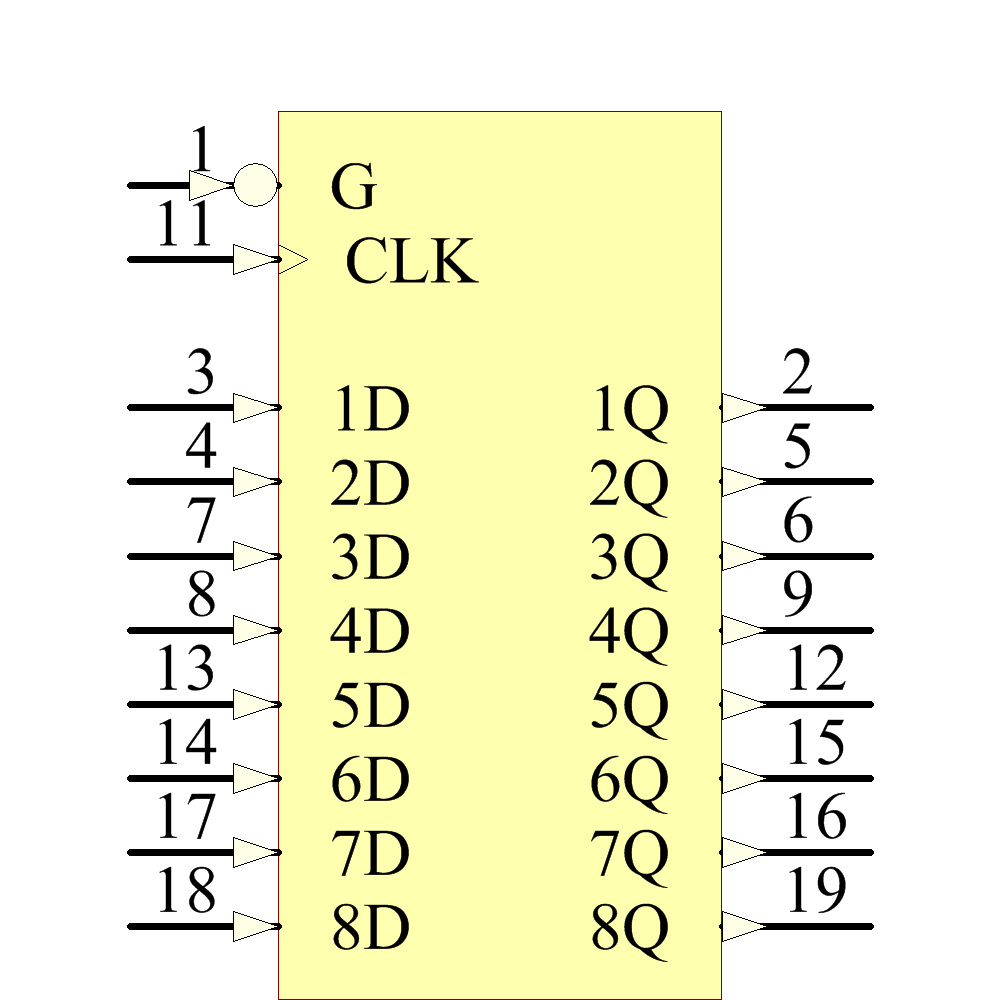

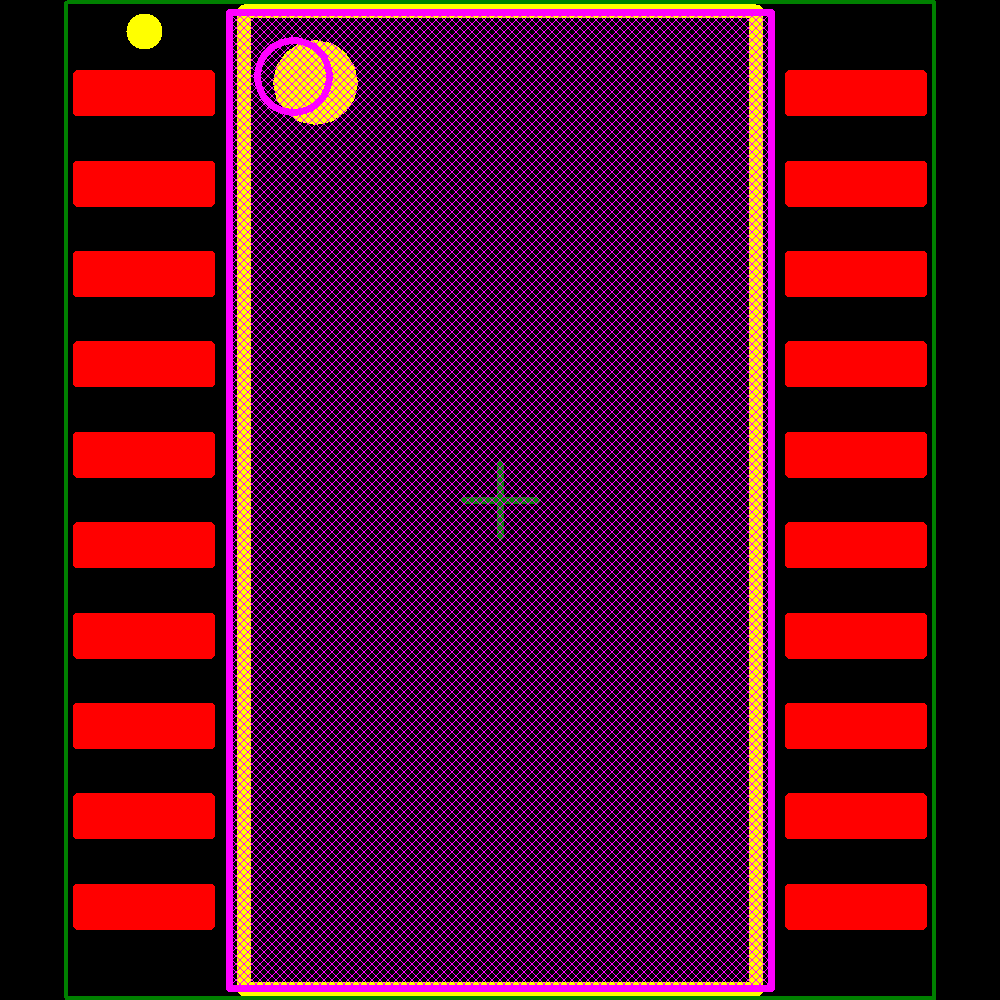

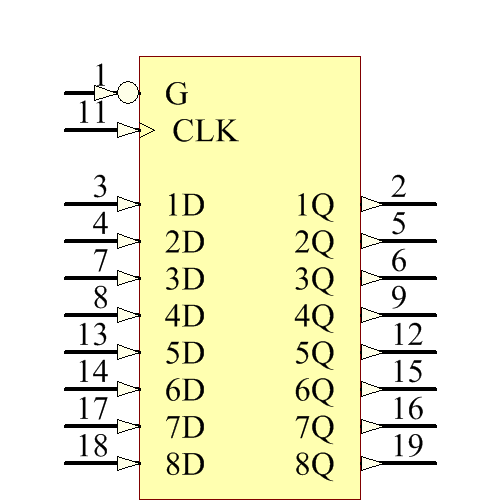

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Motorola | Obsolete | ||
| Toshiba | Obsolete | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Fairchild Semiconductor | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete |
