JM38510/34105BRA - Texas Instruments

Octal Edge-Triggered D-type Flip-Flops With 3-State Outputs 20-CDIP -55 to 125

Case/Package	CDIP
Clock Edge Trigger Type	Positive Edge
Frequency	60MHz
Height	5.08mm
High Level Output Current	-3mA
Lead Free	Contains Lead
Length	24.2mm
Lifecycle Status	Production
Logic Function	D-Type
Low Level Output Current	20mA
Manufacturer Lifecycle Status	ACTIVE
Max Frequency	60MHz
Max Operating Temperature	125°C
Max Supply Voltage	5.5V
Min Operating Temperature	-55°C
Min Supply Voltage	4.5V
Mount	Through Hole
Number of Bits	8
Number of Elements	1
Number of Outputs	8
Number of Pins	20
Operating Supply Voltage	5V
Output Type	TTL
Polarity	Non-Inverting
Propagation Delay	14ns
Radiation Hardening	No
RoHS	Non-Compliant
Thickness	4.57mm
Turn-On Delay Time	14ns
Width	6.92mm

RoHS : Unconfirmed

Radiation Hardening : No

Texas Instruments JM38510/34105BRA | Rochester Electronics

Rochester Electronics

Production

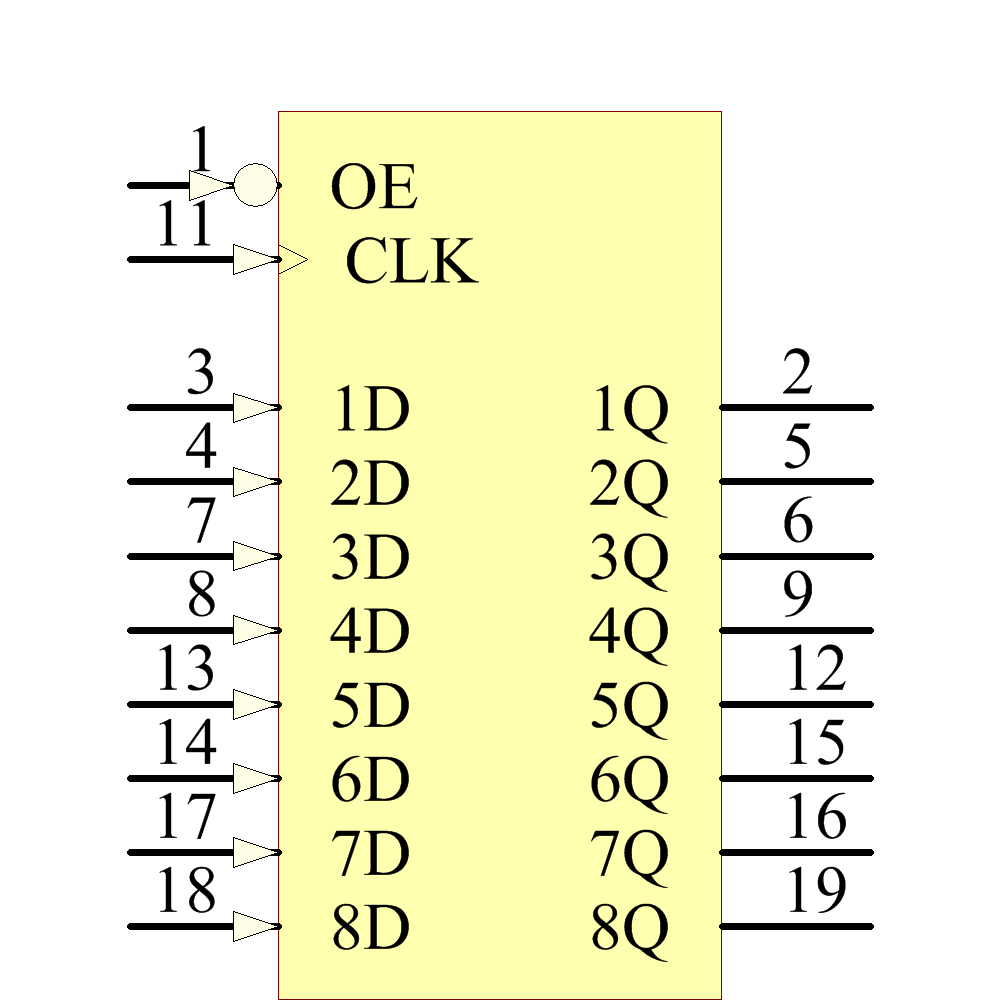

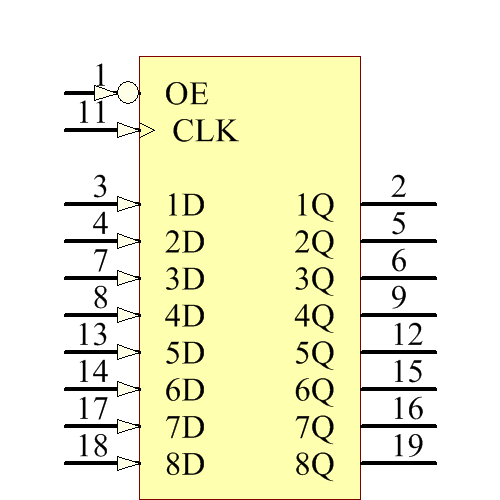

Symbol

‹ ›

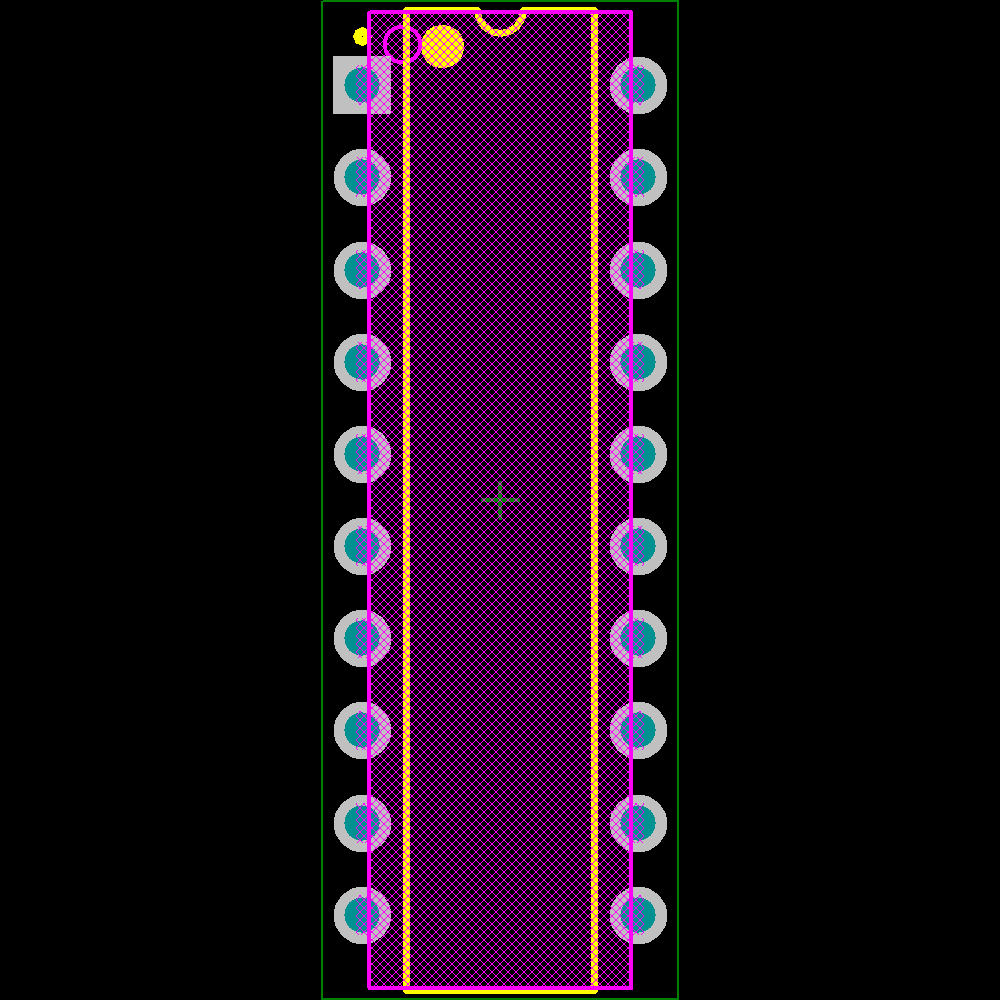

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Fairchild Semiconductor	54F374DMQB	Obsolete
onsemi	74F374PC	Obsolete
Texas Instruments	SN74F374NE4	Unknown
Texas Instruments	54F374DMQB	Unknown
NXP Semiconductors	N74F374N,602	Obsolete
Texas Instruments	SN74F374N3	Unknown
Texas Instruments	74F374DC	Production
Motorola	JM38510/34105BRA	Obsolete
Rochester Electronics	MC74F374JDS	Production
Rochester Electronics	MC74F374JD	Production
