LM22676TJE-5.0/NOPB - Texas Instruments
SIMPLE SWITCHER® 4.5V to 42V, 3A Step-Down Regulator with Precision Enable 7-TO-263 -40 to 125
Technical Details
| Case/Package | TO-263 |
| Efficiency | 90% |
| Frequency | 500kHz |
| Height | 2.25mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 42V |
| Max Operating Temperature | 125°C |
| Max Output Current | 3A |
| Max Output Voltage | 5V |
| Max Supply Voltage | 42V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Pins | 7 |
| Output Current | 3A |
| Output Type | Fixed |
| Output Voltage | 5V |
| Packaging | Cut Tape |
| Quiescent Current | 3.4mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
| Thickness | 2mm |
| Topology | Buck |
| Weight | 4.535924g |
| Width | 9.85mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

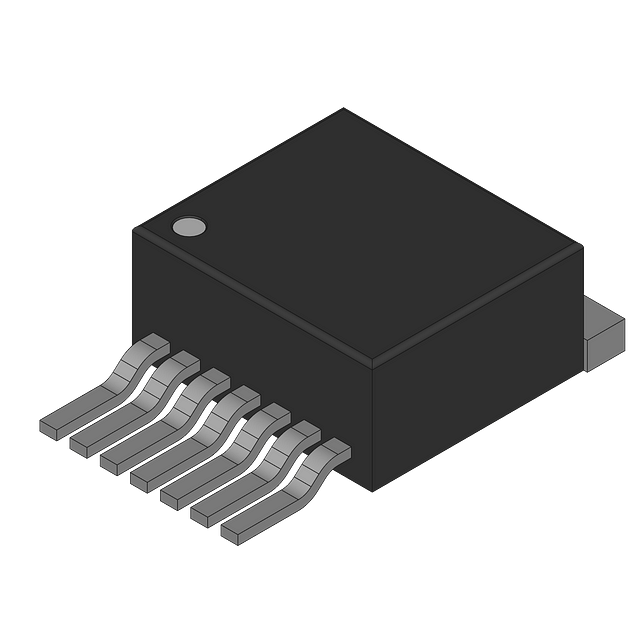

Images
