LM25088MHX-2/NOPB - Texas Instruments
IC REG CTRLR BUCK 16TSSOP Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-HTSSOP
Technical Details
| Case/Package | TSSOP |
| Clock Sync | Yes |
| Contact Plating | Tin |
| Duty Cycle | 97% |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 1MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Operating Supply Voltage | 42V |
| Output Configuration | Positive |
| Output Current | 10A |
| Output Voltage | 40V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 3.2mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 1MHz |
| Synchronous Rectifier | No |
| Thickness | 1mm |
| Topology | Buck |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

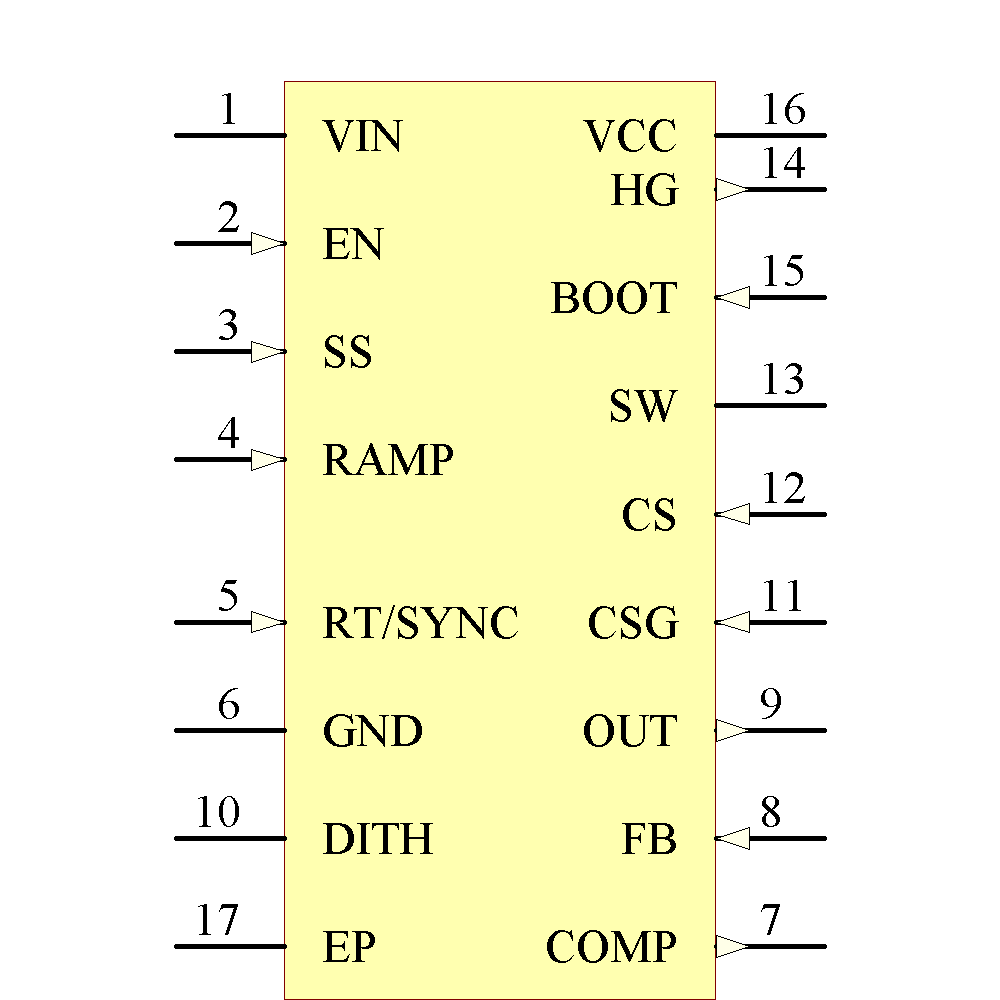

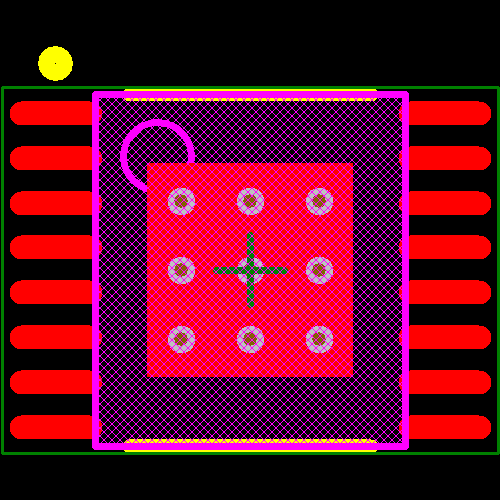

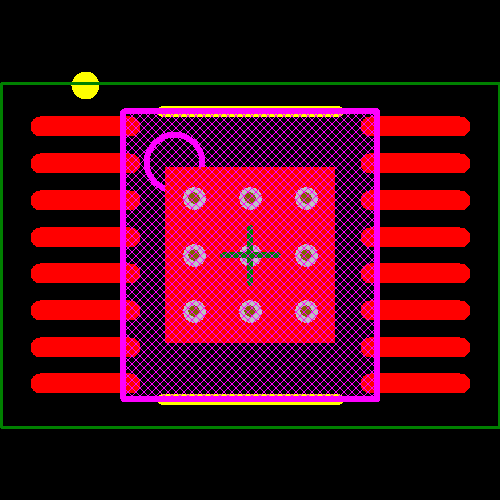

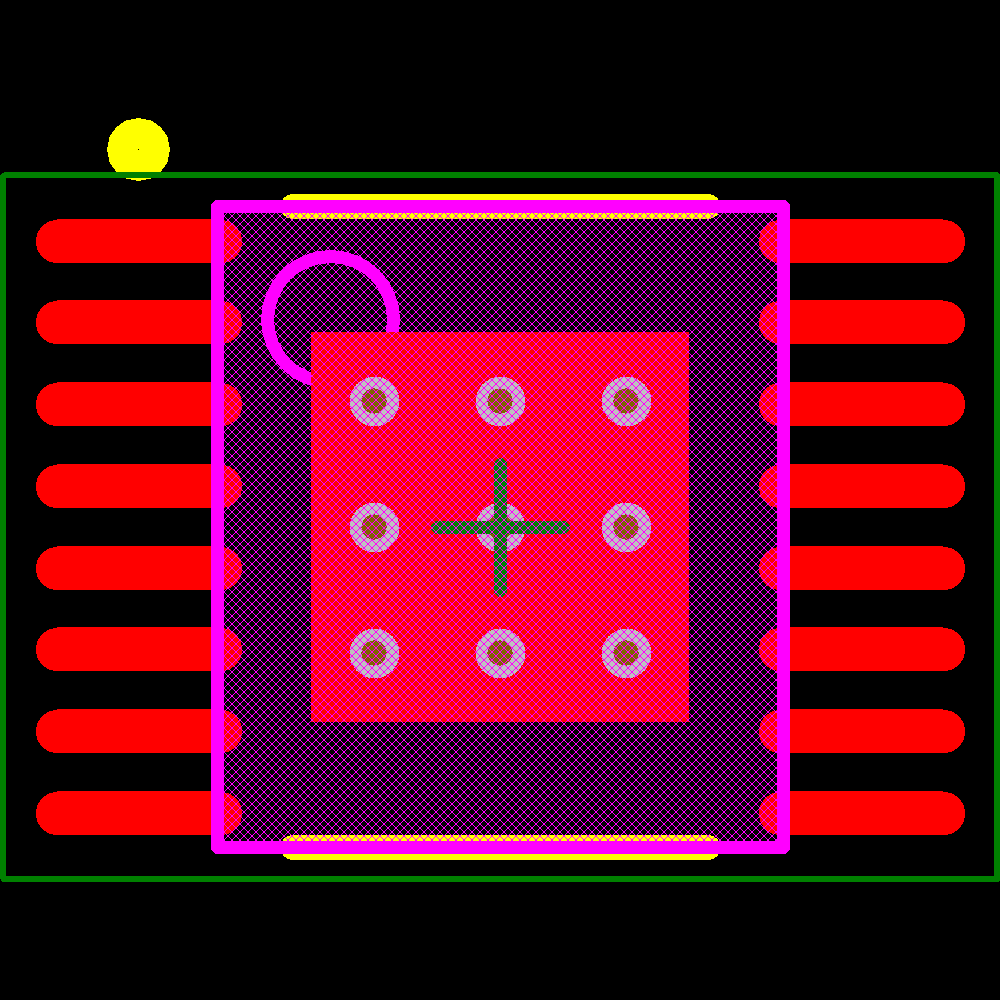

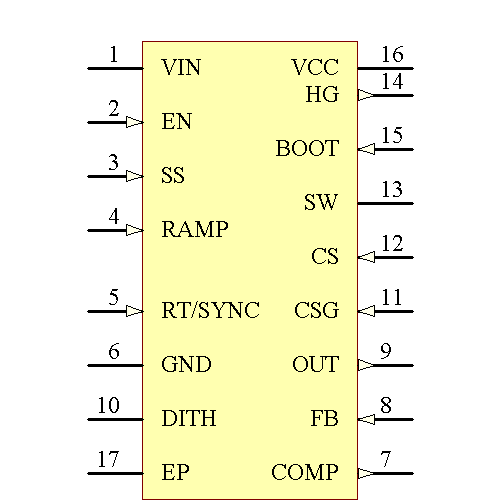

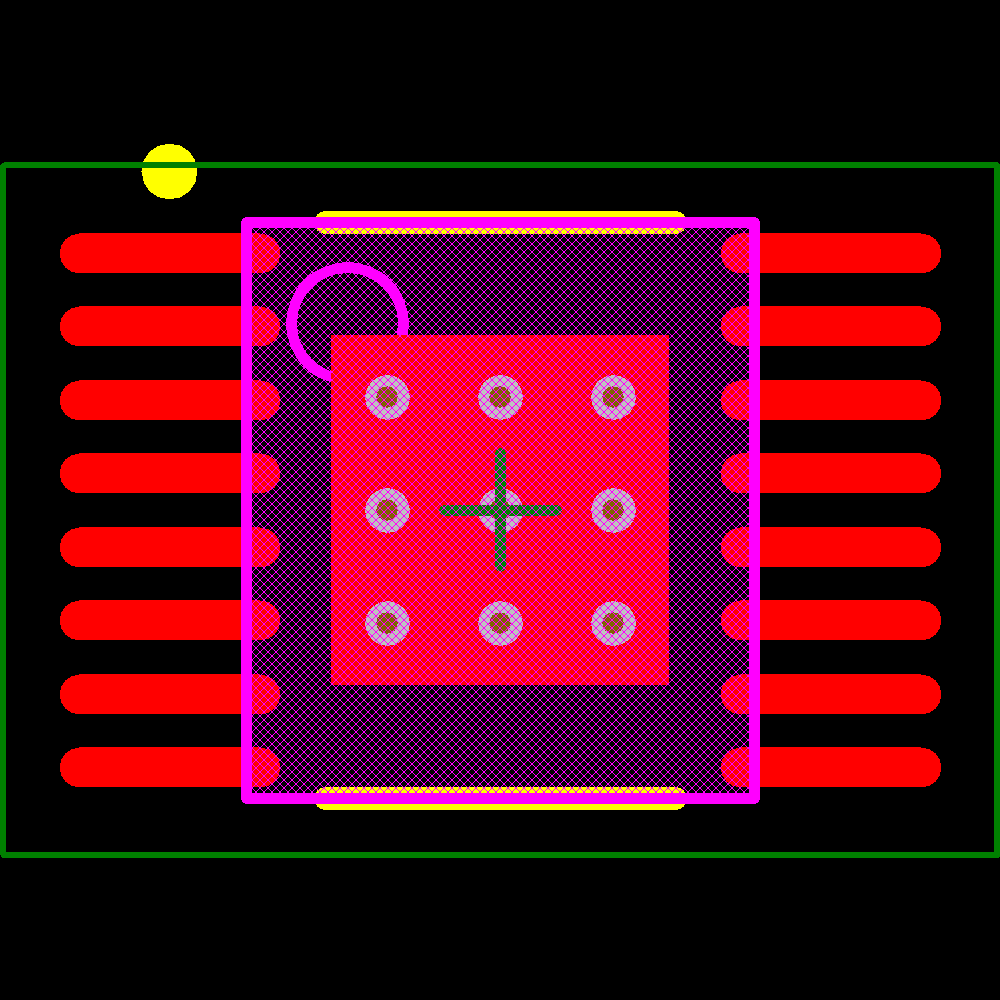

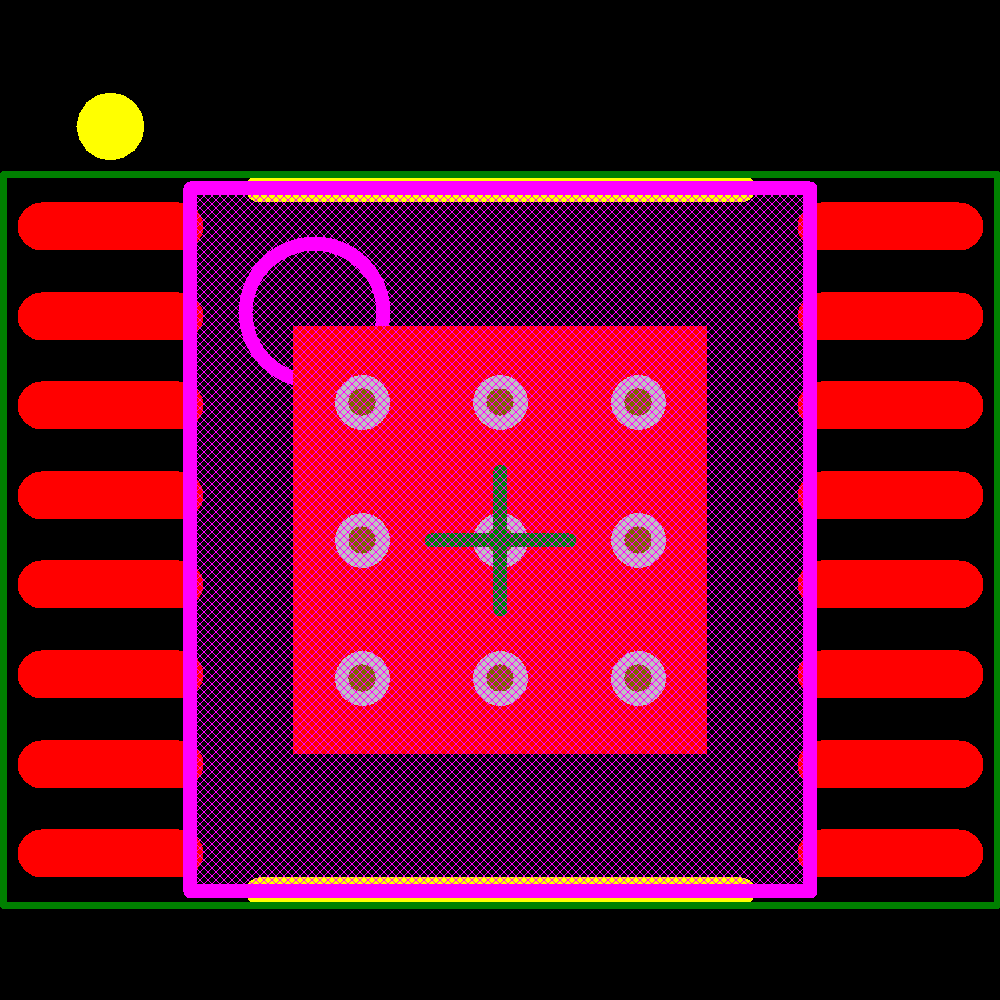

Images
