LM2576HVS-ADJ - Texas Instruments
IC REG BUCK ADJ 3A DDPAK "Buck Switching Regulator IC Positive Adjustable 1.23V 1 Output 3A TO-263-6, D2PAK (5 Leads...
Technical Details
| Case/Package | TO-263 |
| Efficiency | 77% |
| Frequency | 52kHz |
| Height | 4.83mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | LIFEBUY |
| Max Input Voltage | 60V |
| Max Operating Temperature | 125°C |
| Max Output Current | 3A |
| Max Output Voltage | 57V |
| Max Supply Voltage | 60V |
| Min Input Voltage | 4V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.23V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 57V |
| Packaging | Cut Tape |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 58kHz |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
| Thickness | 4.58mm |
| Topology | Buck |
| Width | 8.42mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

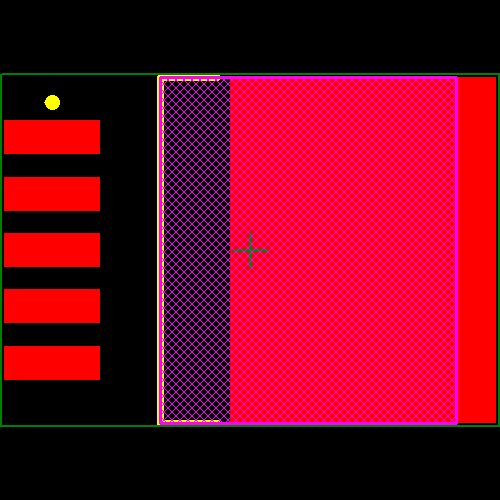

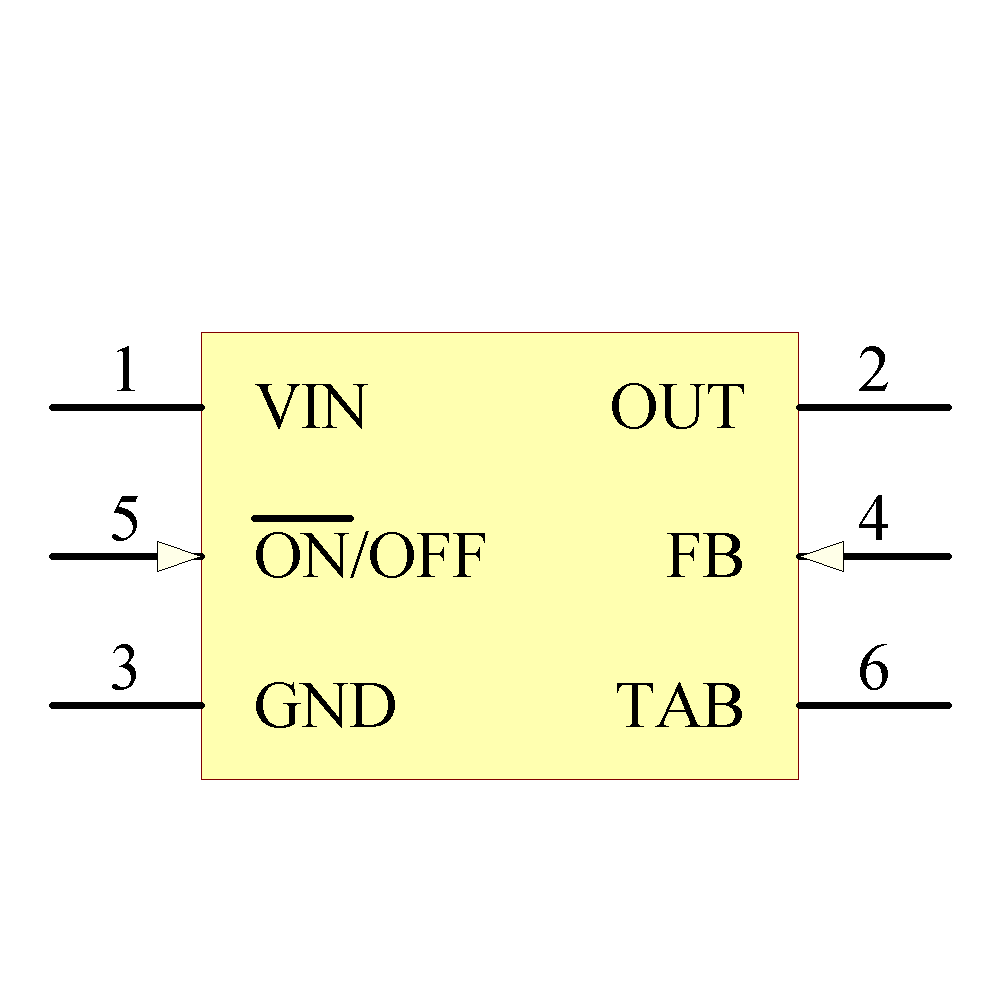

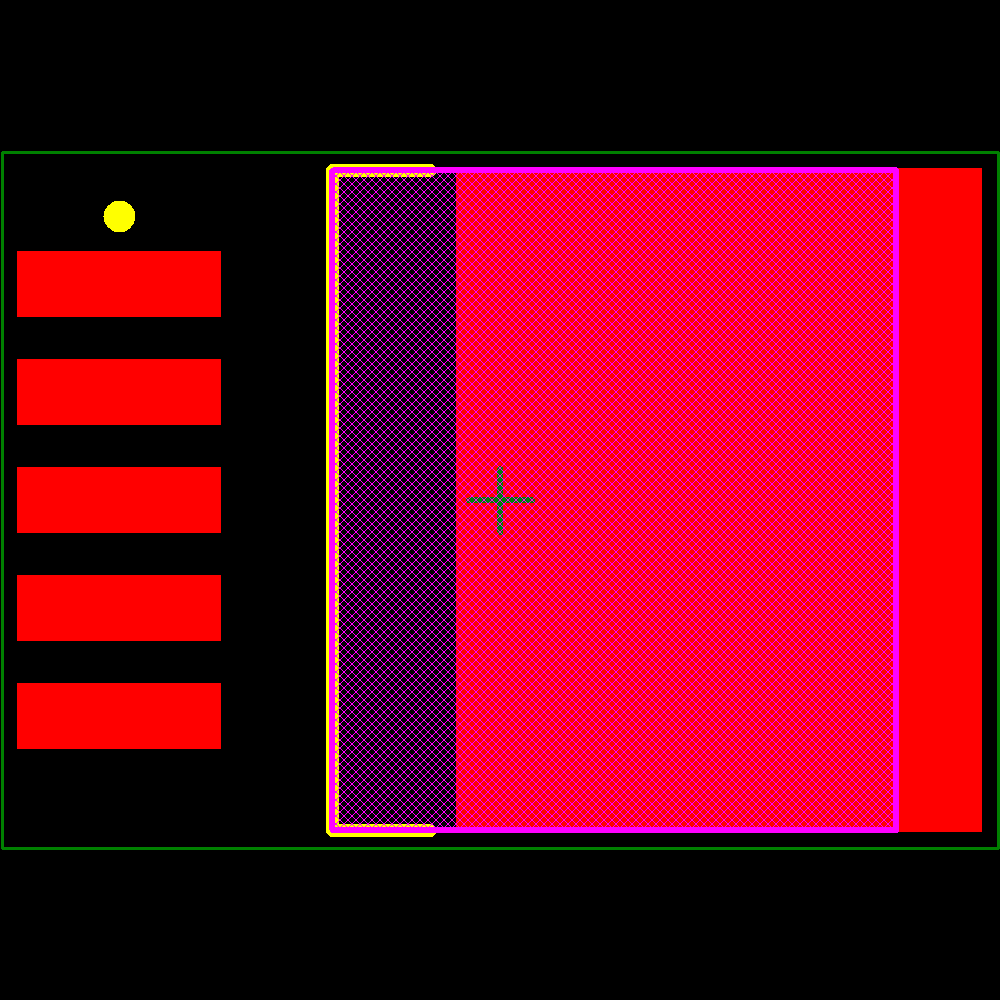

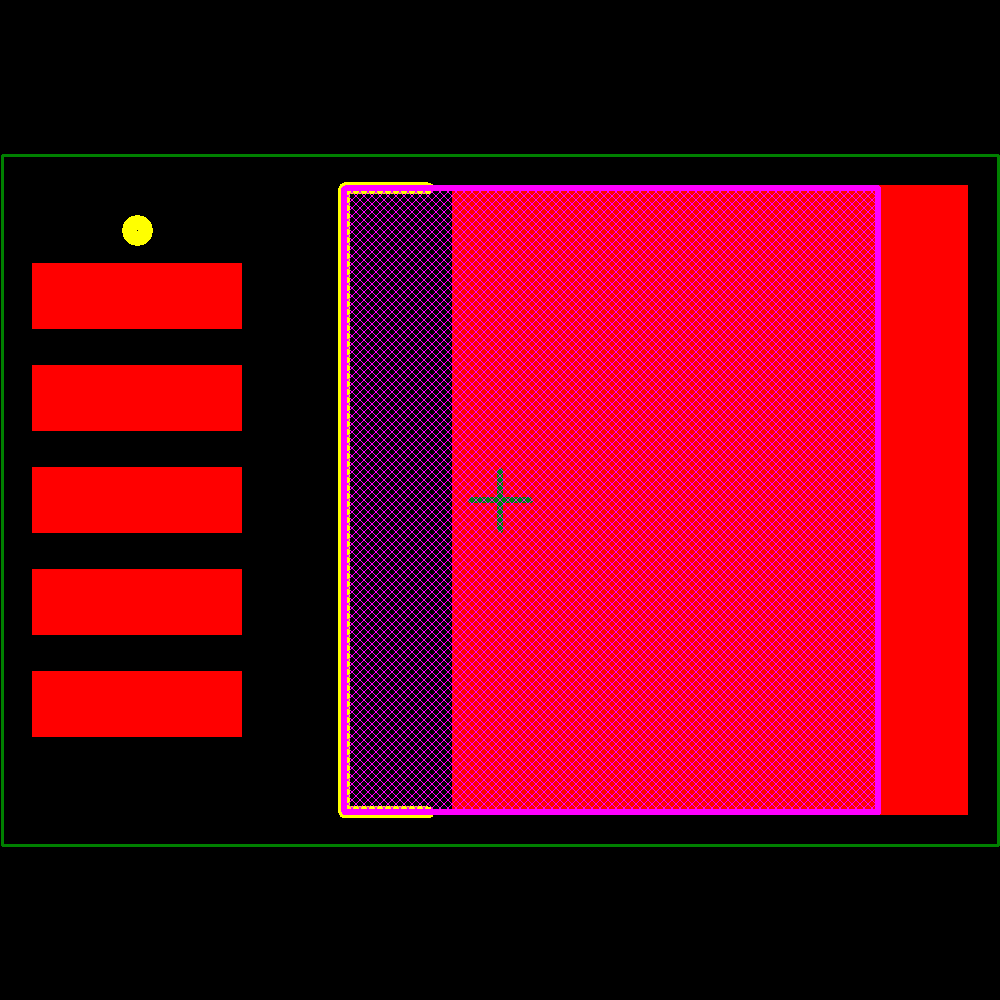

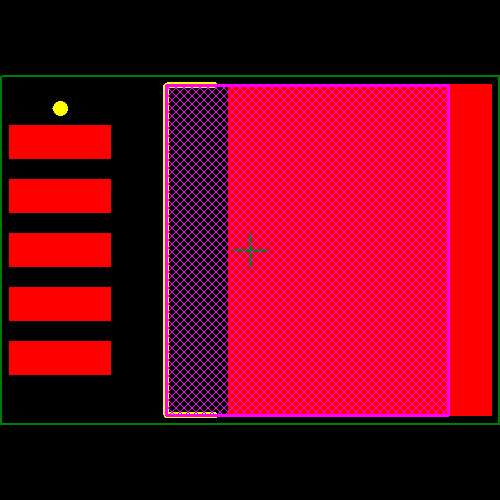

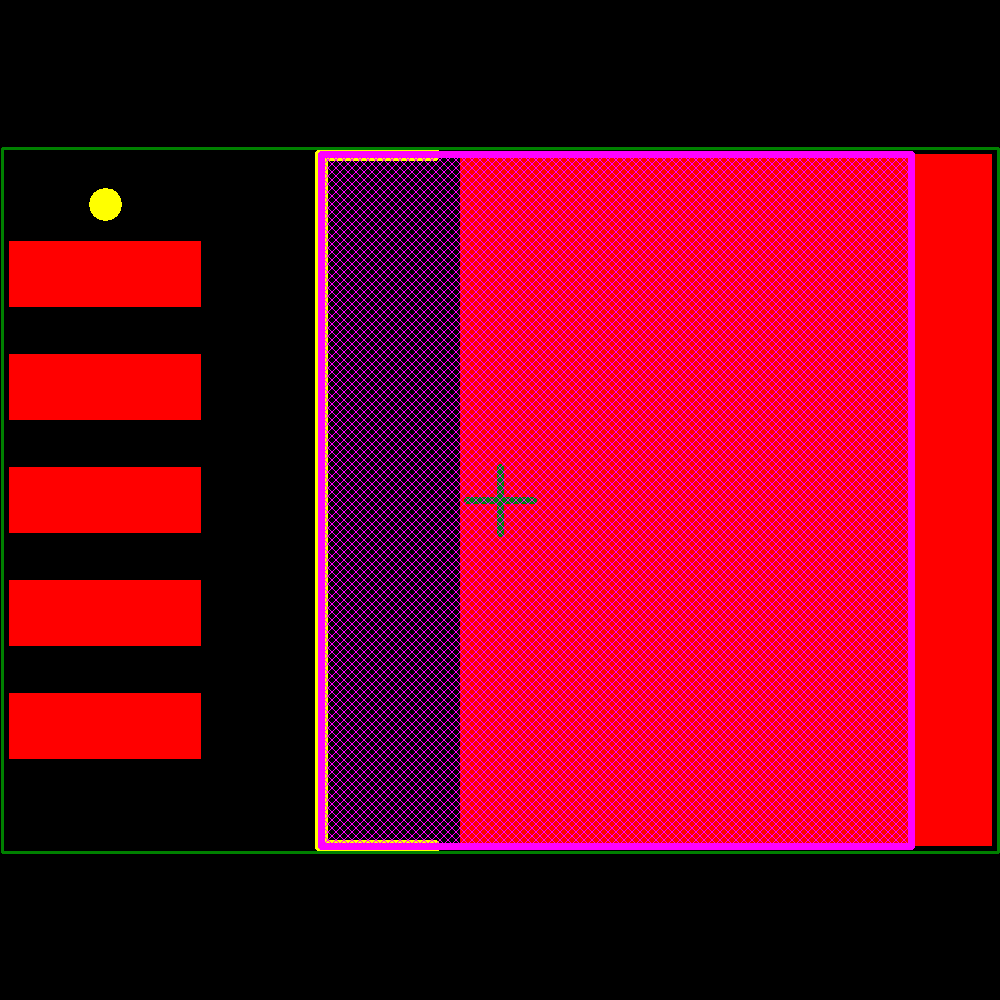

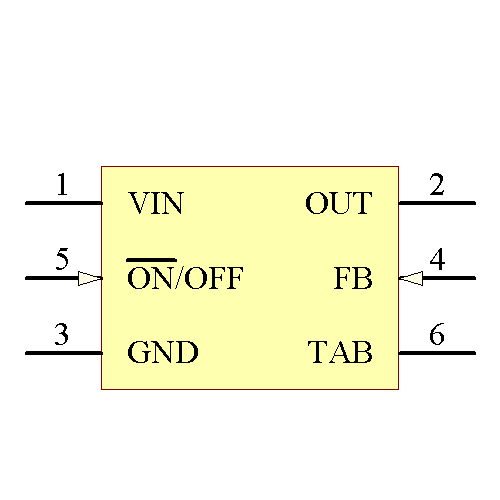

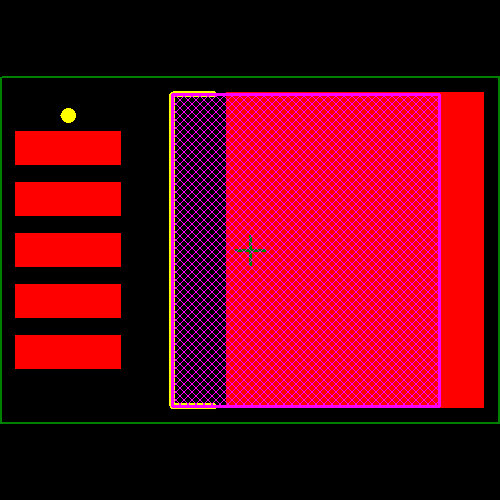

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Micrel | Unknown | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Production | ||
| Microchip | Production | ||
| Microchip | Production |
