Integrated Circuits (ICs)  >  Power Management ICs  >  Voltage Regulators - Switching

Texas Instruments - LM2576HVSX-3.3

LM2576HVSX-3.3 - Texas Instruments

IC REG BUCK 3.3V 3A DDPAK "Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 3A TO-263-6, D2PAK (5 Leads +...

 Datasheets

Technical Details

Max Input Voltage 60V
Max Operating Temperature 125°C
Max Output Current 3A
Min Input Voltage 4V
Min Operating Temperature -40°C
Mount Surface Mount
Number of Outputs 1
Number of Pins 5
Operating Supply Voltage 60V
Output Current 3A
Output Type Fixed
Output Voltage 3.3V
Packaging Tape & Reel (TR)
Radiation Hardening No
RoHS Non-Compliant
Switching Frequency 58kHz
Synchronous Rectifier No
Topology Buck

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Texas Instruments LM2576HVSX-3.3 | Rochester Electronics

Rochester Electronics

Datasheets

 Rochester Electronics
 Win Source
 Worldway Electronics

Lifecycle Status Indicator

   Unknown

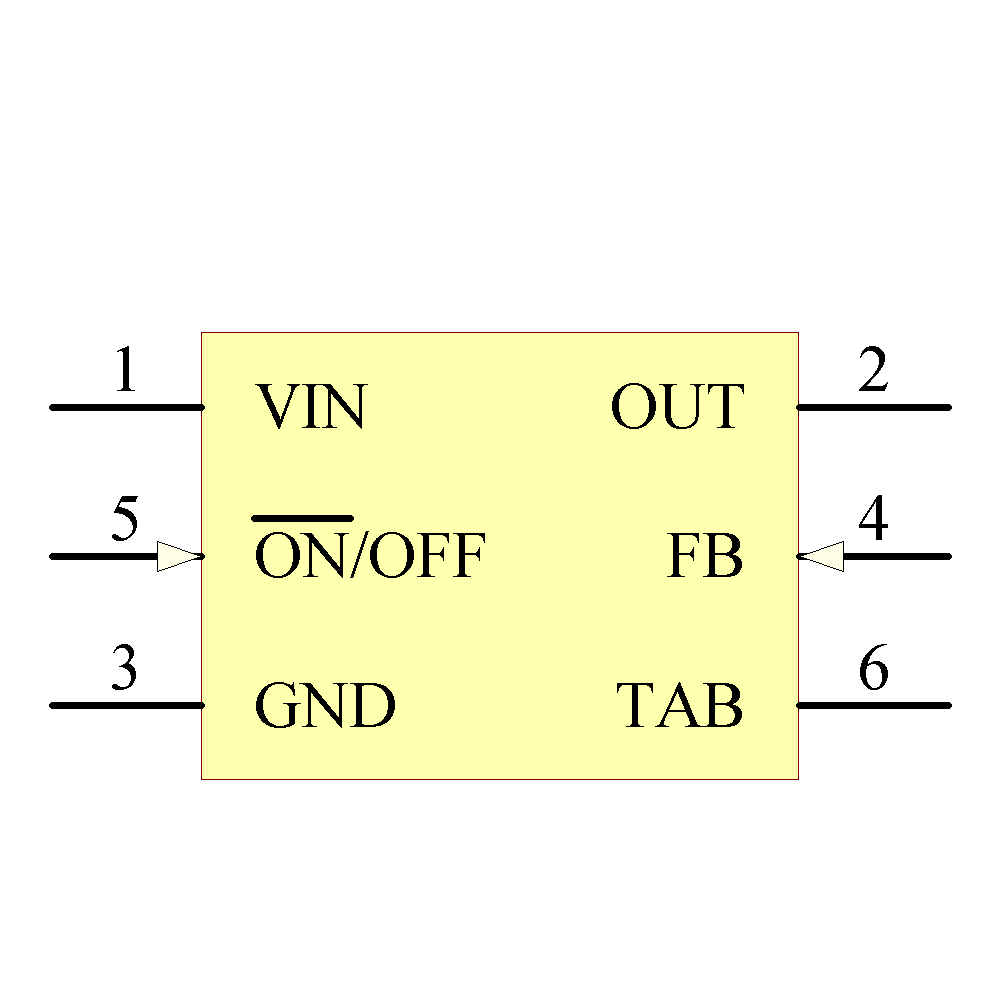

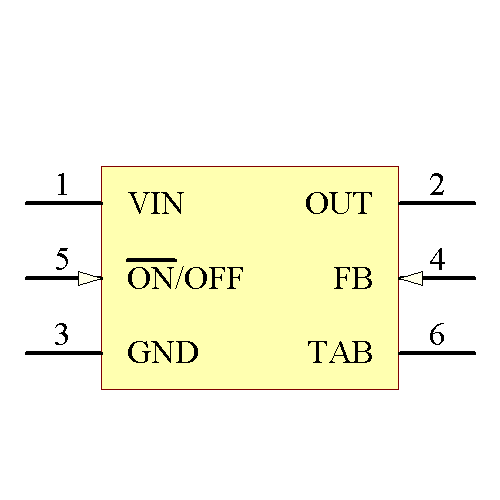

Symbol

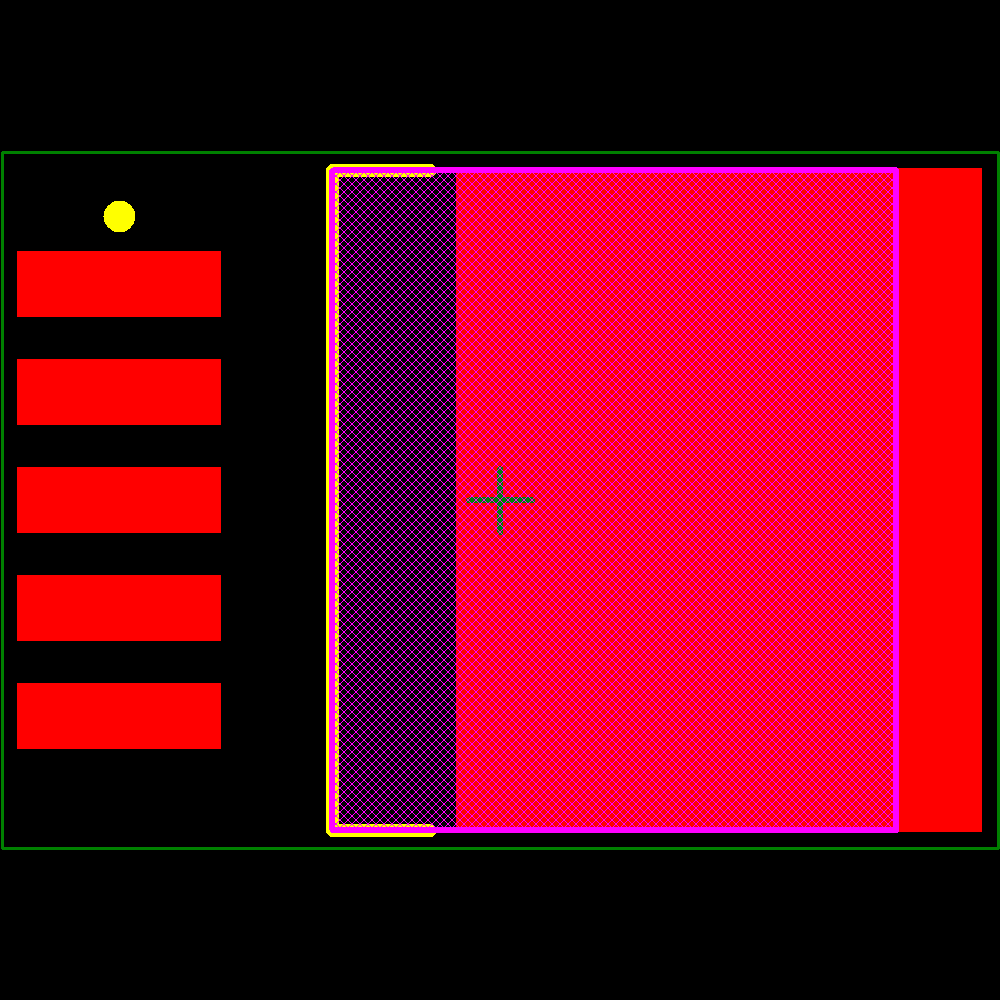

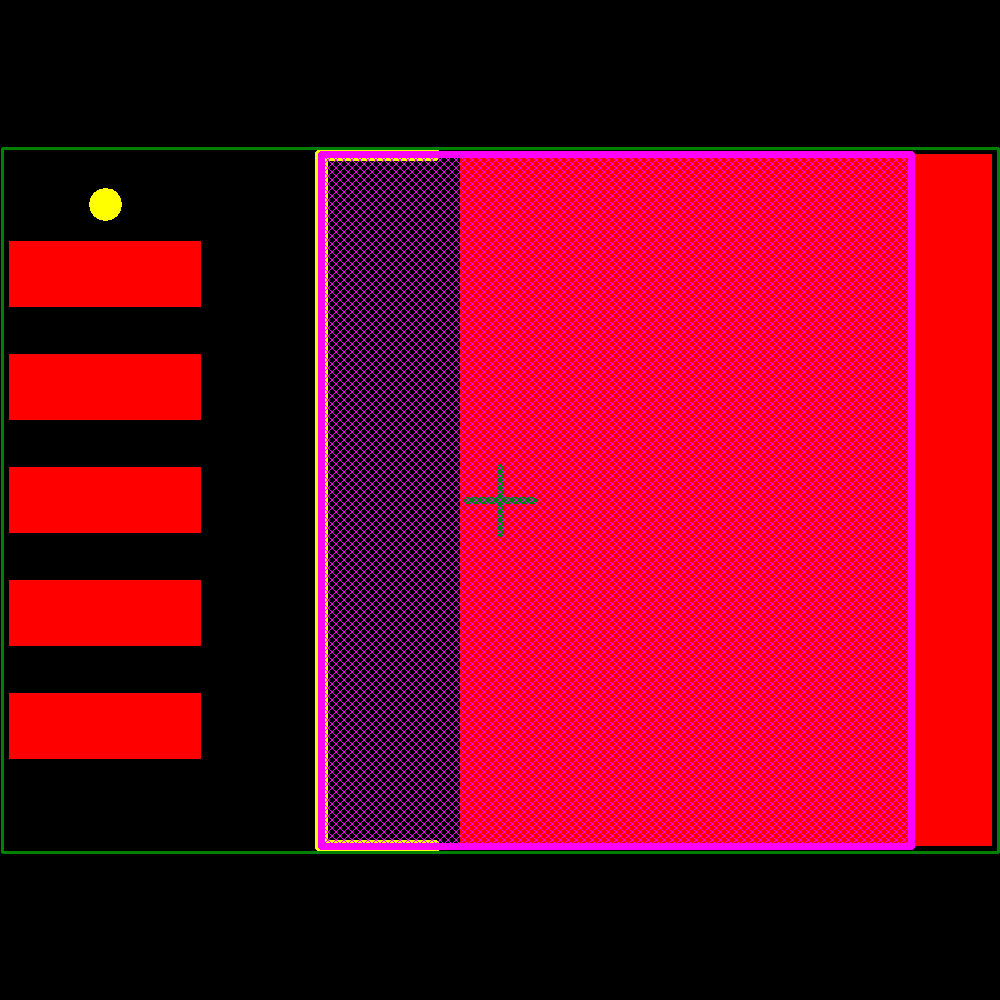

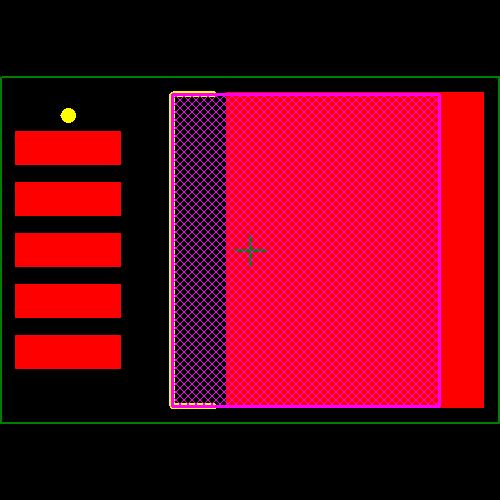

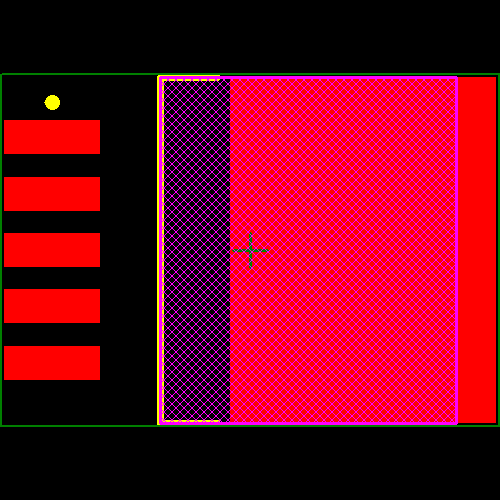

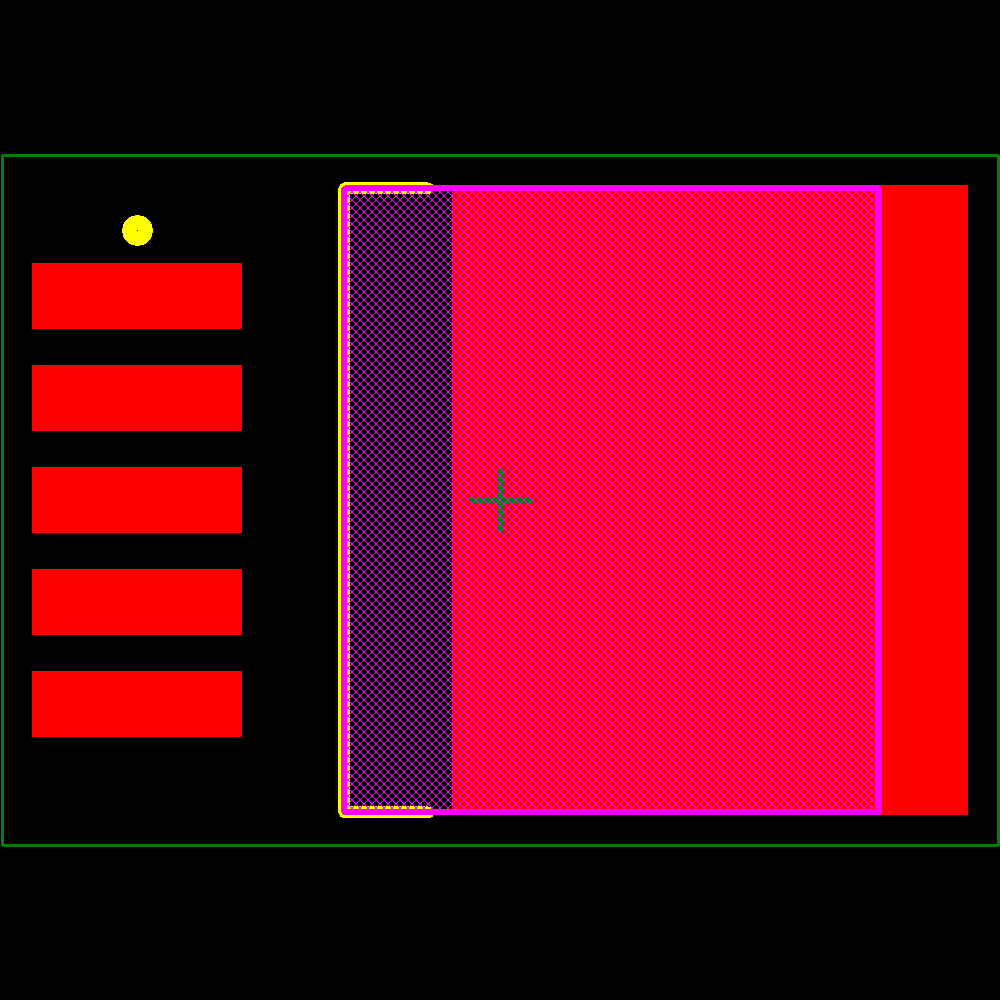

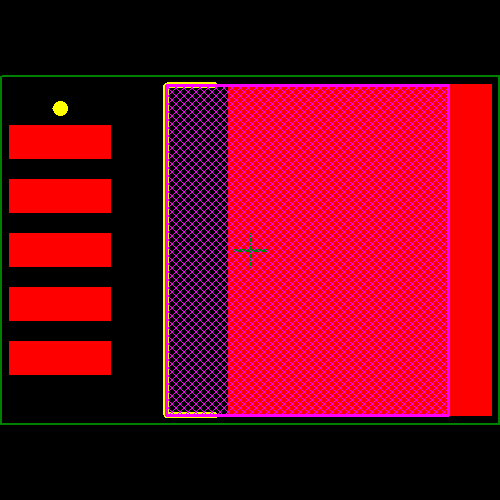

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
LM2576T-3.3
Obsolete
onsemi
LM2576D2T-3.3G
Obsolete
Texas Instruments
LM2576HVT-3.3
Obsolete
onsemi
LM2576TV-3.3
Obsolete
Micrel
LM2576-3.3BT
Unknown
Micrel
LM2576-3.3BU
Unknown
onsemi
LM2576D2TR4-3.3G
Production
Micrel
MIC4576-3.3BU
Unknown
onsemi
LM2576D2T-3.3
Obsolete
onsemi
LM2576D2TR4-3.3
Obsolete

See more alternatives See less alternatives
