LM2594HVMX-3.3 - Texas Instruments
SIMPLE SWITCHER Power Converter 150 kHz 0.5A Step-Down Voltage Regulator 8-SOIC -40 to 125
Technical Details
| Case/Package | SOIC |
| Efficiency | 80% |
| Max Input Voltage | 60V |
| Max Operating Temperature | 125°C |
| Max Output Current | 500mA |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Operating Supply Voltage | 60V |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Switching Frequency | 150kHz |
| Synchronous Rectifier | No |
| Topology | Buck |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

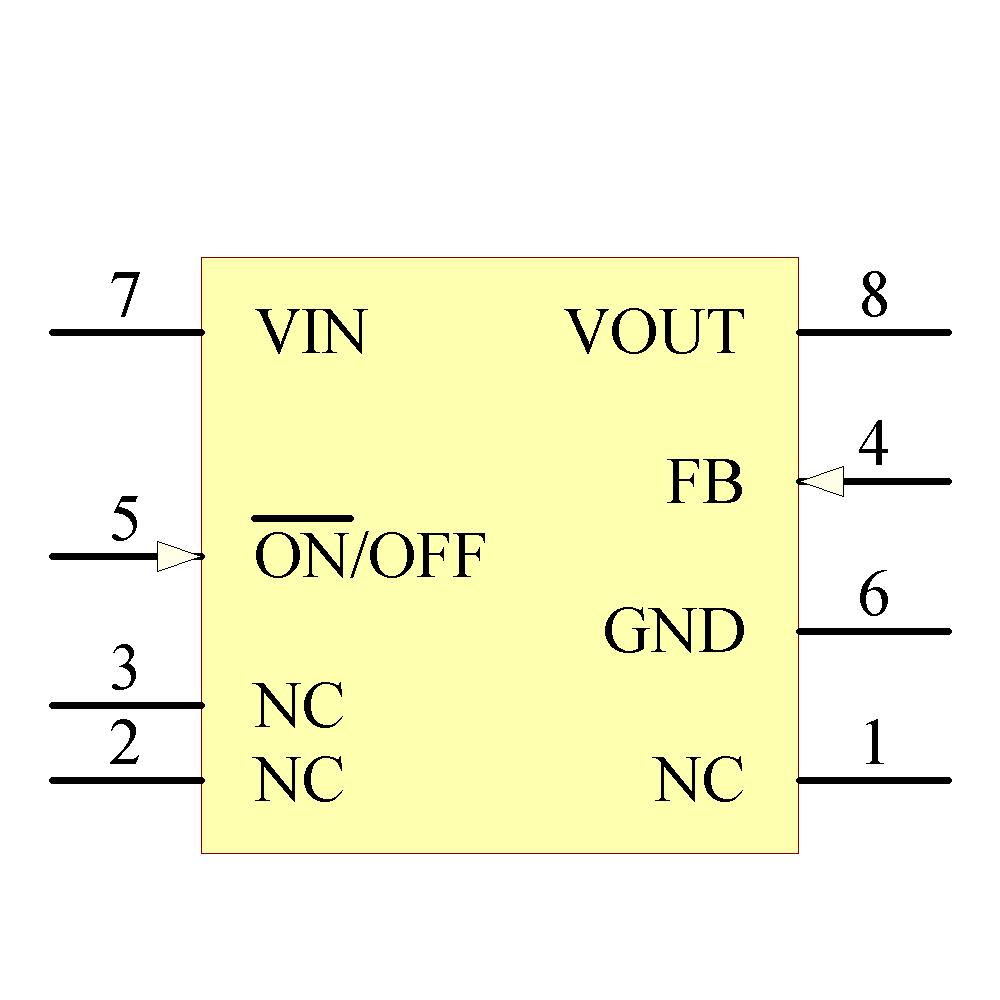

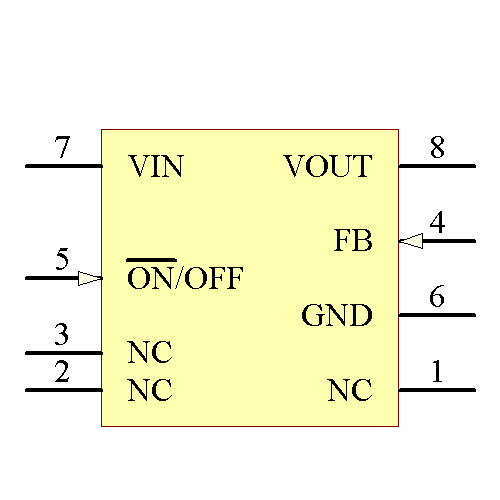

Images
Augswan
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Semtech | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| onsemi | Obsolete | ||
| Monolithic Power Systems | Production | ||
| ROHM | Obsolete | ||
| Analog Devices | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete |
