LM2753SD/NOPB - Texas Instruments

High power switched capacitor Voltage Converter/flash LED driver 10-WSON -40 to 85

Technical Details

Frequency	725kHz
Height	800µm
Lead Free	Lead Free
Length	3mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Supply Current	80µA
Max Supply Voltage	5.5V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Mount	Surface Mount
Number of Outputs	1
Number of Pins	10
Number of Segments	1
Output Current	250mA
Output Voltage	5V
Packaging	Cut Tape
Quiescent Current	60µA
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Switching Frequency	725kHz
Thickness	750µm
Topology	Boost, Charge Pump
Touchscreen	Capacitive
Width	3mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

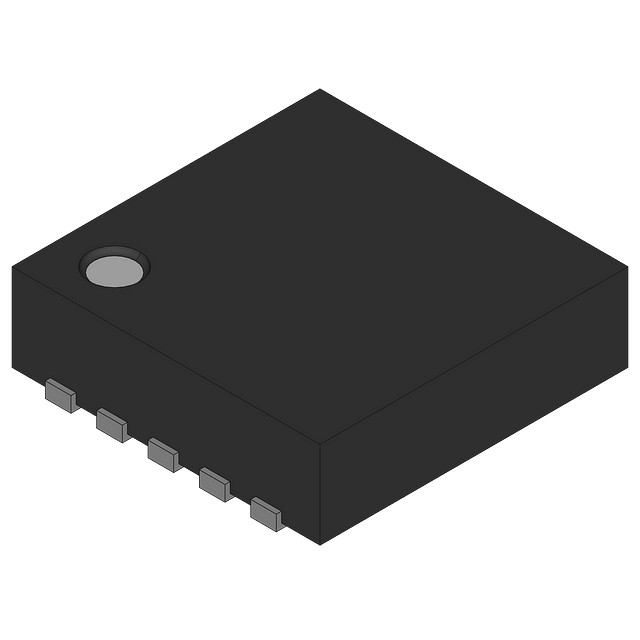

Texas Instruments LM2753SD/NOPB | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

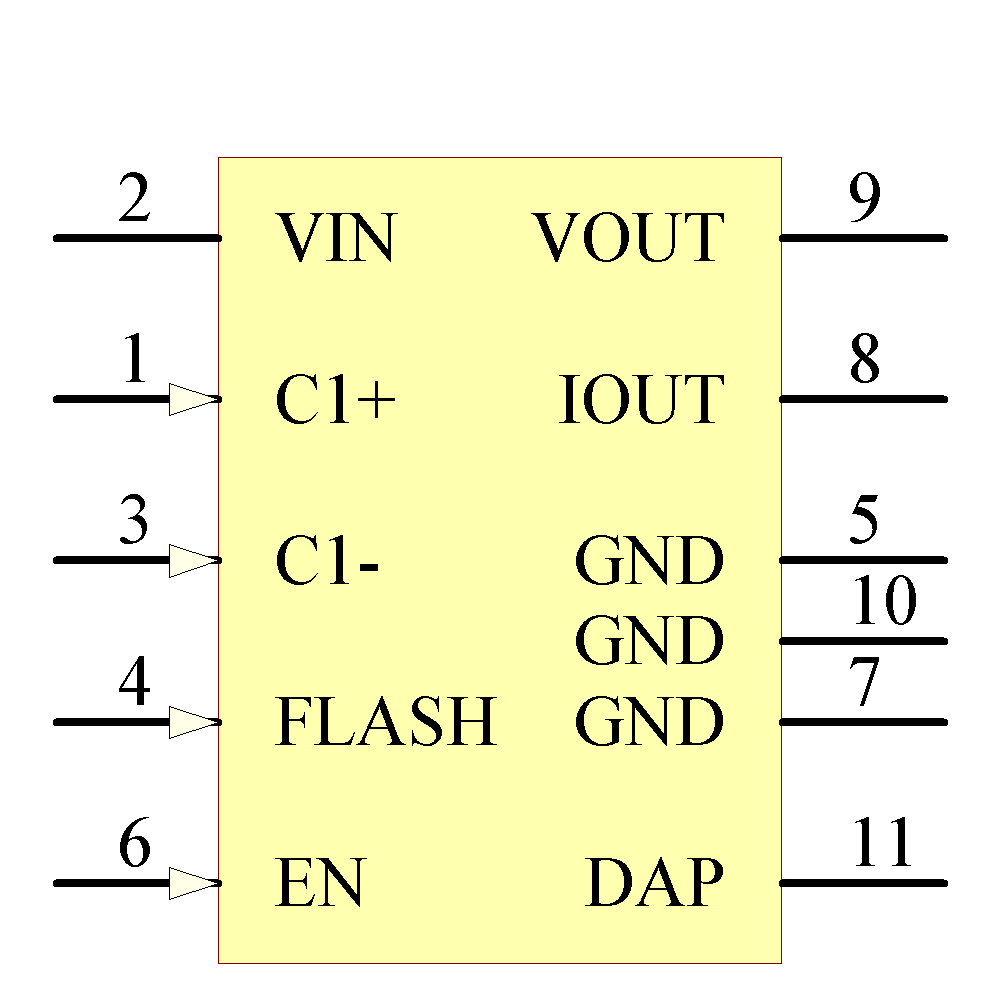

LM2753SD/NOPB Symbol - Texas Instruments

LM2753SD/NOPB Symbol - Texas Instruments

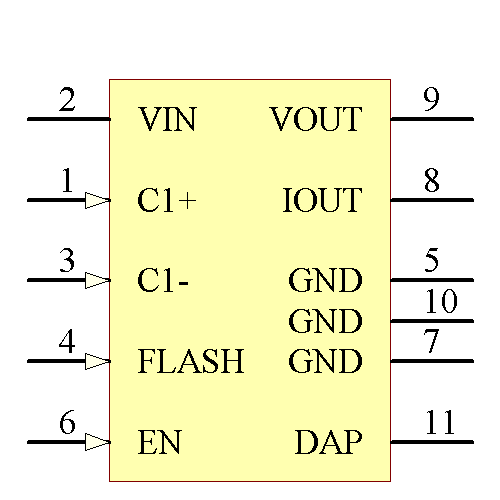

LM2753SD/NOPB Symbol - Texas Instruments

LM2753SD/NOPB Symbol - Texas Instruments

‹ ›

Footprint

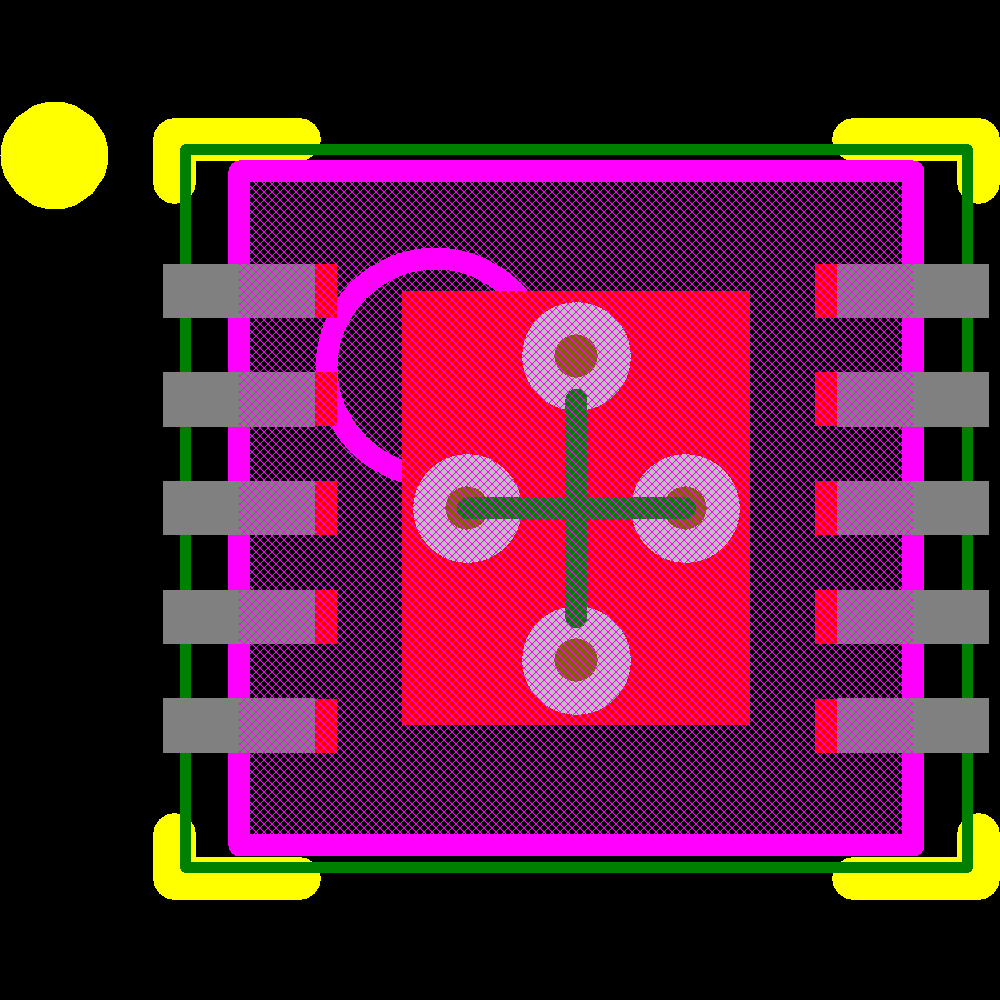

LM2753SD/NOPB Footprint - Texas Instruments

LM2753SD/NOPB Footprint - Texas Instruments

LM2753SD/NOPB Footprint - Texas Instruments

LM2753SD/NOPB Footprint - Texas Instruments

‹ ›
