LM2756TMX/NOPB - Texas Instruments
Multi-display inductorless LED driver with 32 exponential dimming steps in micro SMD 20-DSBGA -30 to 85
Technical Details
| Features | I²C |
| Frequency | 1.6MHz |
| Height | 675µm |
| Lead Free | Lead Free |
| Length | 0m |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -30°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 2.1mA |
| Number of Channels | 8 |
| Number of Outputs | 8 |
| Number of Pins | 20 |
| Number of Segments | 8 |
| Output Voltage | 4V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 2.1mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 1.3MHz |
| Thickness | 420µm |
| Topology | Boost |
| Touchscreen | Capacitive |
| Width | 0m |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

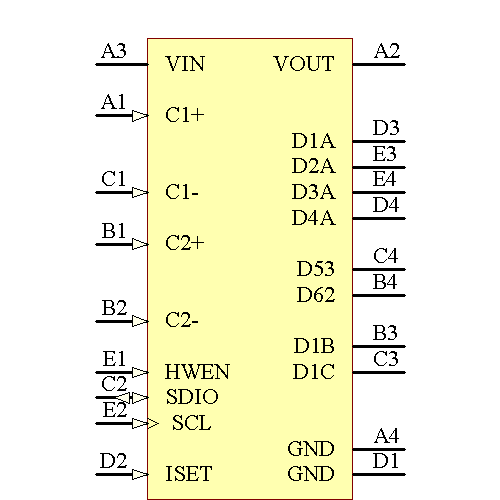

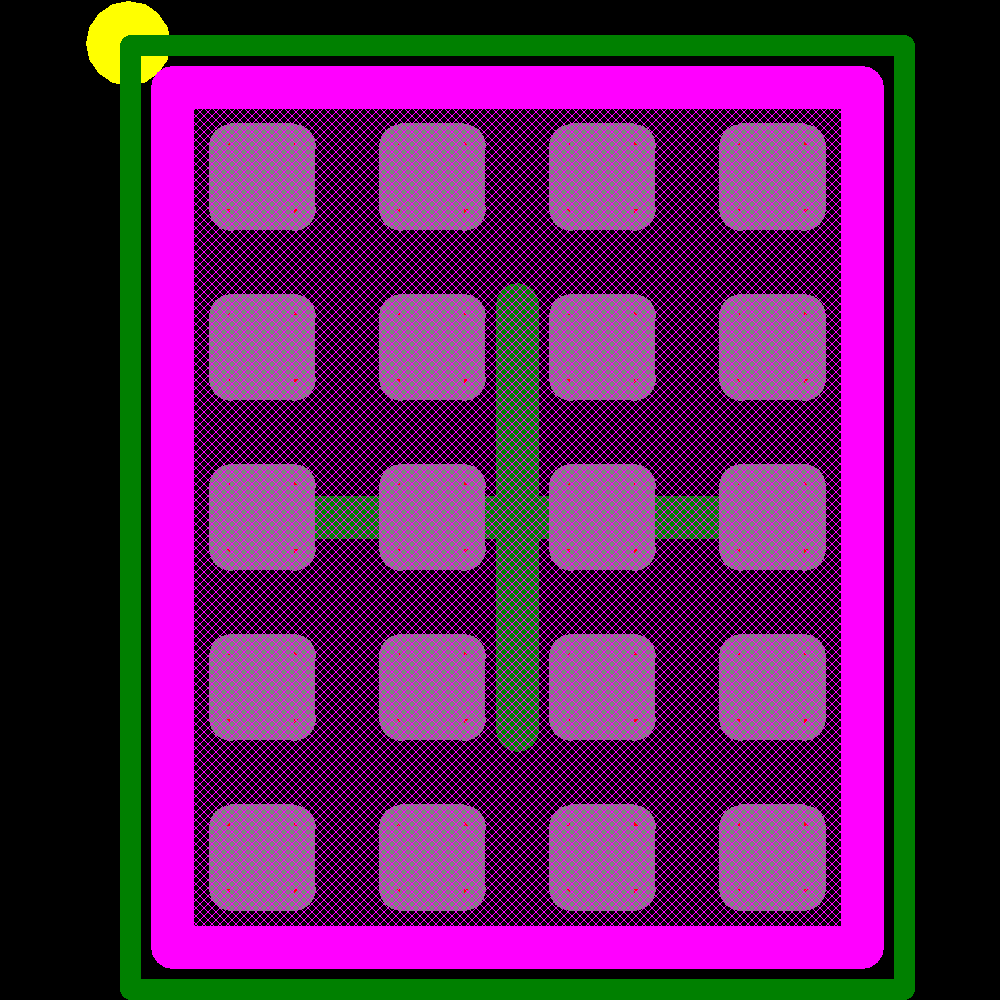

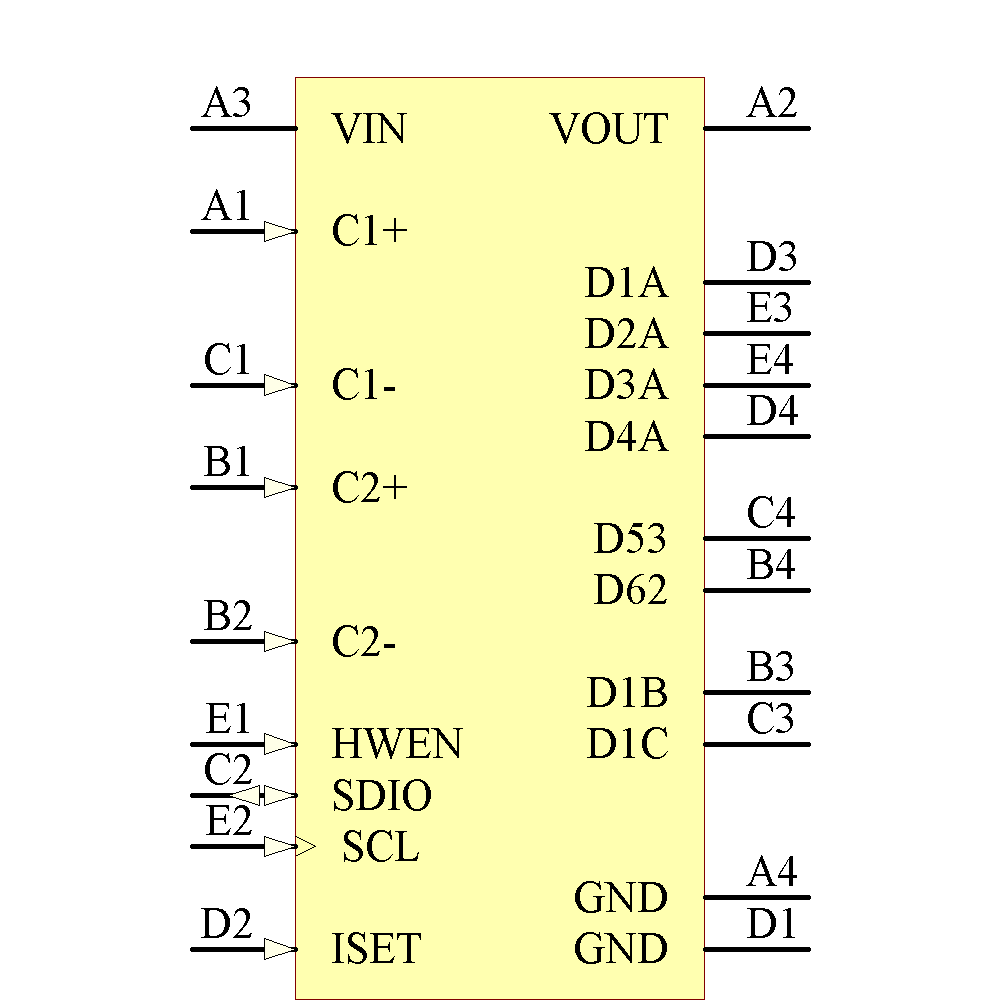

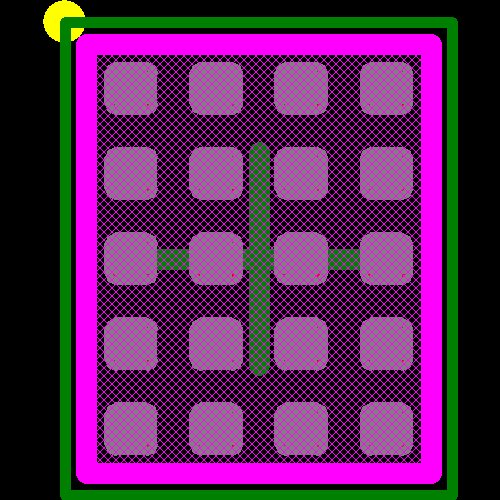

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | NRND | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Analog Devices | Production | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 1.4868 | |||||||
| Texas Instruments |
US: 8070
|
$ | 2.121 | 2.121 | 2.121 | 1.859 | 1.05 | 1.05 | ||
