LM2759SD/NOPB - Texas Instruments
1A switched capacitor flash LED driver with I2C compatible interface 12-WSON -30 to 85
Technical Details
| Ambient Temperature Range High | 85°C |
| Features | I²C |
| Frequency | 1.3MHz |
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 85°C |
| Max Supply Current | 7mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -30°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 12 |
| Number of Segments | 1 |
| Output Current | 1A |
| Output Voltage | 5.1V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 3.4mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Switching Frequency | 1MHz |
| Thickness | 750µm |
| Topology | Charge Pump |
| Touchscreen | Capacitive |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

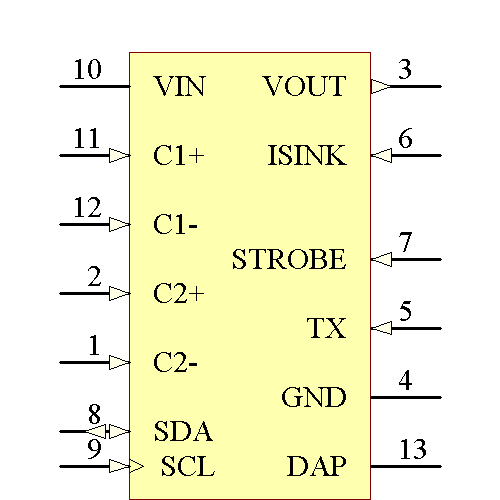

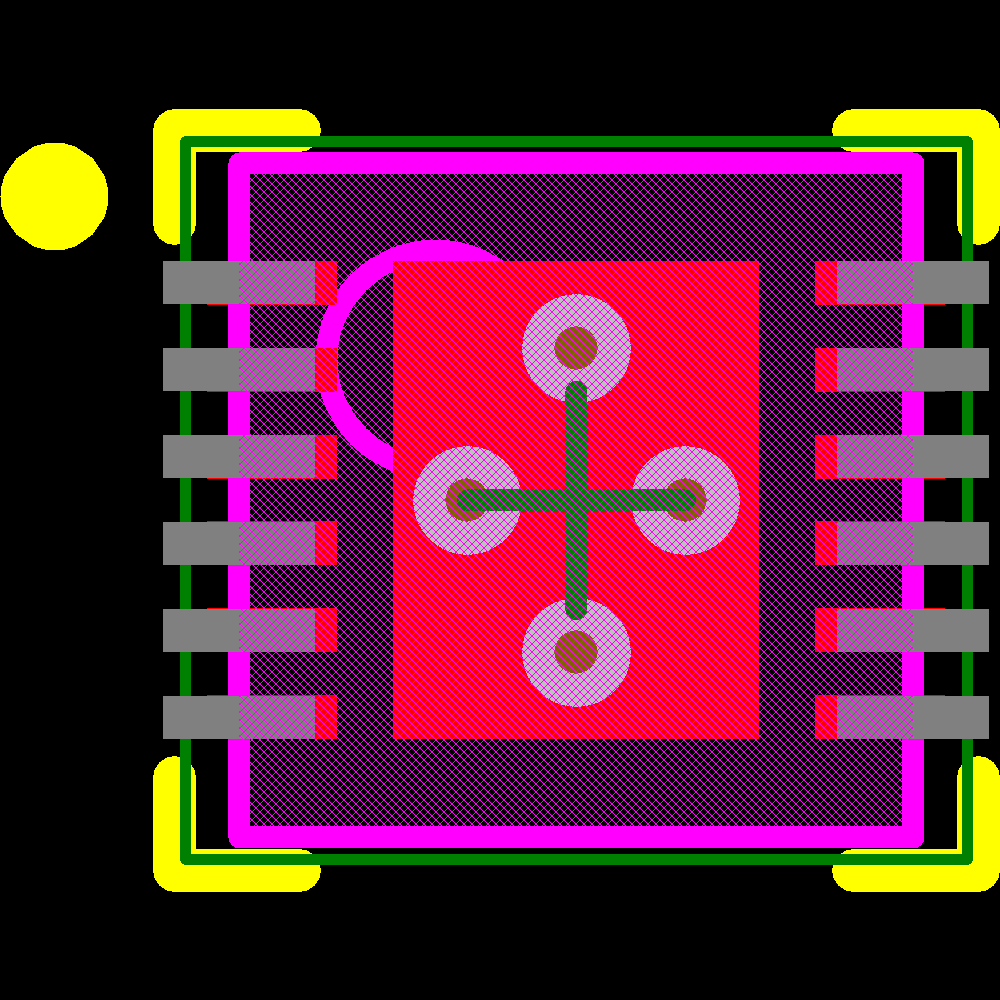

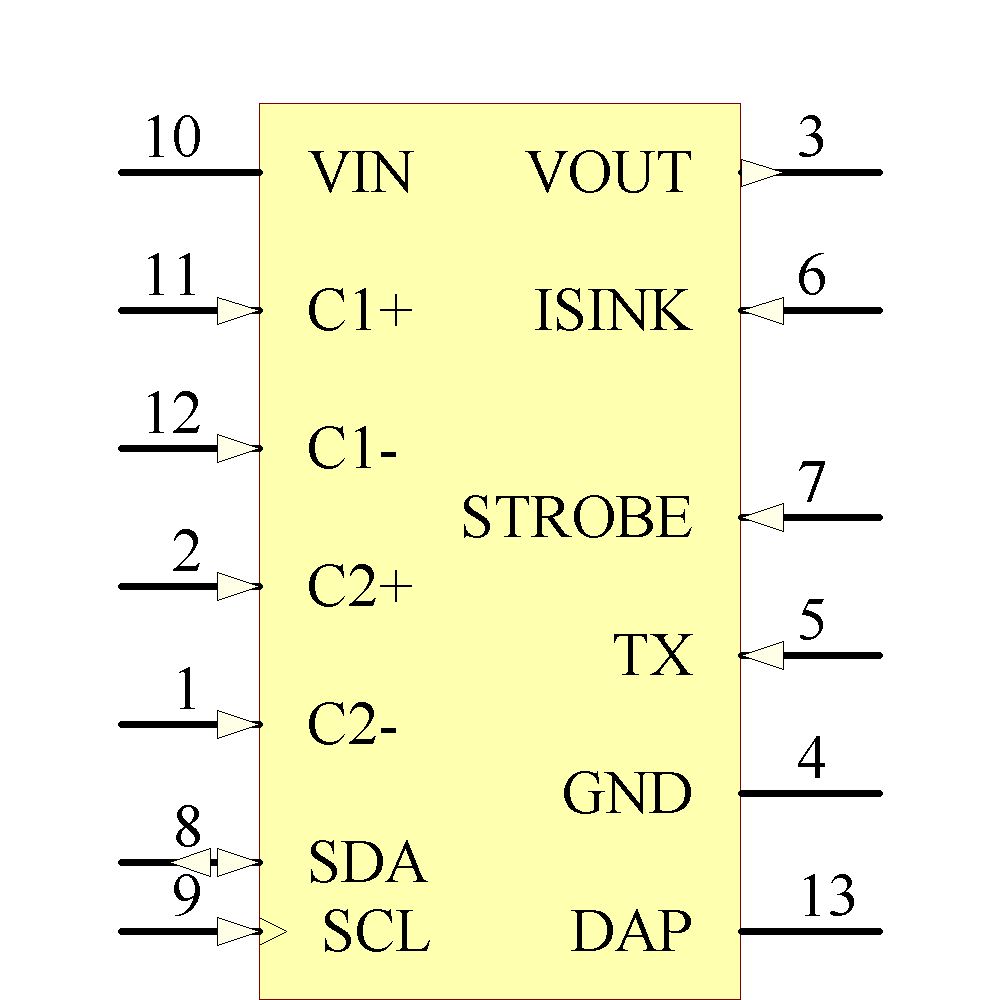

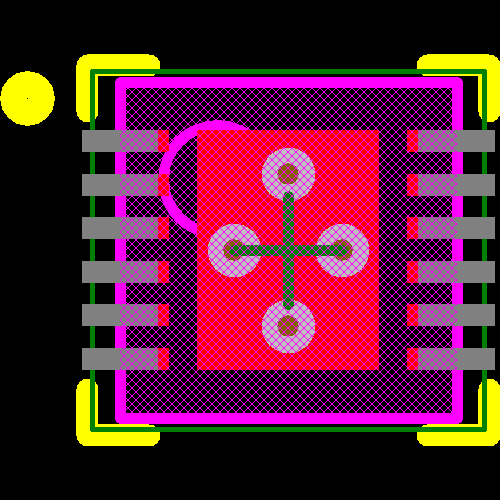

Images
