LM2759SDX/NOPB - Texas Instruments
1A switched capacitor flash LED driver with I2C compatible interface 12-WSON -30 to 85
Technical Details
| Features | I²C |
| Frequency | 1.3MHz |
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -30°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 12 |
| Number of Segments | 1 |
| Output Current | 1A |
| Output Voltage | 4V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 3.4mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 1MHz |
| Thickness | 750µm |
| Topology | Charge Pump |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

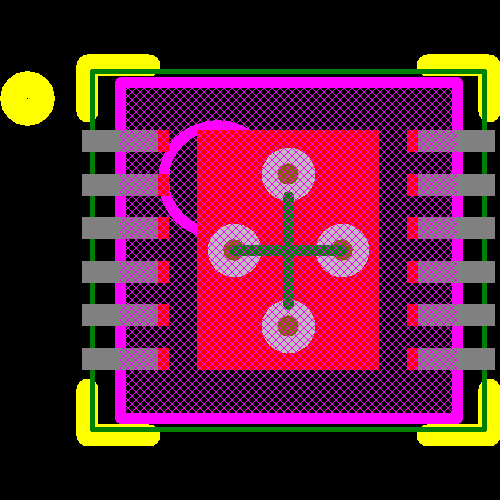

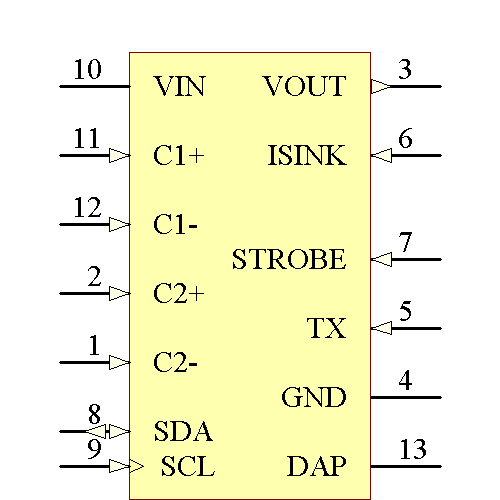

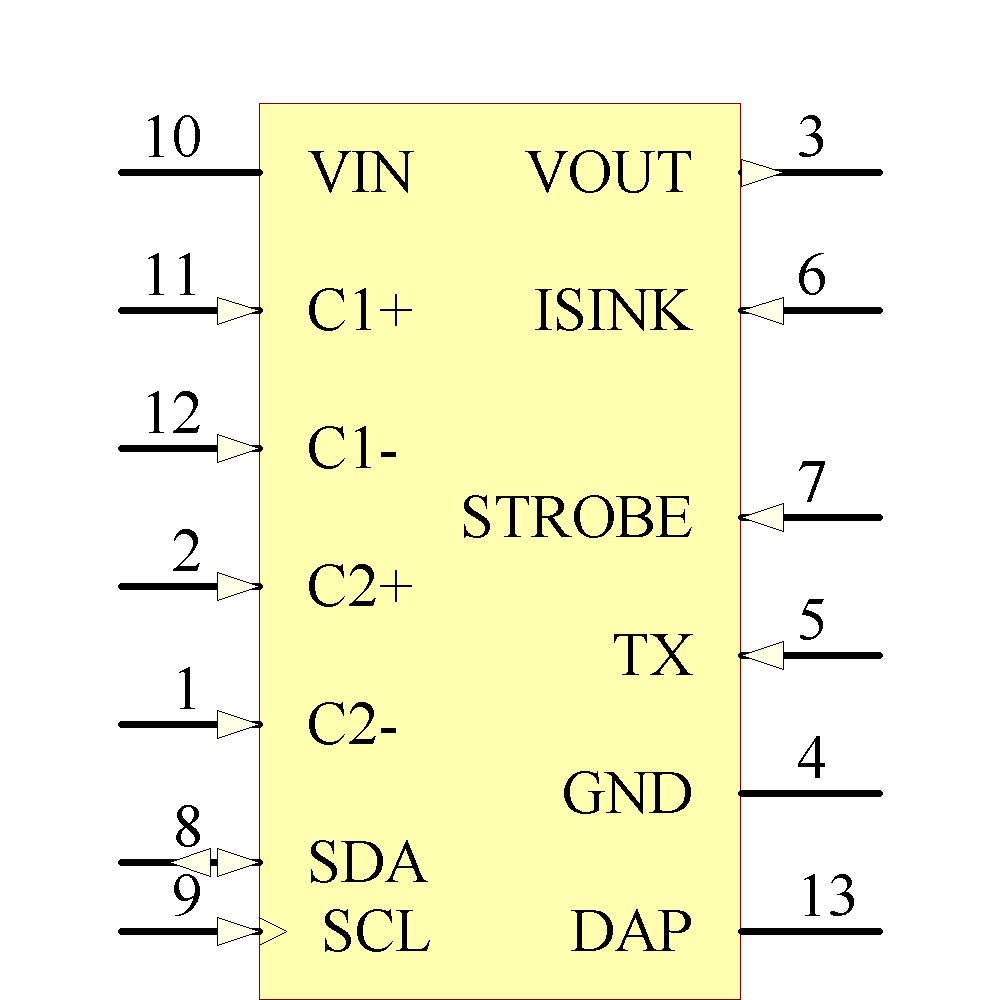

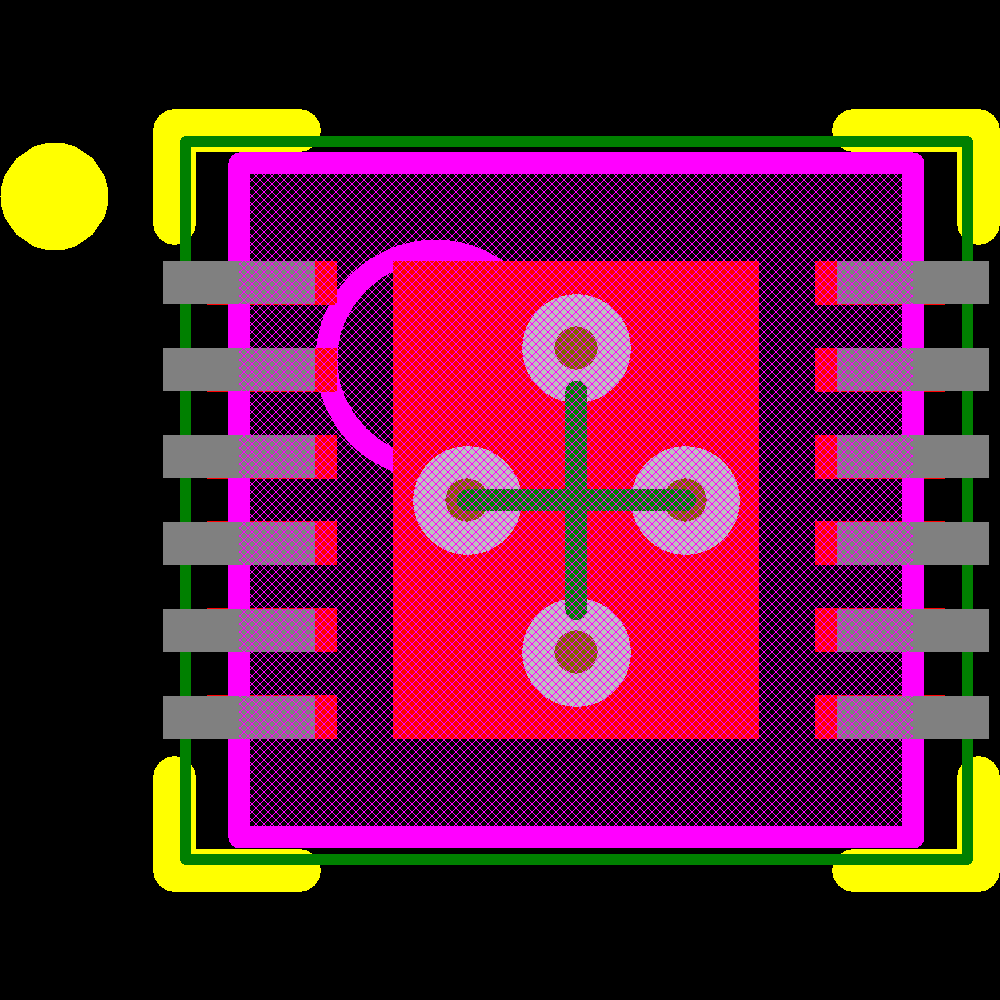

Images
Texas Instruments
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 0.8231 | |||||||
| Arrow Electronics |
US: 0
|
$ | 0.8268 | |||||||
| Texas Instruments |
US: 17989
|
$ | 1.301 | 1.301 | 1.301 | 1.075 | 0.581 | 0.581 | ||
