LM27952SD/NOPB - Texas Instruments
Tape & Reel (TR) LM27952 Switched Capacitor (Charge Pump) PWM led driver 4mm 30mA 5.5V 750kHz
Technical Details
| Contact Plating | Tin |
| Frequency | 750kHz |
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Supply Current | 1.7mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 1.3mA |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Number of Pins | 14 |
| Number of Segments | 4 |
| Output Current | 120mA |
| Output Voltage | 3.9V |
| Packaging | Cut Tape |
| Quiescent Current | 1.3mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 750kHz |
| Thickness | 800µm |
| Topology | Boost |
| Touchscreen | Capacitive |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

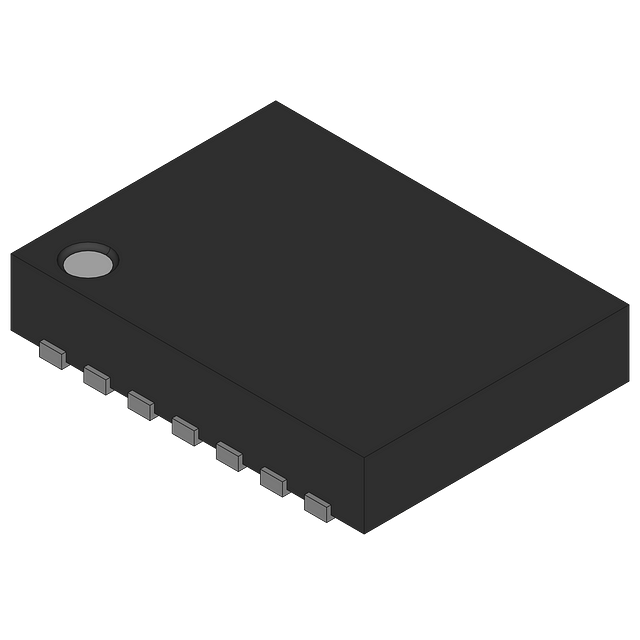

Images
