LM27966SQ/NOPB - Texas Instruments
White LED driver with I2C compatible interface 24-WQFN -30 to 85
Technical Details
| Features | I²C |
| Frequency | 1.57MHz |
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Supply Current | 3.32mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -30°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 2.9mA |
| Number of Channels | 6 |
| Number of Outputs | 6 |
| Number of Pins | 24 |
| Number of Segments | 6 |
| Output Current | 180mA |
| Output Voltage | 4V |
| Packaging | Cut Tape |
| Quiescent Current | 2.9mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Switching Frequency | 1.27MHz |
| Thickness | 750µm |
| Topology | Boost |
| Touchscreen | Capacitive |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

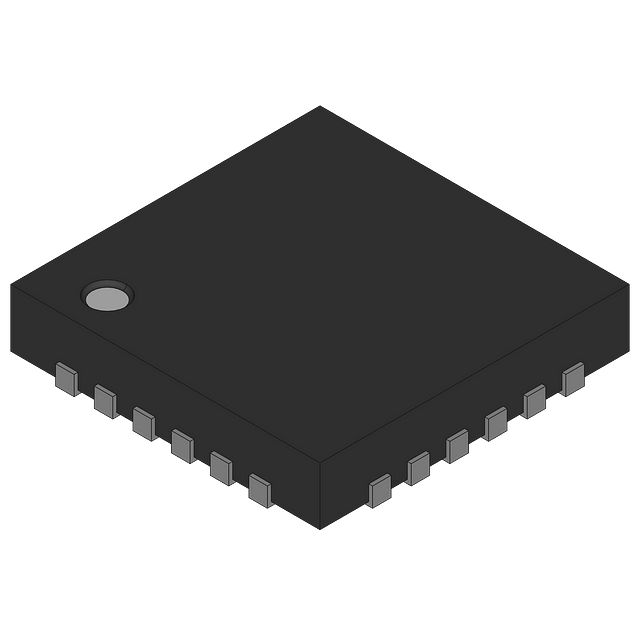

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Microchip | Unknown | ||
| Texas Instruments | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown |
