LM3401MMX/NOPB - Texas Instruments
Hysteretic PFET controller for high power LED Drive 8-VSSOP -40 to 125
Technical Details
| Case/Package | VSSOP |
| Contact Plating | Tin |
| Frequency | 1.5MHz |
| Height | 0m |
| High Level Output Current | 20µA |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Low Level Output Current | 5.5µA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 660mW |
| Max Supply Current | 1.05mA |
| Max Supply Voltage | 35V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Segments | 1 |
| Output Current | 1A |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 660mW |
| Quiescent Current | 1.05mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 1.5MHz |
| Thickness | 970µm |
| Topology | Buck |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

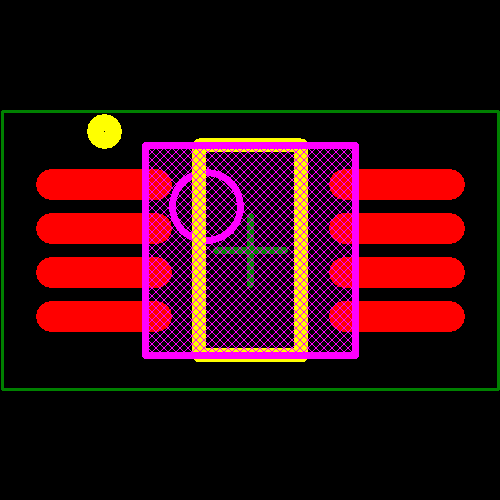

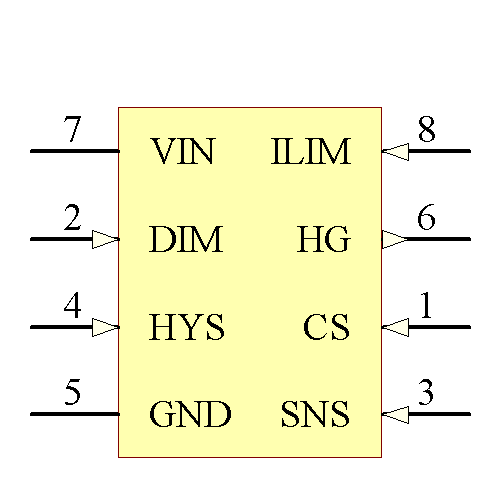

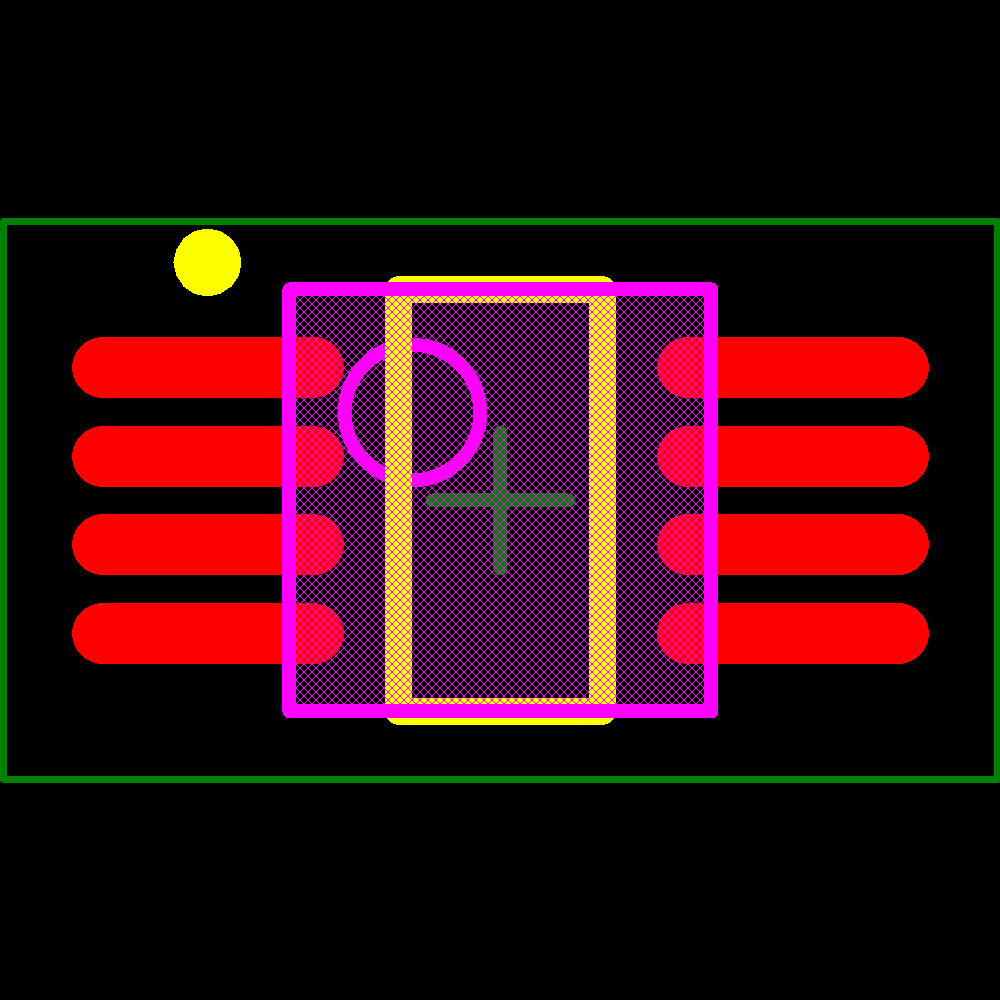

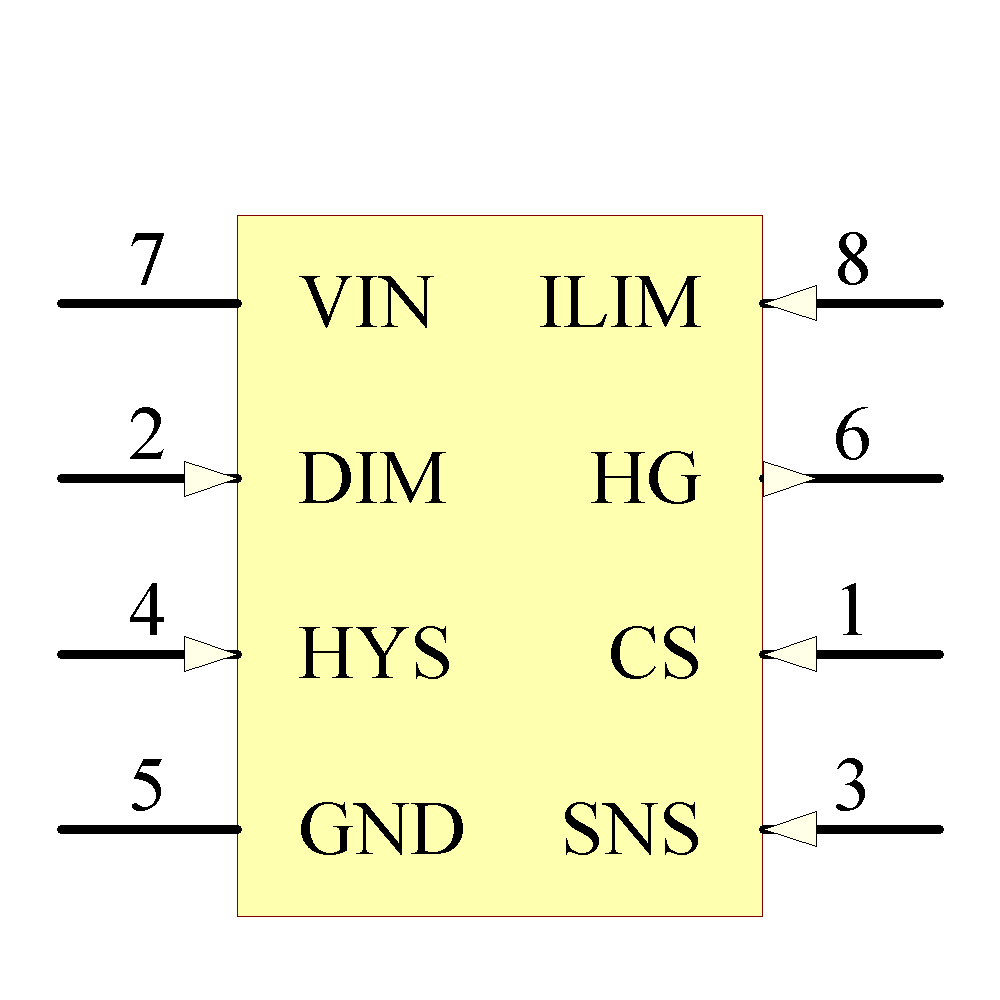

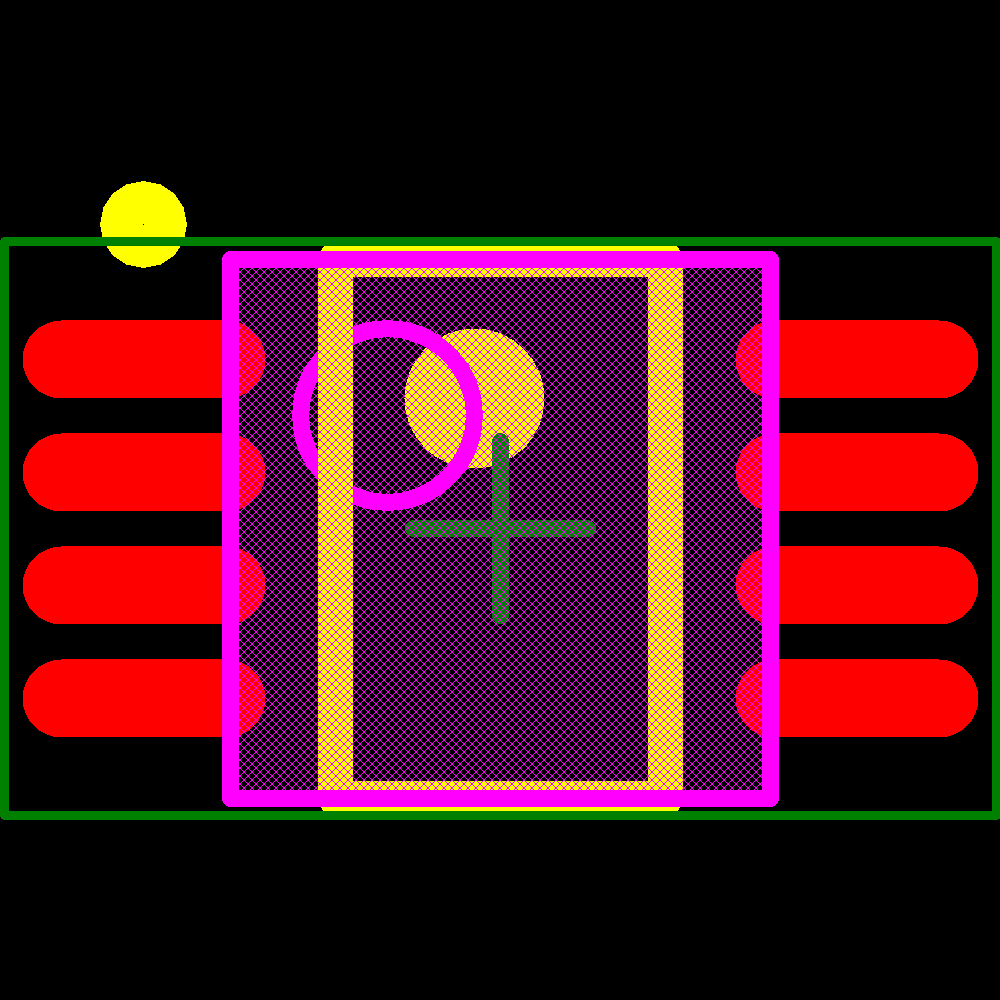

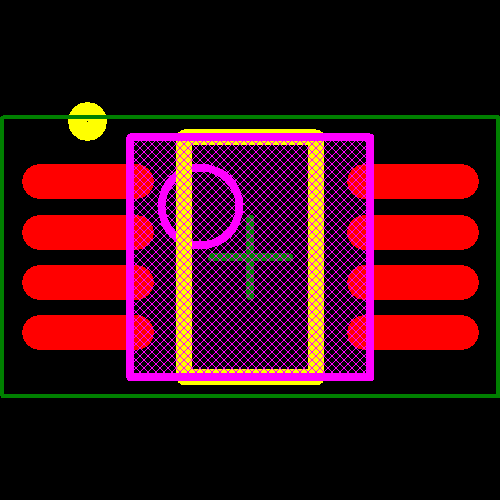

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Microchip | Production | ||
| Renesas | Obsolete | ||
| Analog Devices | Unknown | ||
| Diodes Inc. | Obsolete | ||
| Analog Devices | Unknown | ||
| Microchip | Production | ||
| Diodes Inc. | Obsolete | ||
| Elantec | Obsolete |
