Integrated Circuits (ICs)  >  Power Management ICs  >  LED Drivers

Texas Instruments - LM3406HVMHX/NOPB

LM3406HVMHX/NOPB - Texas Instruments

75V 1.5A constant current buck LED driver 14-HTSSOP -40 to 125

 Datasheets

Technical Details

Case/Package HTSSOP EP
Contact Plating Tin
Efficiency 96%
Frequency 1MHz
Height 1.2mm
Lead Free Lead Free
Length 5mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Input Voltage 75V
Max Operating Temperature 125°C
Max Output Current 1.5A
Max Supply Current 1.2mA
Max Supply Voltage 75V
Min Input Voltage 6V
Min Operating Temperature -40°C
Min Supply Voltage 6V
Mount Surface Mount
Number of Outputs 1
Number of Pins 14
Output Current 1.5A
Output Type Adjustable
Quiescent Current 1.2mA
Radiation Hardening No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85
Switching Frequency 1MHz
Thickness 1mm
Topology Buck
Width 4.4mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Texas Instruments LM3406HVMHX/NOPB | Texas Instruments

Texas Instruments

Datasheets

 DigiKey
 DigiKey
 DigiKey

Lifecycle Status Indicator

   Production

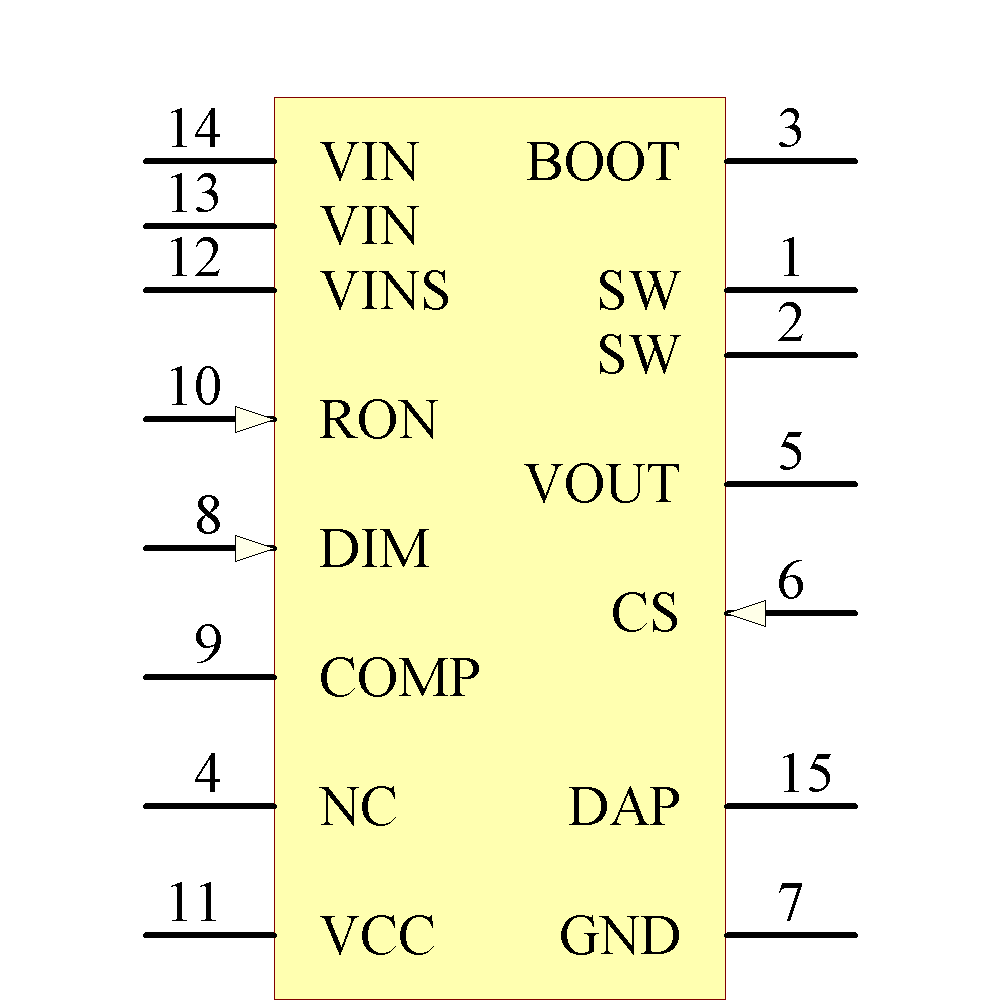

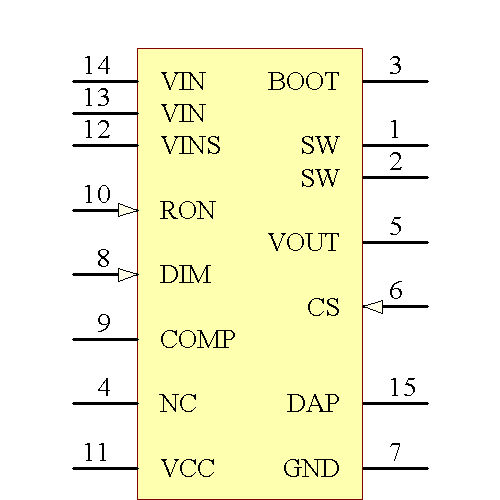

Symbol

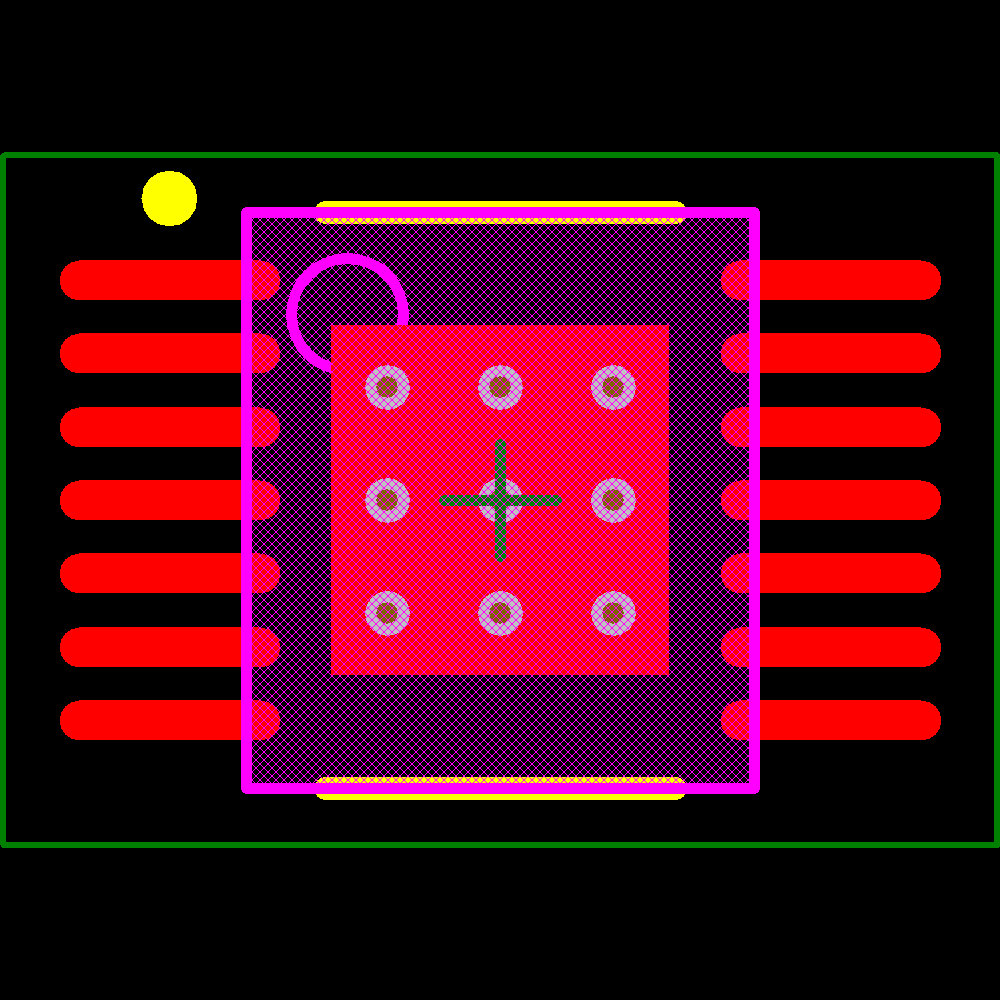

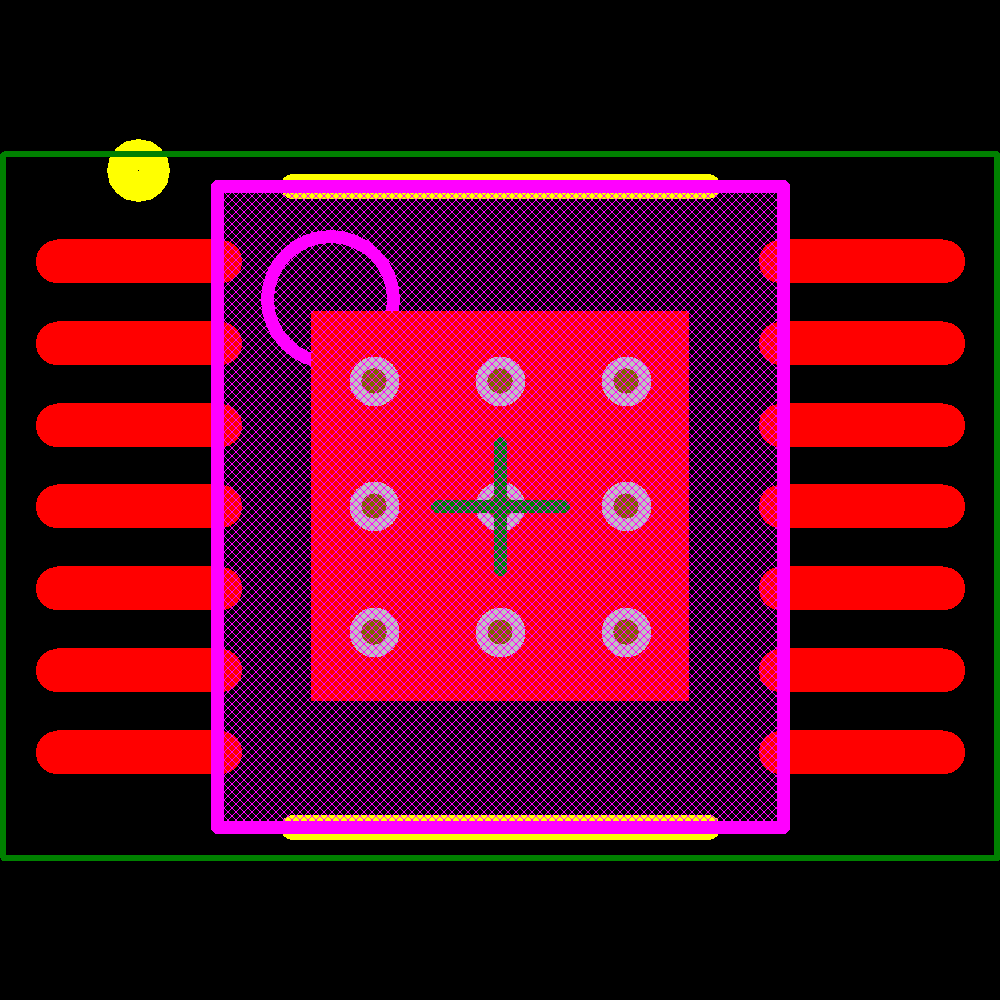

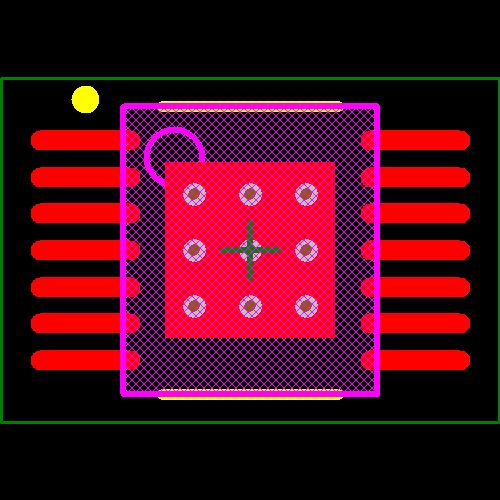

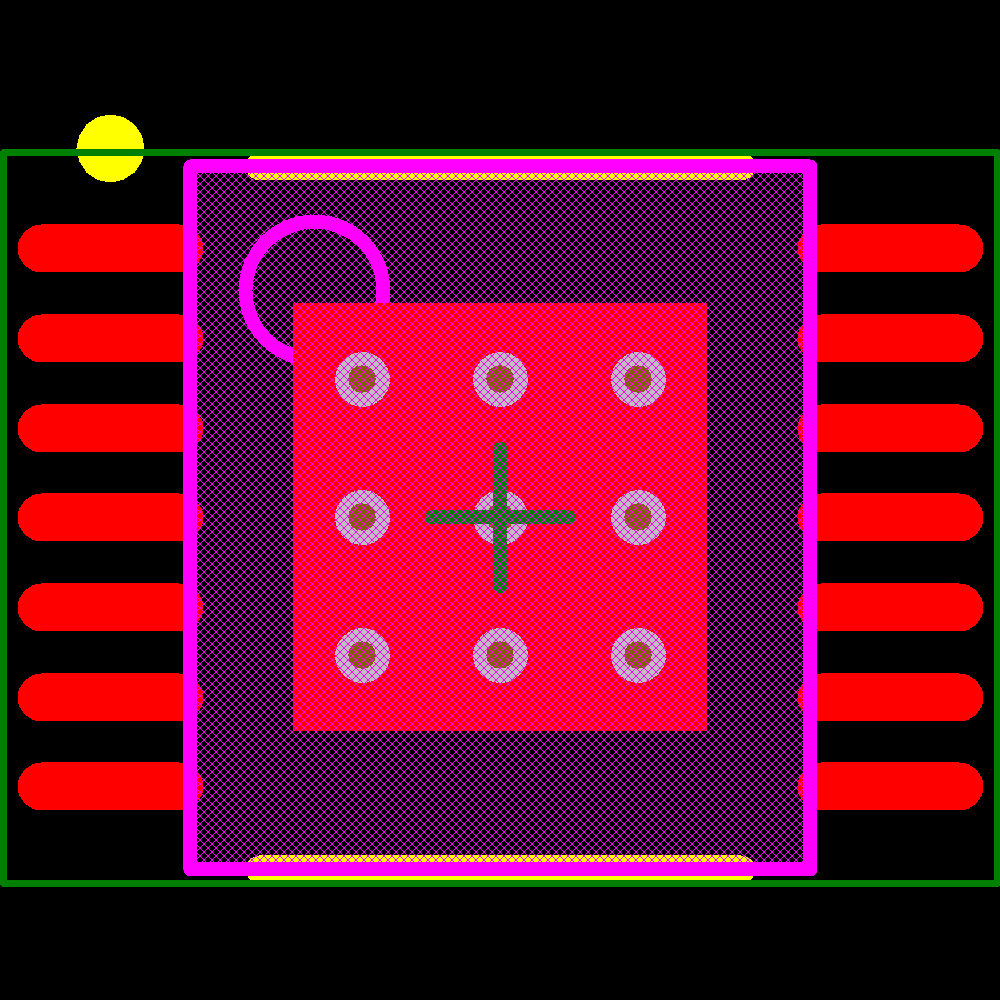

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Semtech
SC470ITSTRT
Obsolete
Texas Instruments
UCC35701PWG4
Unknown
Texas Instruments
UCC35702PWTR
Unknown
Texas Instruments
LM2853MHX-0.8/NOPB
Unknown
Texas Instruments
UCC28231PWG4
Unknown
Exar
SP6128ACY-L
Obsolete
Renesas
ISL6522CV-T
Obsolete
Analog Devices
ADP3000ARU-REEL
Unknown
Texas Instruments
UCC35702PWTRG4
Unknown
ROHM
BA9700AFV
Obsolete

See more alternatives See less alternatives
