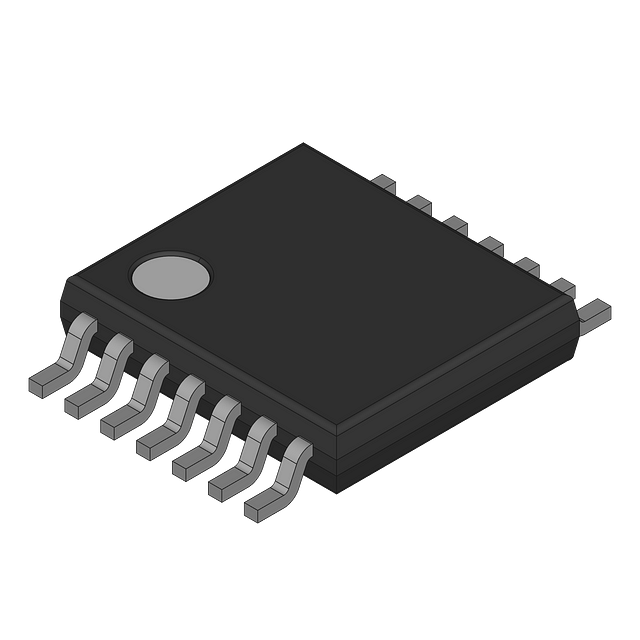

LM3406MHX/NOPB - Texas Instruments
42-V 1.5-A constant current buck LED driver 14-HTSSOP -40 to 125
Technical Details
| Case/Package | TSSOP |
| Contact Plating | Tin |
| Dimming | PWM |
| Efficiency | 96% |
| Frequency | 1MHz |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 42V |
| Max Operating Temperature | 125°C |
| Max Output Current | 1.5A |
| Max Supply Voltage | 42V |
| Min Input Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Output Current | 1.5A |
| Output Current per Channel | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 42V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 1.2mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 1MHz |
| Thickness | 1mm |
| Topology | Buck |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Semtech | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Exar | Obsolete | ||
| Renesas | Obsolete | ||
| Analog Devices | Unknown | ||
| Texas Instruments | Unknown | ||
| ROHM | Obsolete |
