LM3409MYX/NOPB - Texas Instruments

42-V PFET buck controller for high power LED drives 10-HVSSOP -40 to 125

Technical Details

Case/Package	MSOP
Contact Plating	Tin
Height	1.1mm
Lead Free	Lead Free
Length	3mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	125°C
Max Supply Voltage	42V
Min Operating Temperature	-40°C
Min Supply Voltage	6V
Mount	Surface Mount
Number of Outputs	1
Number of Pins	10
Packaging	Tape & Reel (TR)
Quiescent Current	2mA
Radiation Hardening	No
RoHS	Compliant
Thickness	1.02mm
Topology	Buck
Width	3mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Texas Instruments LM3409MYX/NOPB | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

Symbol

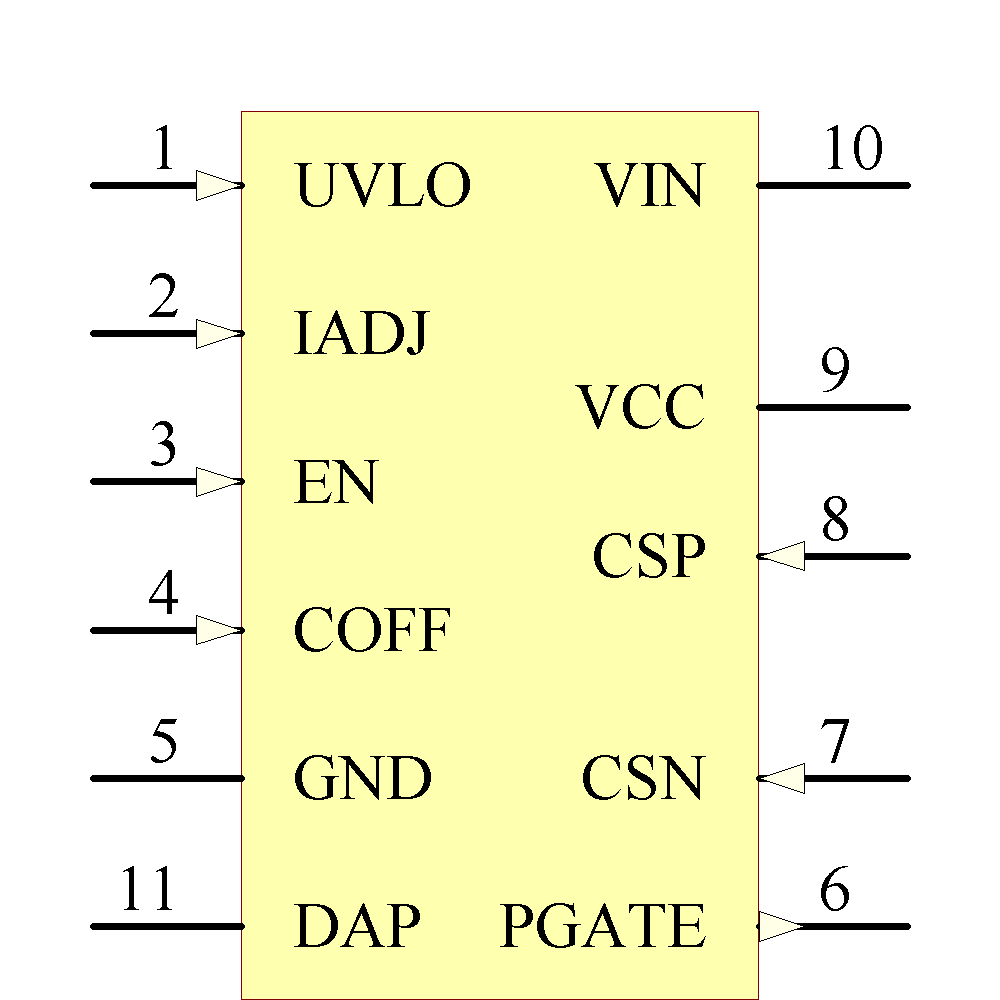

LM3409MYX/NOPB Symbol - Texas Instruments

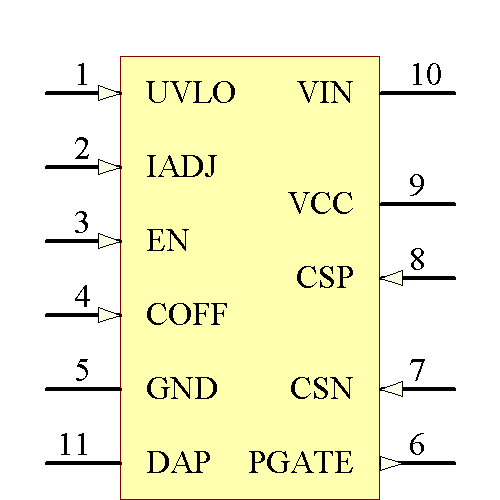

LM3409MYX/NOPB Symbol - Texas Instruments

LM3409MYX/NOPB Symbol - Texas Instruments

LM3409MYX/NOPB Symbol - Texas Instruments

‹ ›

Footprint

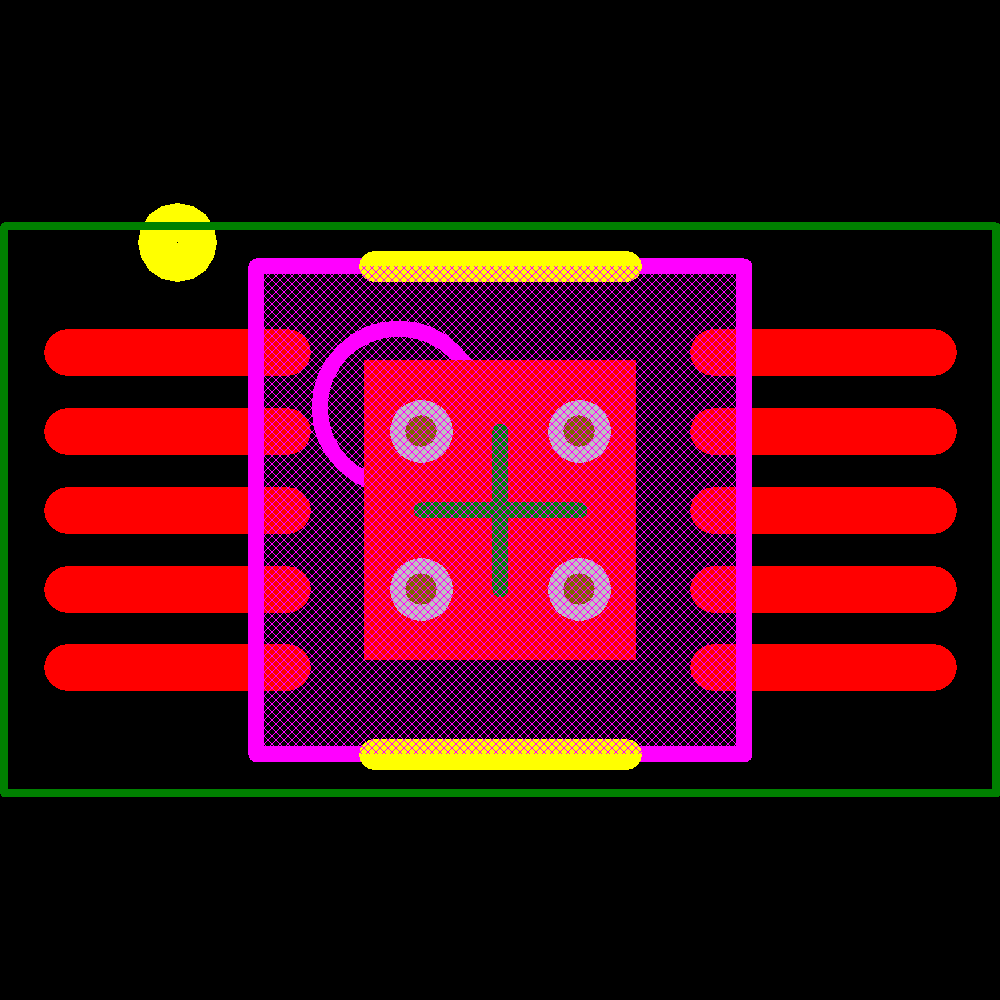

LM3409MYX/NOPB Footprint - Texas Instruments

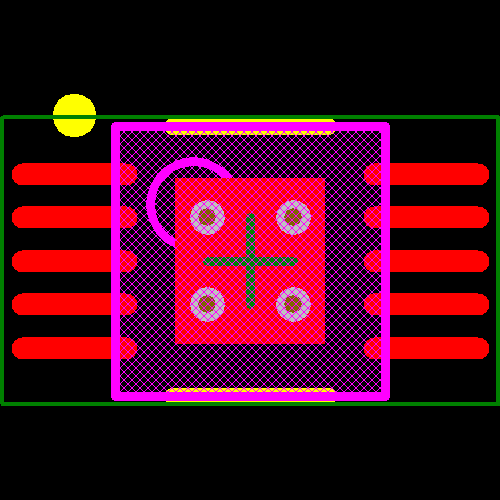

LM3409MYX/NOPB Footprint - Texas Instruments

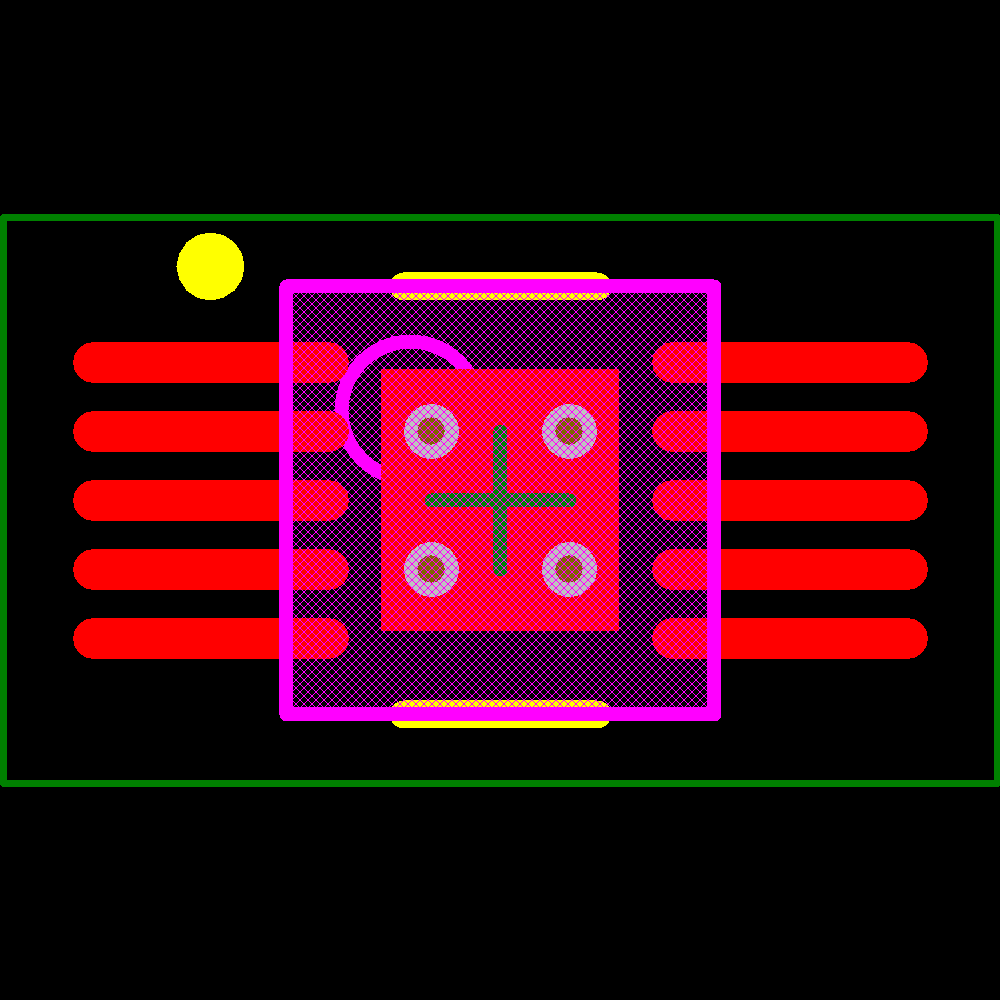

LM3409MYX/NOPB Footprint - Texas Instruments

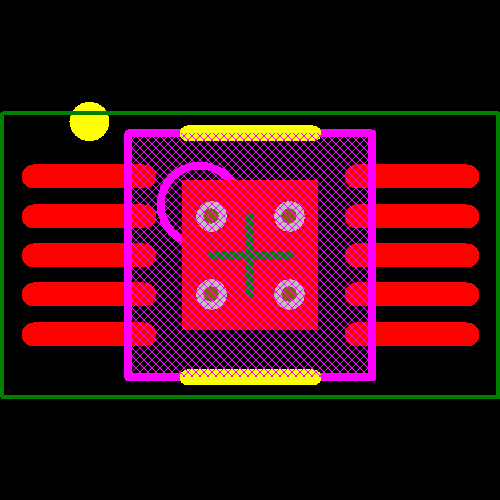

LM3409MYX/NOPB Footprint - Texas Instruments

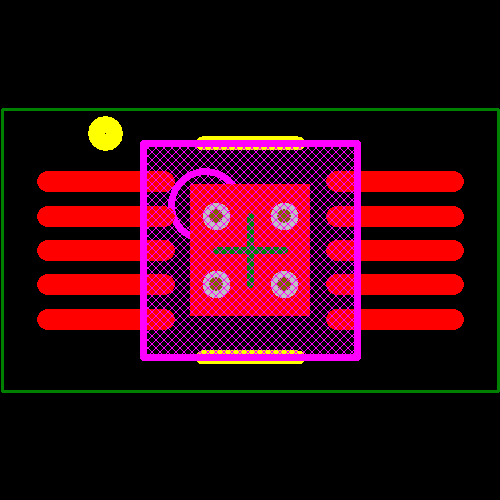

LM3409MYX/NOPB Footprint - Texas Instruments

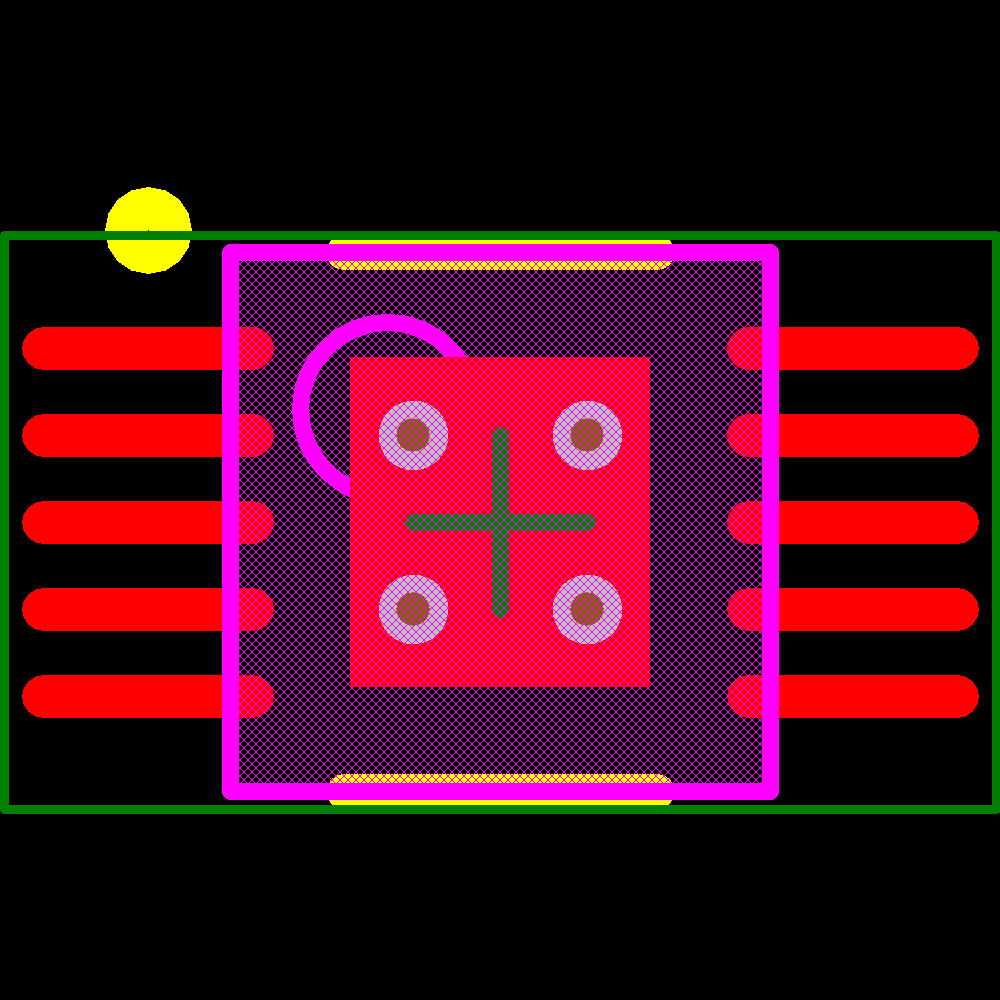

LM3409MYX/NOPB Footprint - Texas Instruments
