LM3409QHVMY/NOPB - Texas Instruments
75-V automotive PFET buck controller for high power LED drivers 10-HVSSOP -40 to 125
Technical Details
| Case/Package | MSOP |
| Dimming | Analog, PWM |
| Frequency | 1MHz |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 75V |
| Max Operating Temperature | 125°C |
| Max Supply Current | 2mA |
| Max Supply Voltage | 75V |
| Min Input Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 10 |
| Operating Supply Voltage | 42V |
| Output Voltage | 75V |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000|8542390000 |
| Switching Frequency | 2MHz |
| Thickness | 1.02mm |
| Topology | Buck |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

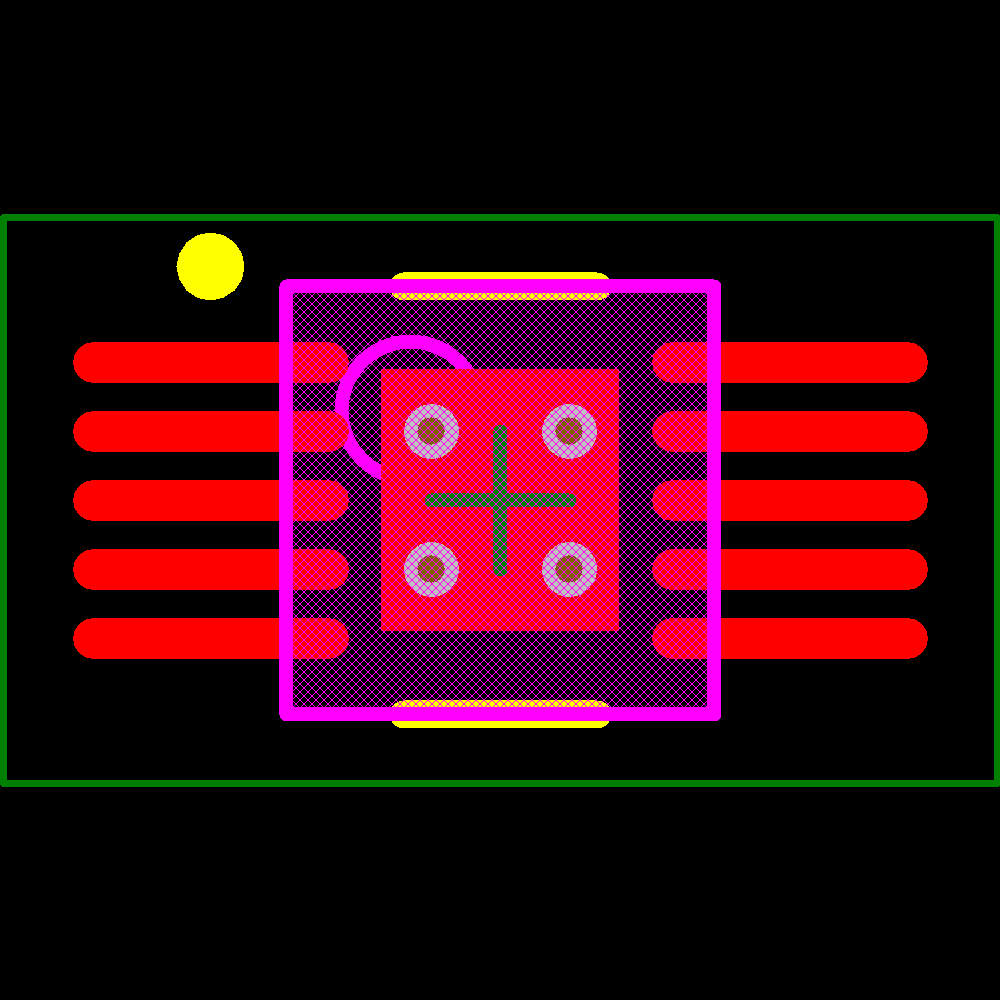

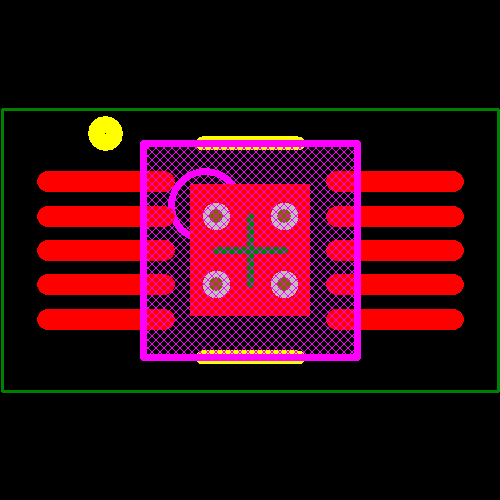

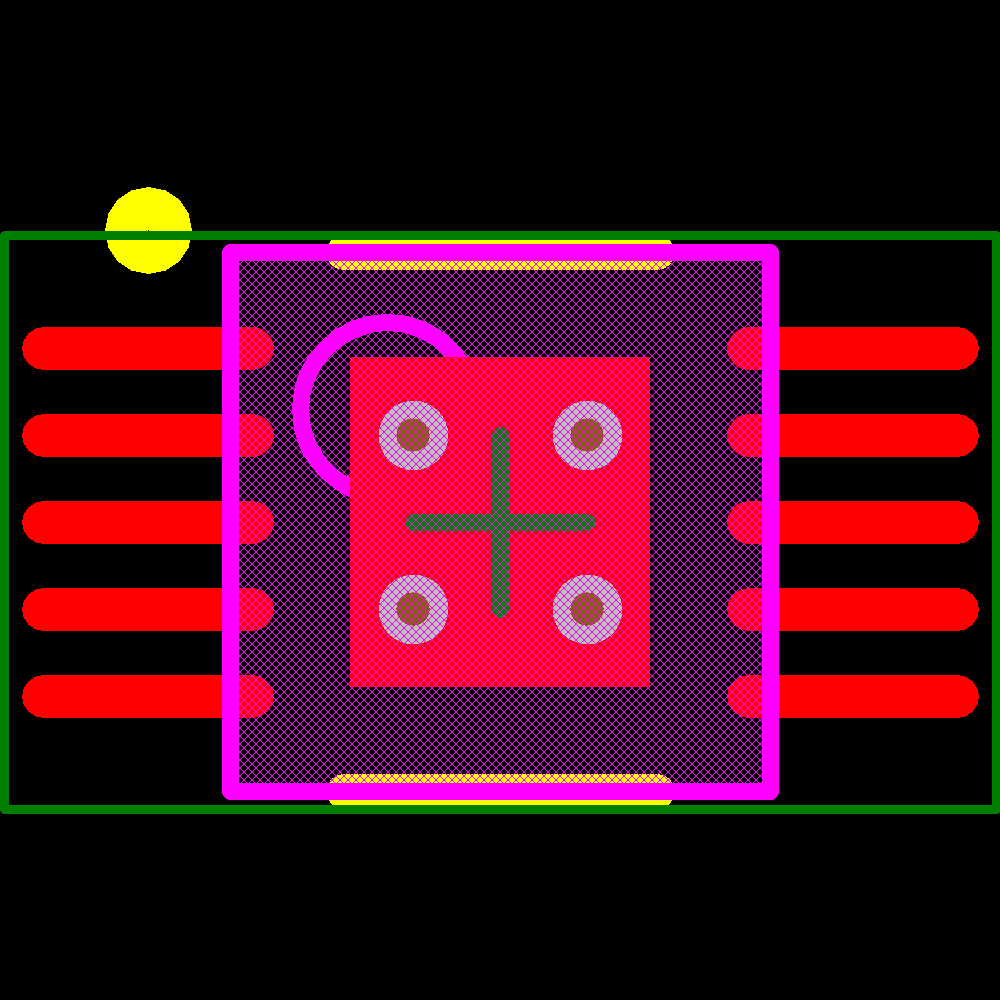

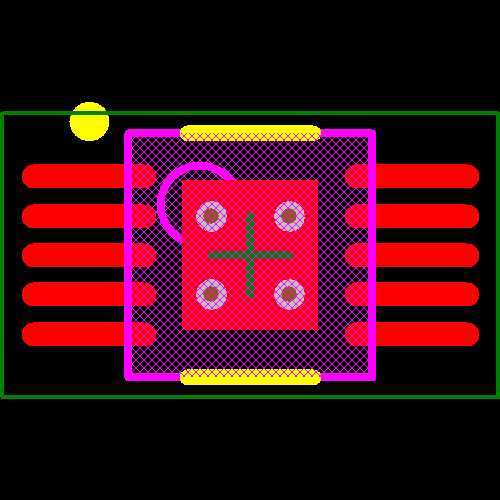

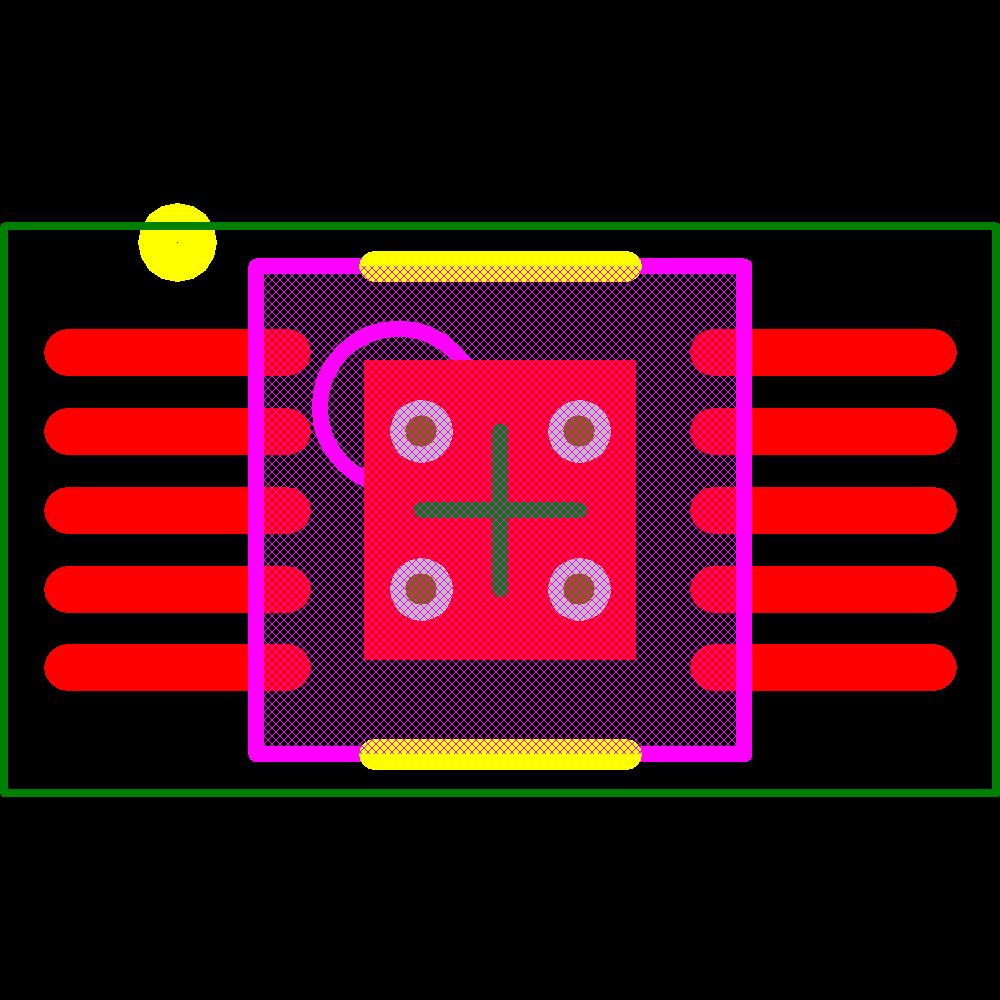

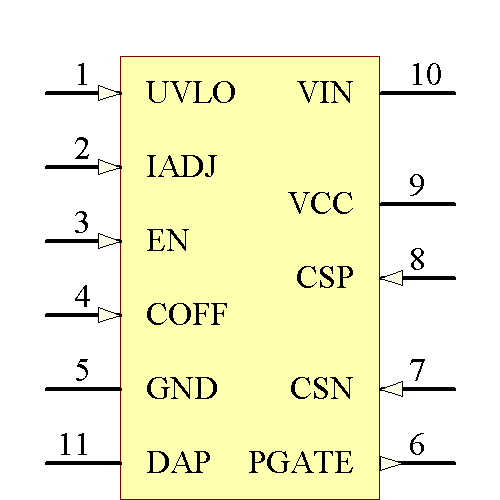

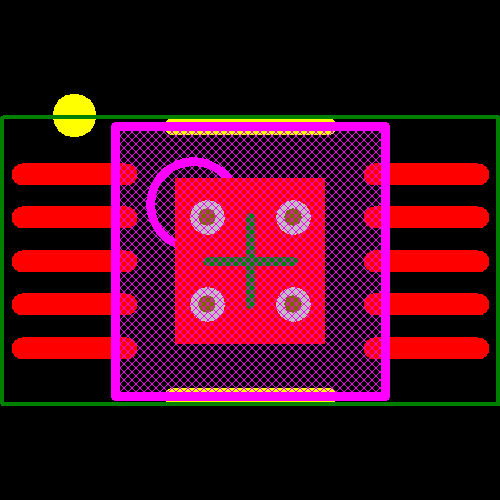

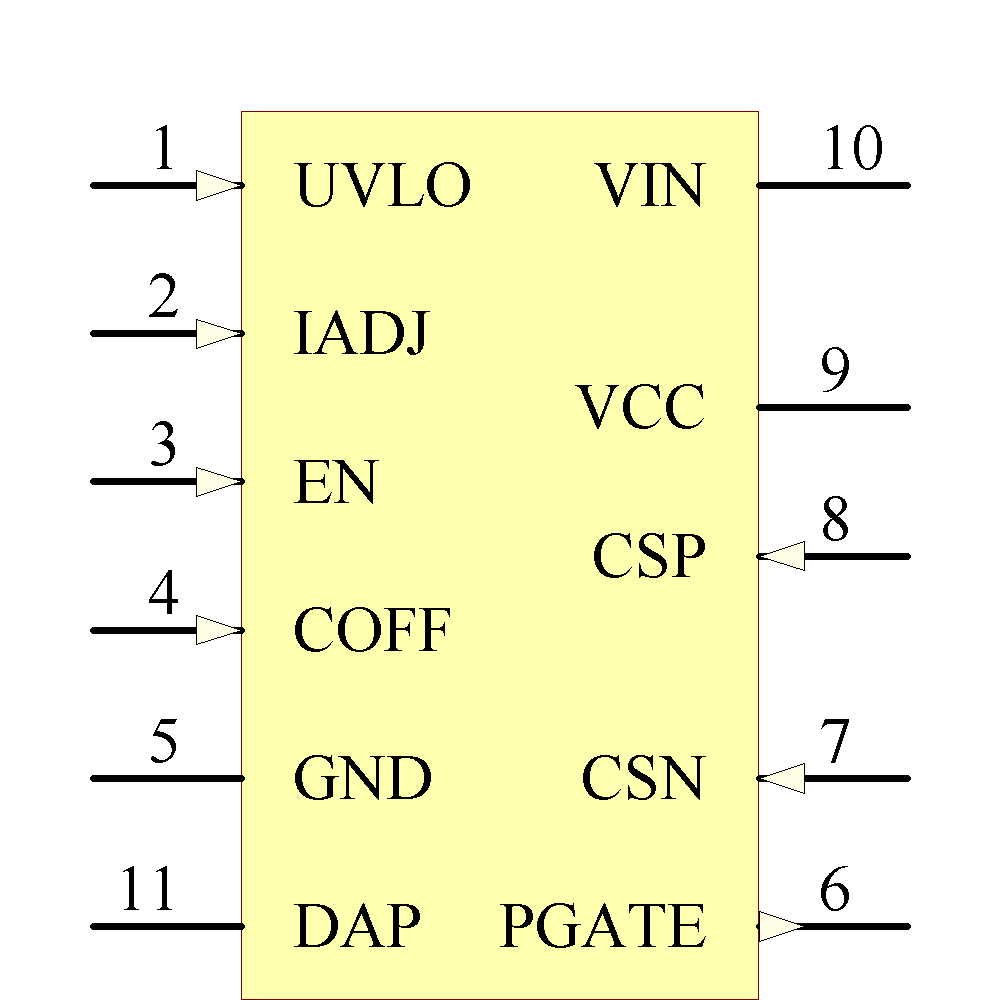

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Production | ||
| Microchip | Production | ||
| Micrel | Unknown | ||
| NXP Semiconductors | EOL | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
