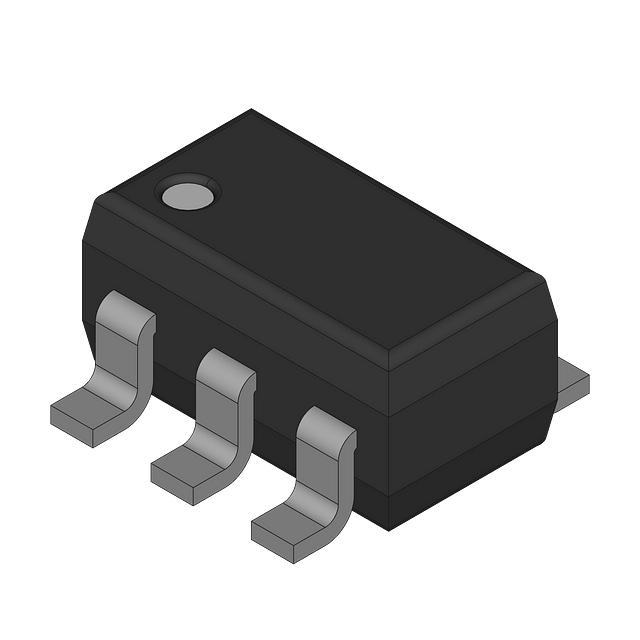

LM3410YMFE/NOPB - Texas Instruments
Tape & Reel (TR) LM3410 SEPIC Step-Up (Boost) PWM led driver 2.9mm 2.8A Switch 5.5V 400mW
Technical Details
| Case/Package | SOT-23 |
| Dimming | PWM |
| Frequency | 525kHz |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 400mW |
| Max Supply Current | 7mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Segments | 5 |
| Output Current | 2.8A |
| Output Current per Channel | 2.8A |
| Output Voltage | 24V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 400mW |
| Quiescent Current | 3.4mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 525kHz |
| Thickness | 1.2mm |
| Topology | Boost, SEPIC |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
