LM3410YMYE/NOPB - Texas Instruments
Tape & Reel (TR) LM3410 SEPIC Step-Up (Boost) PWM led driver 3mm 2.8A Switch 5.5V 400mW
Technical Details
| Case/Package | MSOP |
| Frequency | 525kHz |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Max Output Current | 2.8A |
| Max Output Voltage | 24V |
| Max Power Dissipation | 400mW |
| Max Supply Current | 7mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 3V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Segments | 5 |
| Output Current | 2.8A |
| Output Type | Fixed |
| Output Voltage | 24V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 400mW |
| Quiescent Current | 3.4mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 525kHz |
| Thickness | 1.02mm |
| Topology | Boost, SEPIC |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

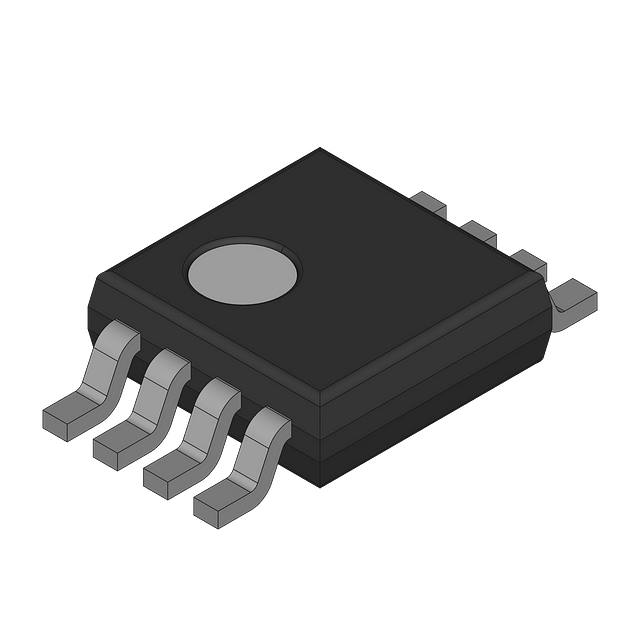

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Intersil | Obsolete | ||
| Skyworks Solutions | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | EOL | ||
| Renesas | Obsolete | ||
| Micrel | Unknown | ||
| Renesas | Obsolete | ||
| onsemi | Obsolete |
