Integrated Circuits (ICs) > Power Management ICs > LED Drivers

LM3414HVSDX/NOPB - Texas Instruments

Tape & Reel (TR) LM3414 Step-Down (Buck) Analog PWM led driver 3mm 1A 65V 250kHz

Technical Details

Dimming	Analog, PWM
Frequency	500kHz
Height	800µm
Lead Free	Lead Free
Length	3mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	125°C
Max Supply Voltage	65V
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Outputs	1
Number of Pins	8
Output Current per Channel	1A
Packaging	Tape & Reel (TR)
Quiescent Current	3.3mA
RoHS	Compliant
Schedule B	8542390000
Switching Frequency	250kHz
Thickness	800µm
Topology	Buck
Width	3mm

Compliance

RoHS : Unconfirmed

Images

Texas Instruments LM3414HVSDX/NOPB | Texas Instruments

Texas Instruments

Datasheets

Lifecycle Status Indicator

Production

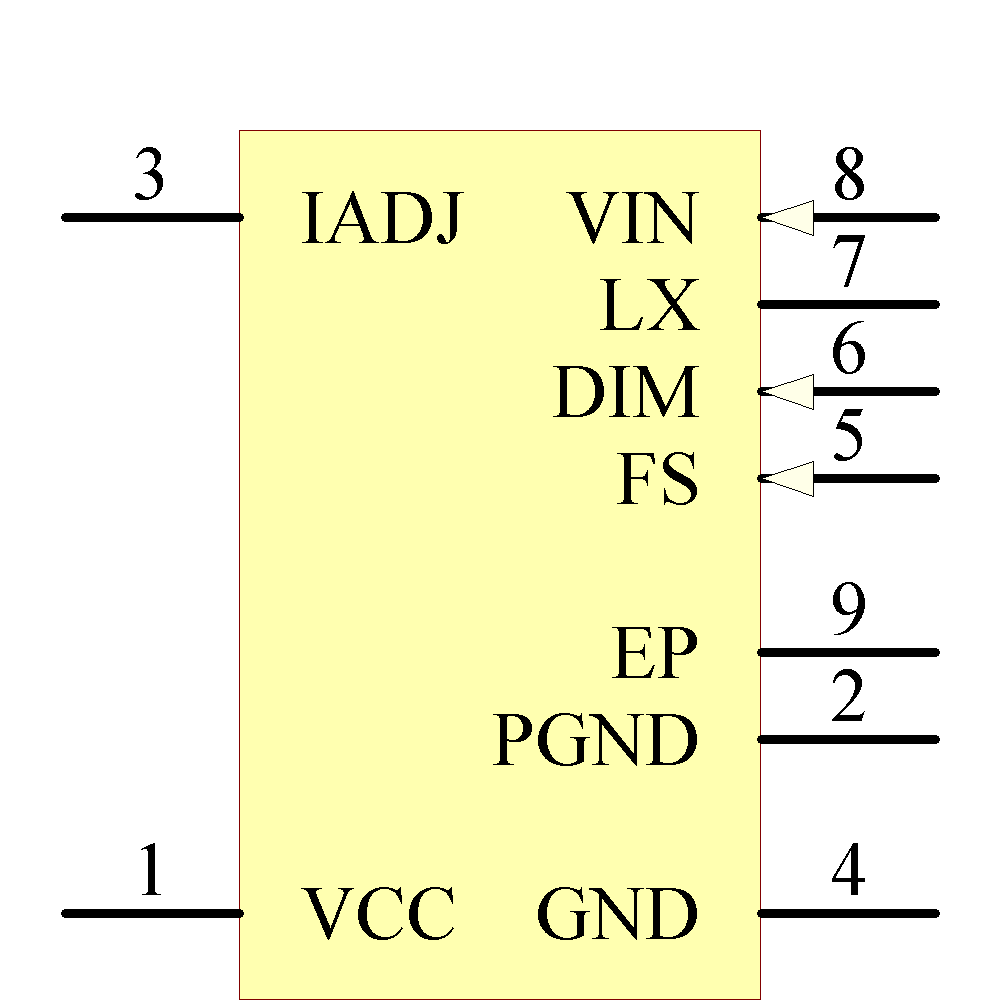

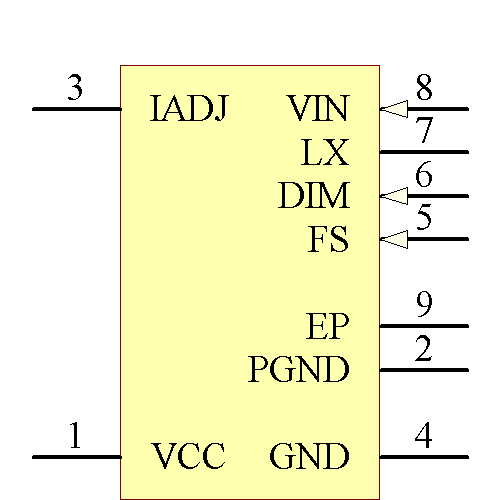

Symbol

LM3414HVSDX/NOPB Symbol - Texas Instruments

LM3414HVSDX/NOPB Symbol - Texas Instruments

LM3414HVSDX/NOPB Symbol - Texas Instruments

LM3414HVSDX/NOPB Symbol - Texas Instruments

‹ ›

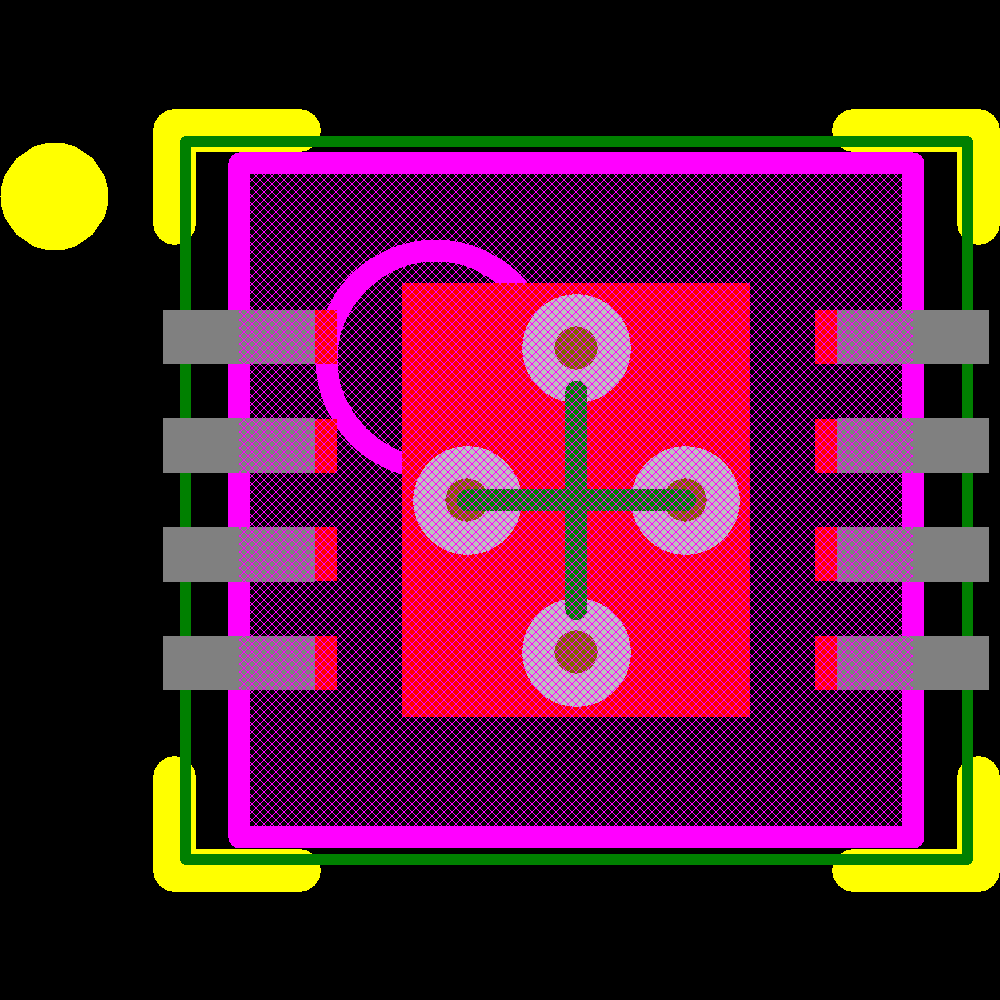

Footprint
