LM3414SD/NOPB - Texas Instruments
Tape & Reel (TR) LM3414 Step-Down (Buck) Analog PWM led driver 3mm 3.5mA 42V 250kHz
Technical Details
| Frequency | 1MHz |
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Current | 3.5mA |
| Max Supply Voltage | 42V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 3.5mA |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Output Current | 1A |
| Packaging | Tape and Reel |
| Quiescent Current | 3.2mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 250kHz |
| Thickness | 800µm |
| Topology | Buck |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
Images

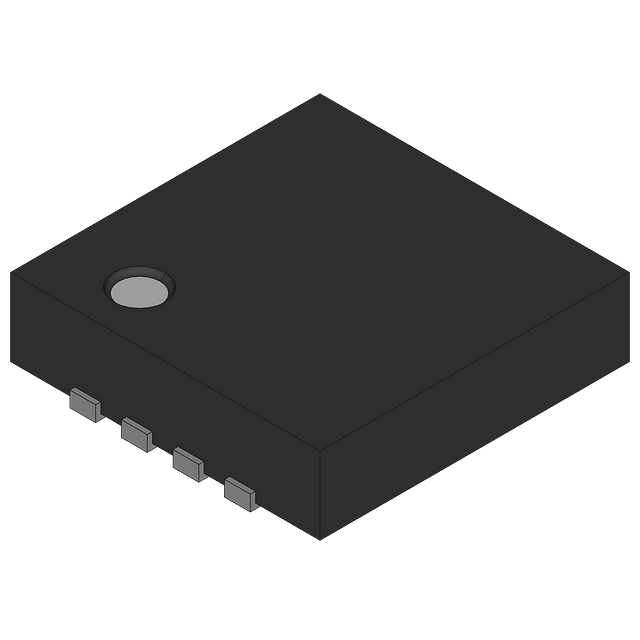

Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| IXYS | Obsolete | ||
| MaxLinear | Obsolete | ||
| IXYS | Obsolete | ||
| onsemi | Production | ||
| Texas Instruments | Production | ||
| Monolithic Power Systems | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| ROHM | Production |
