LM3423MHX/NOPB - Texas Instruments
Led Drvr 3SEGMENT 5V/9V/12V/15V/18V/24V 20-PIN TSSOP Ep T/r
Technical Details
| Case/Package | HTSSOP EP |
| Contact Plating | Tin |
| Frequency | 2MHz |
| Height | 0m |
| High Level Output Current | 35µA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Production |
| Low Level Output Current | 35µA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 75V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 20 |
| Number of Segments | 3 |
| Output Voltage | 72V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1mm |
| Topology | Boost, Buck-Boost, SEPIC |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

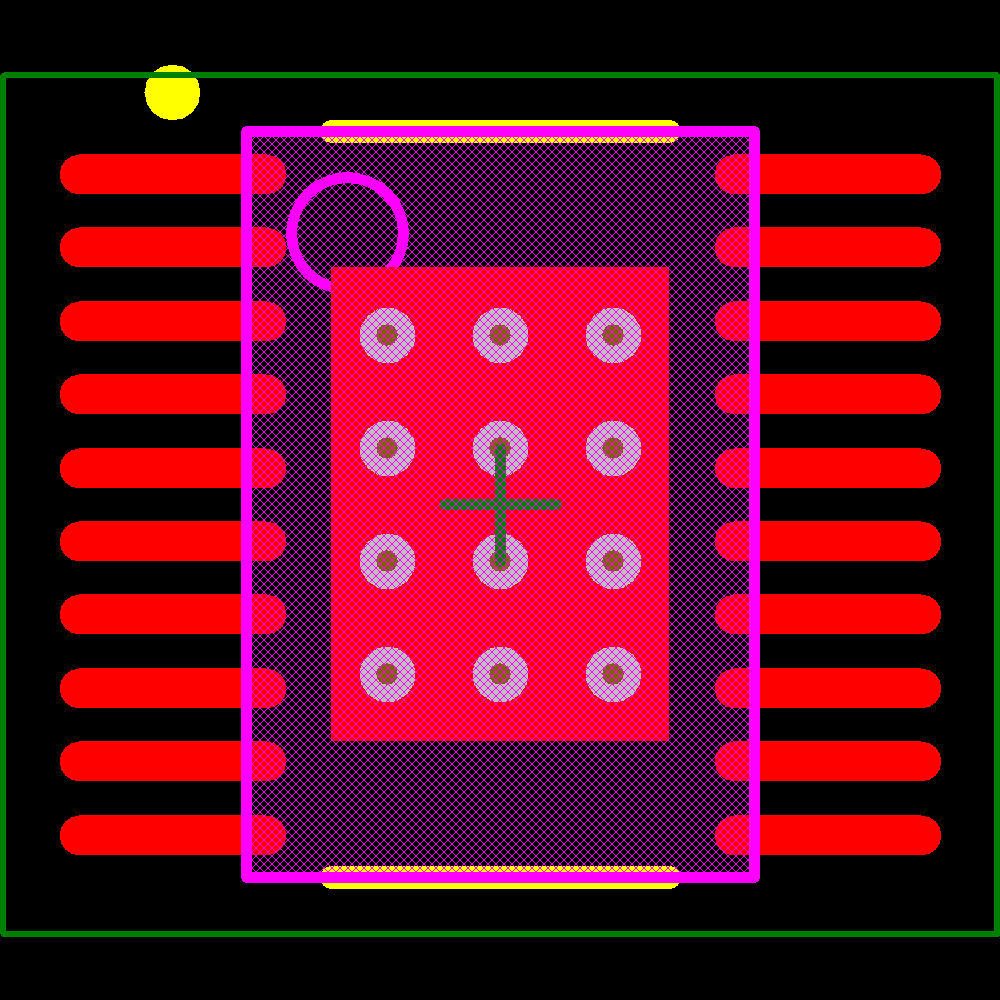

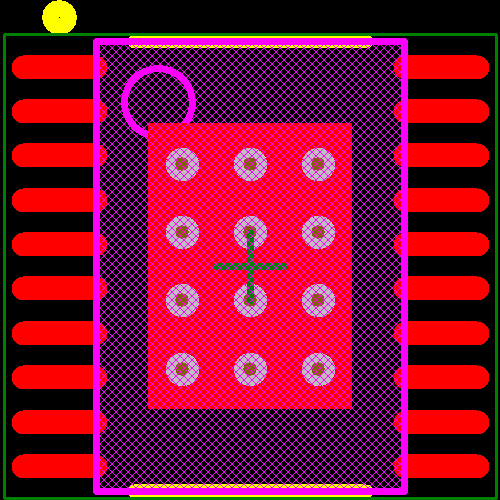

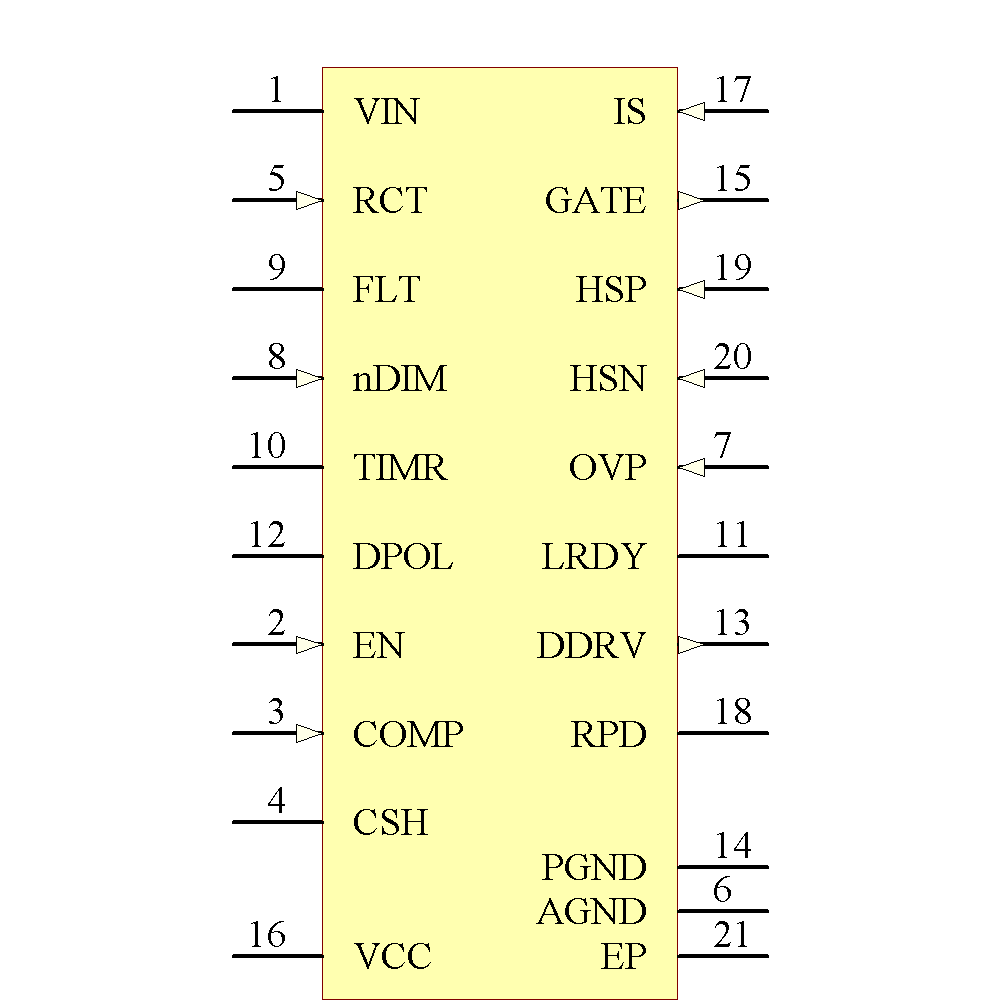

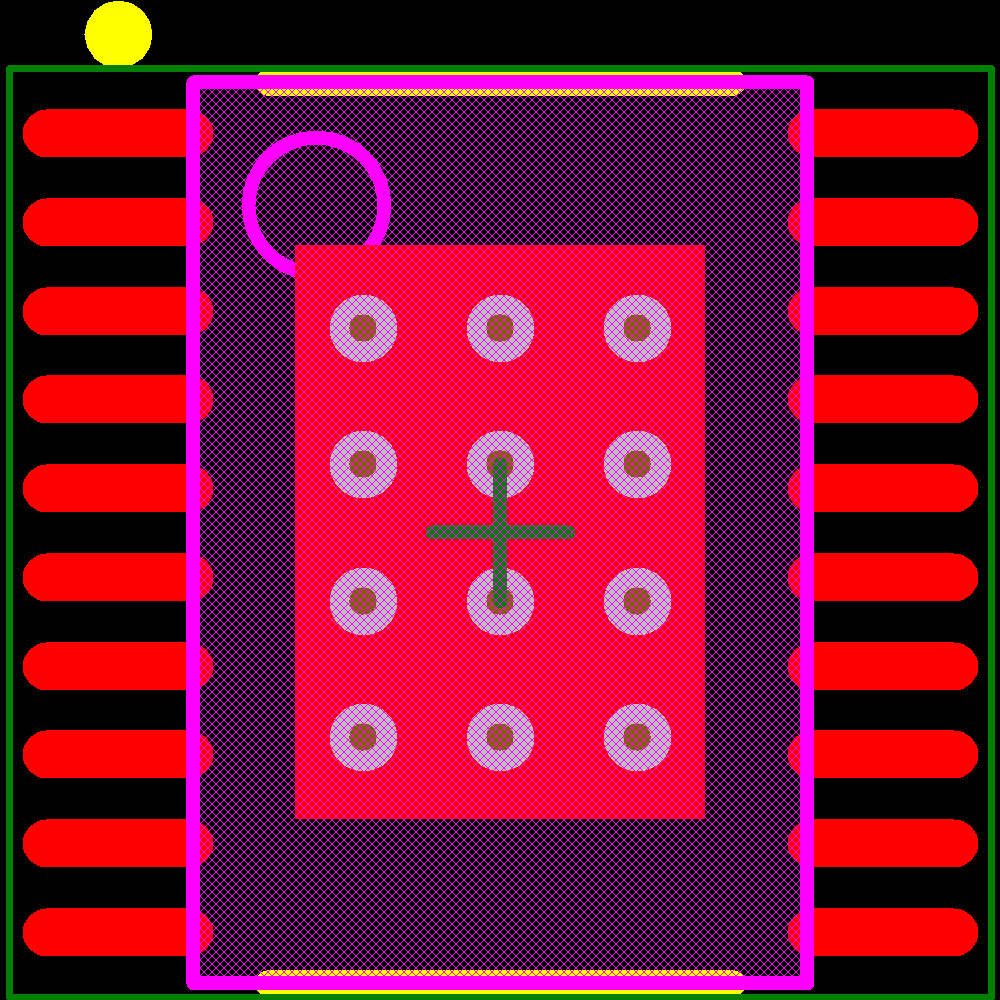

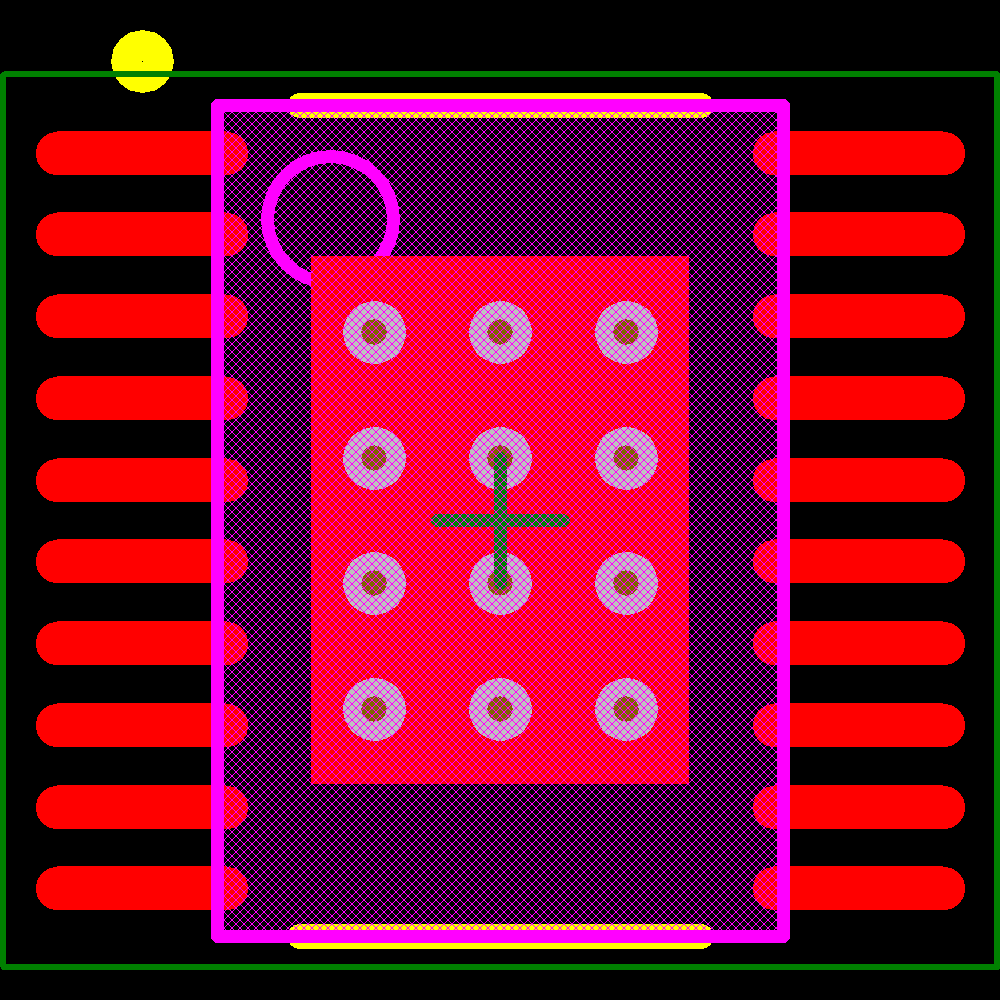

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Microchip | Production | ||
| Analog Devices | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Production | ||
| Analog Devices | Unknown | ||
| Texas Instruments | Production | ||
| Analog Devices | Unknown | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 2.009 | |||||||
| Texas Instruments |
US: 14505
|
$ | 2.868 | 2.868 | 2.868 | 2.513 | 1.42 | 1.42 | ||
