LM3429MH/NOPB - Texas Instruments

Simple N-channel controller for constant current LED drivers 14-HTSSOP -40 to 125

Technical Details

Case/Package	TSSOP
Frequency	2MHz
Height	1.2mm
Lead Free	Lead Free
Length	5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	75V
Max Operating Temperature	125°C
Max Supply Current	3mA
Max Supply Voltage	75V
Min Input Voltage	4.5V
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Mount	Surface Mount
Number of Channels	1
Number of Outputs	1
Number of Pins	14
Output Current	5A
Output Voltage	72V
Quiescent Current	1.6mA
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Switching Frequency	2MHz
Thickness	1mm
Topology	Boost, Buck-Boost
Width	4.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments LM3429MH/NOPB | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

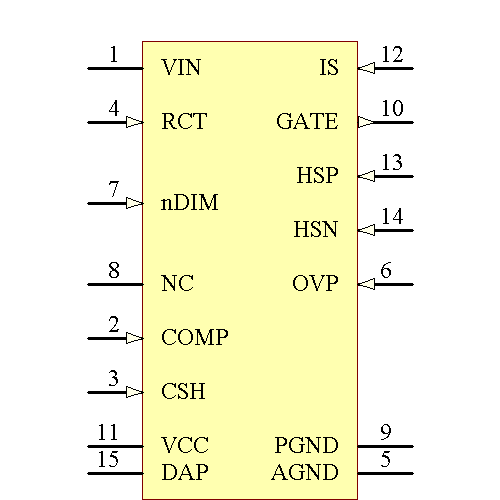

LM3429MH/NOPB Symbol - Texas Instruments

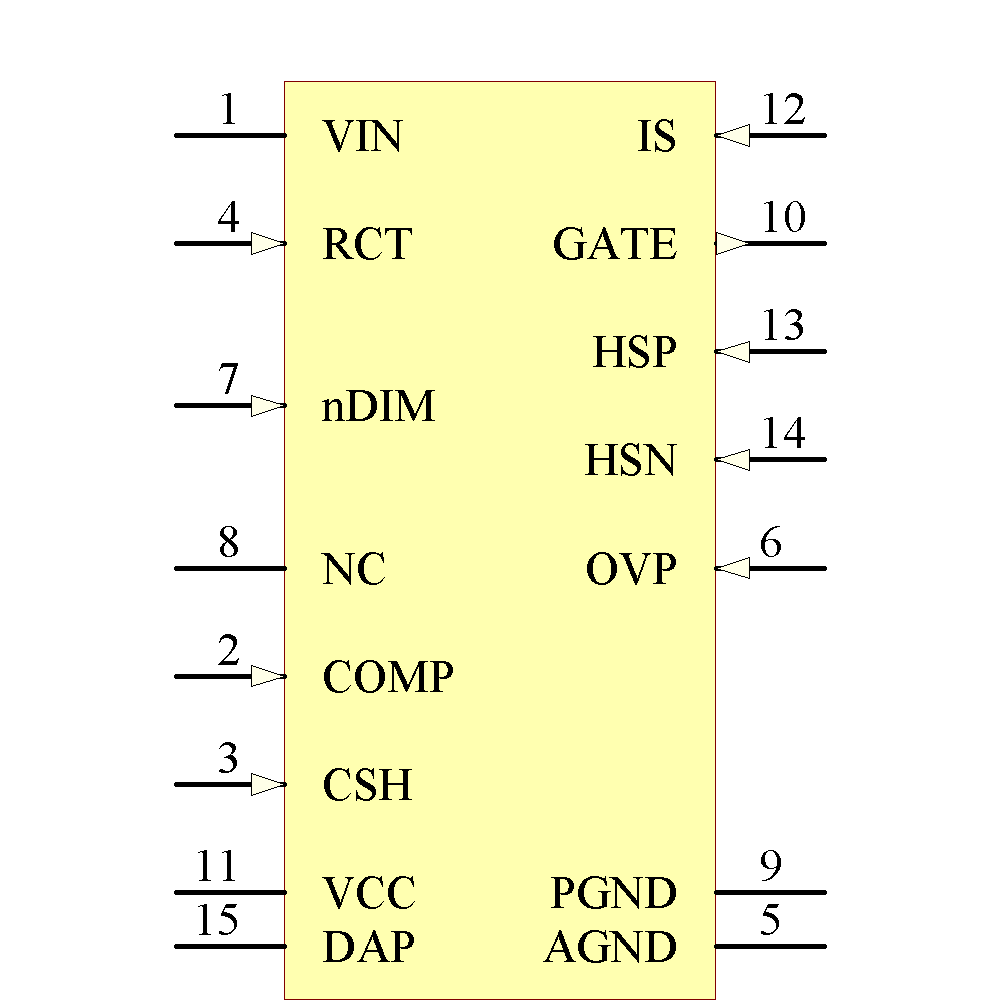

LM3429MH/NOPB Symbol - Texas Instruments

LM3429MH/NOPB Symbol - Texas Instruments

LM3429MH/NOPB Symbol - Texas Instruments

‹ ›

Footprint

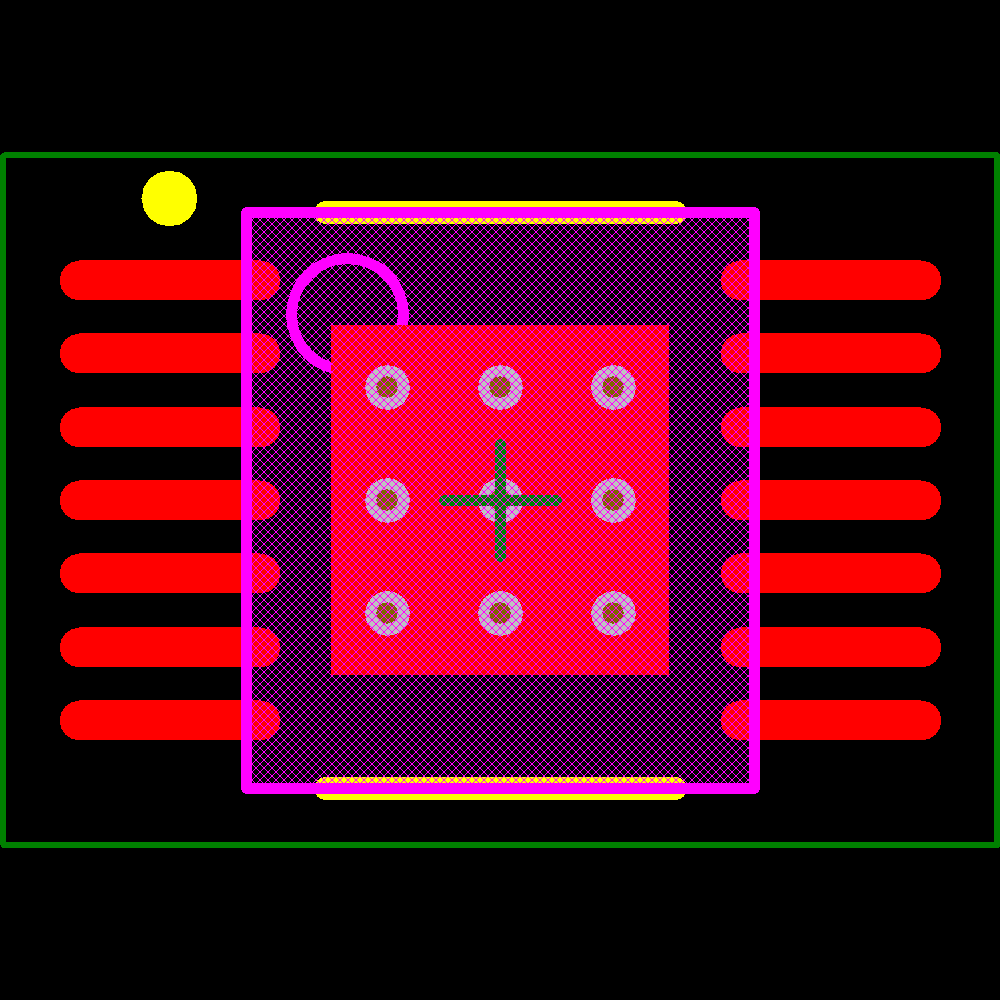

LM3429MH/NOPB Footprint - Texas Instruments

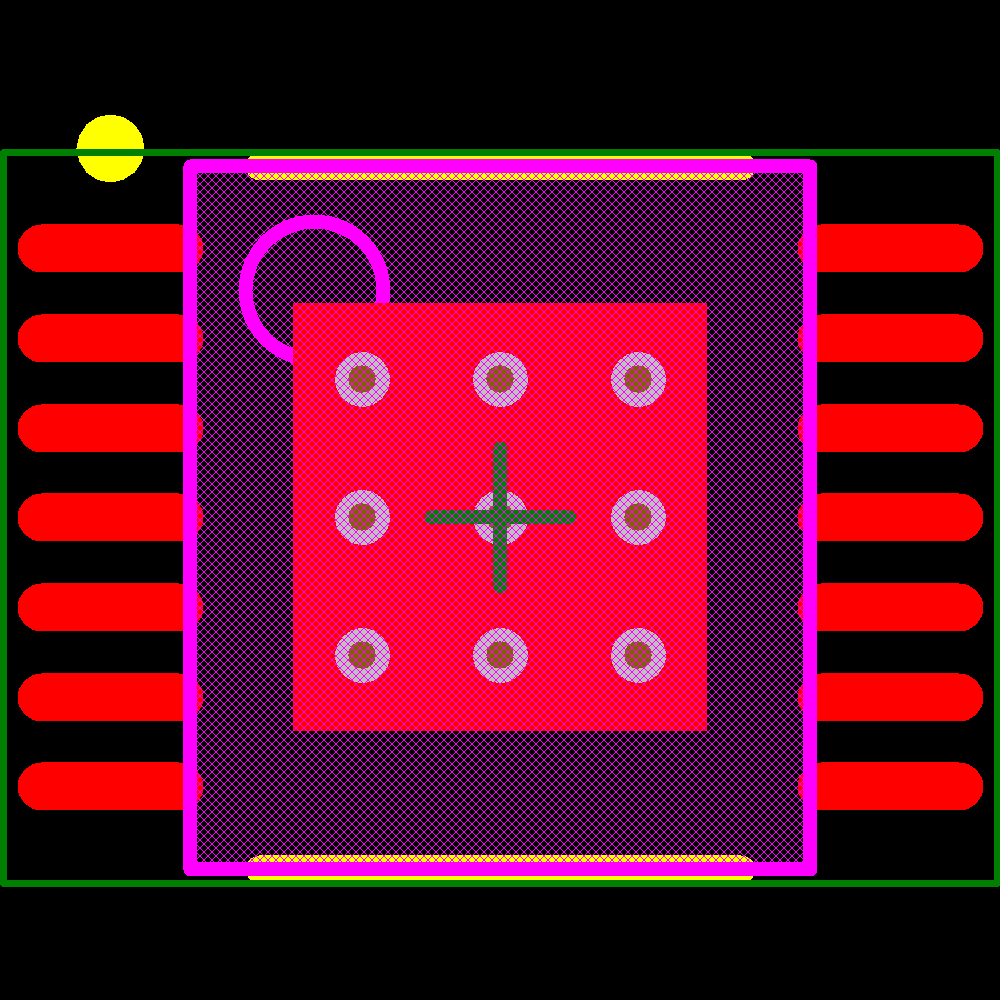

LM3429MH/NOPB Footprint - Texas Instruments

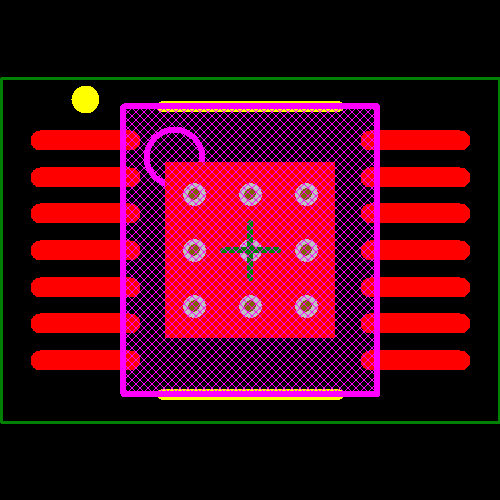

LM3429MH/NOPB Footprint - Texas Instruments

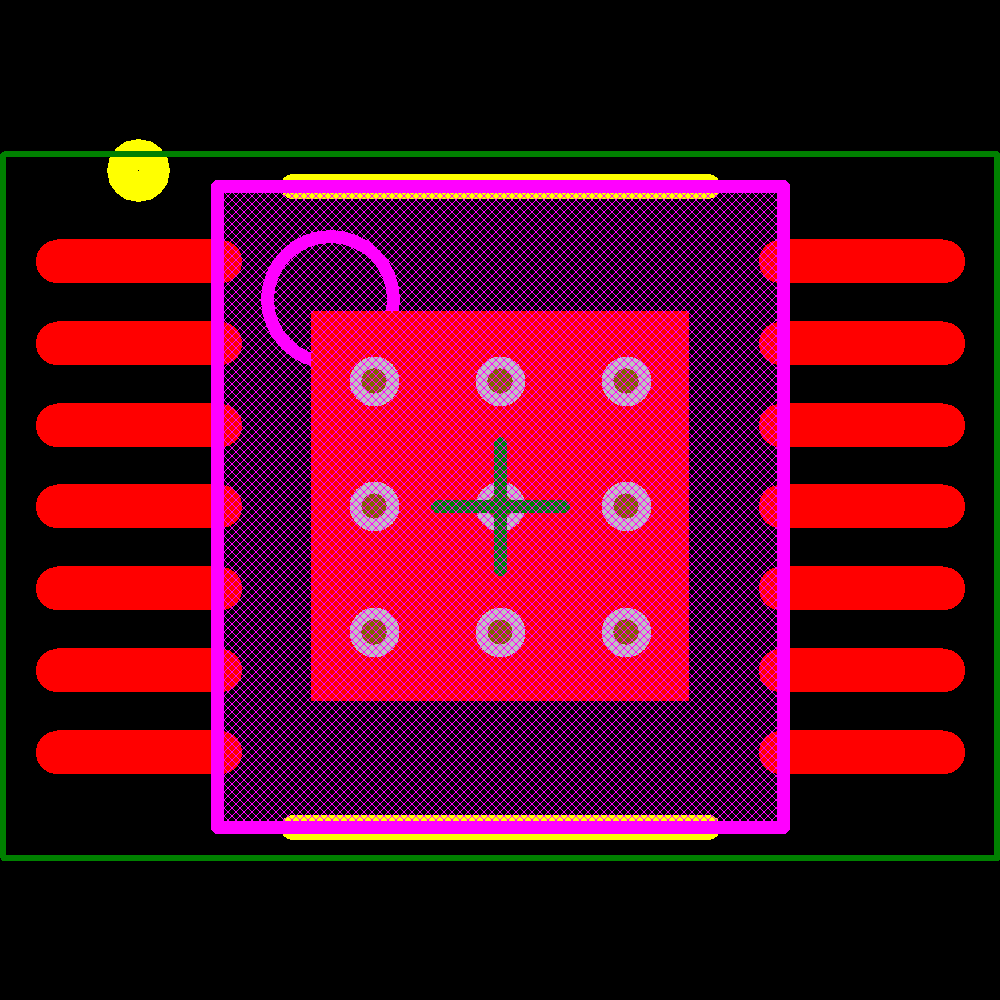

LM3429MH/NOPB Footprint - Texas Instruments
