LM3429Q1MHX/NOPB - Texas Instruments
Automotive Simple N-channel controller for constant current LED drivers 14-HTSSOP -40 to 125
Technical Details
| Case/Package | TSSOP |
| Contact Plating | Tin |
| Dimming | Analog, PWM |
| Frequency | 2MHz |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 75V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 1.6mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Thickness | 1mm |
| Topology | Buck-Boost, SEPIC |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

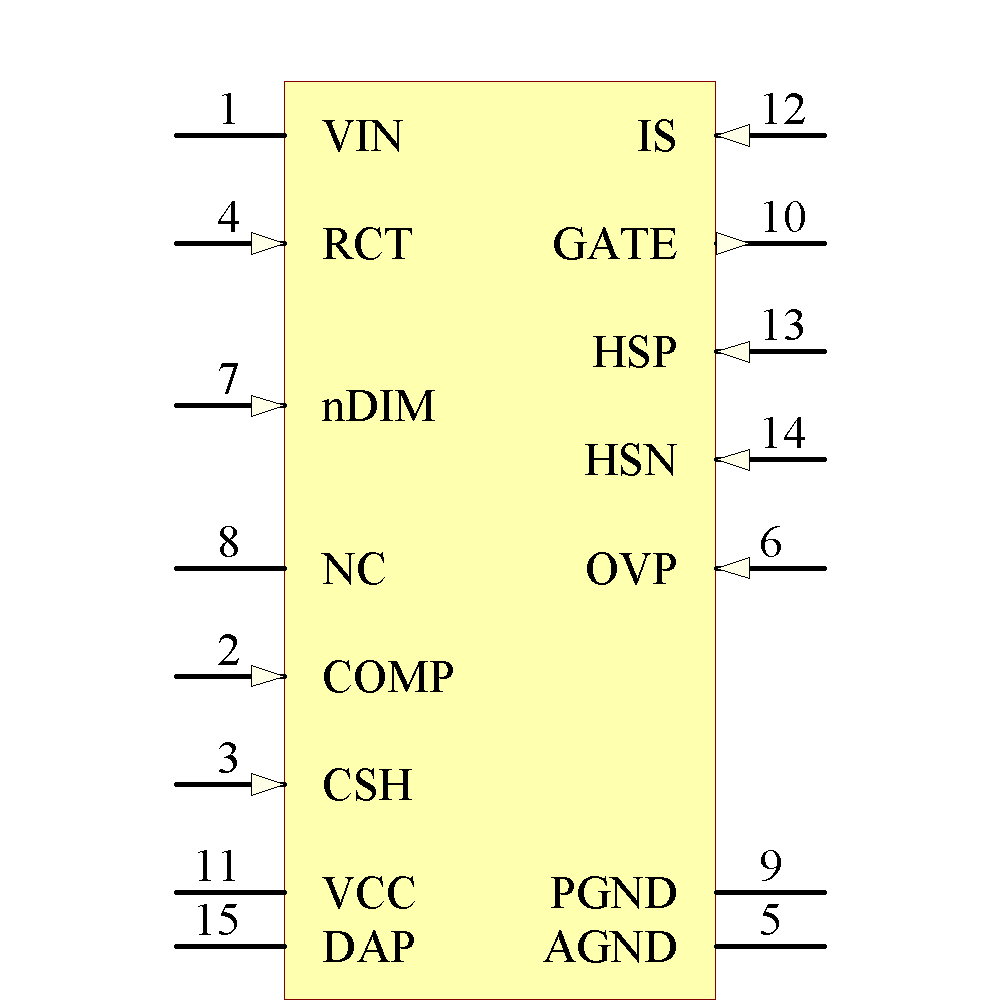

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | EOL | ||
| Texas Instruments | Production | ||
| Analog Devices | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| onsemi | Production |
