LM3431MH/NOPB - Texas Instruments
3-channel constant current LED driver with integrated boost controller 28-HTSSOP -40 to 125
Technical Details
| Case/Package | HTSSOP EP |
| Contact Plating | Tin |
| Frequency | 1.1MHz |
| Height | 1.2mm |
| High Level Output Current | 20mA |
| Lead Free | Lead Free |
| Length | 9.7mm |
| Lifecycle Status | Production |
| Low Level Output Current | 8mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 3.1W |
| Max Supply Current | 4.85mA |
| Max Supply Voltage | 36V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Outputs | 3 |
| Number of Pins | 28 |
| Output Current | 200mA |
| Output Voltage | 40V |
| Power Dissipation | 3.1W |
| Quiescent Current | 4mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 1MHz |
| Thickness | 1mm |
| Topology | Boost |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

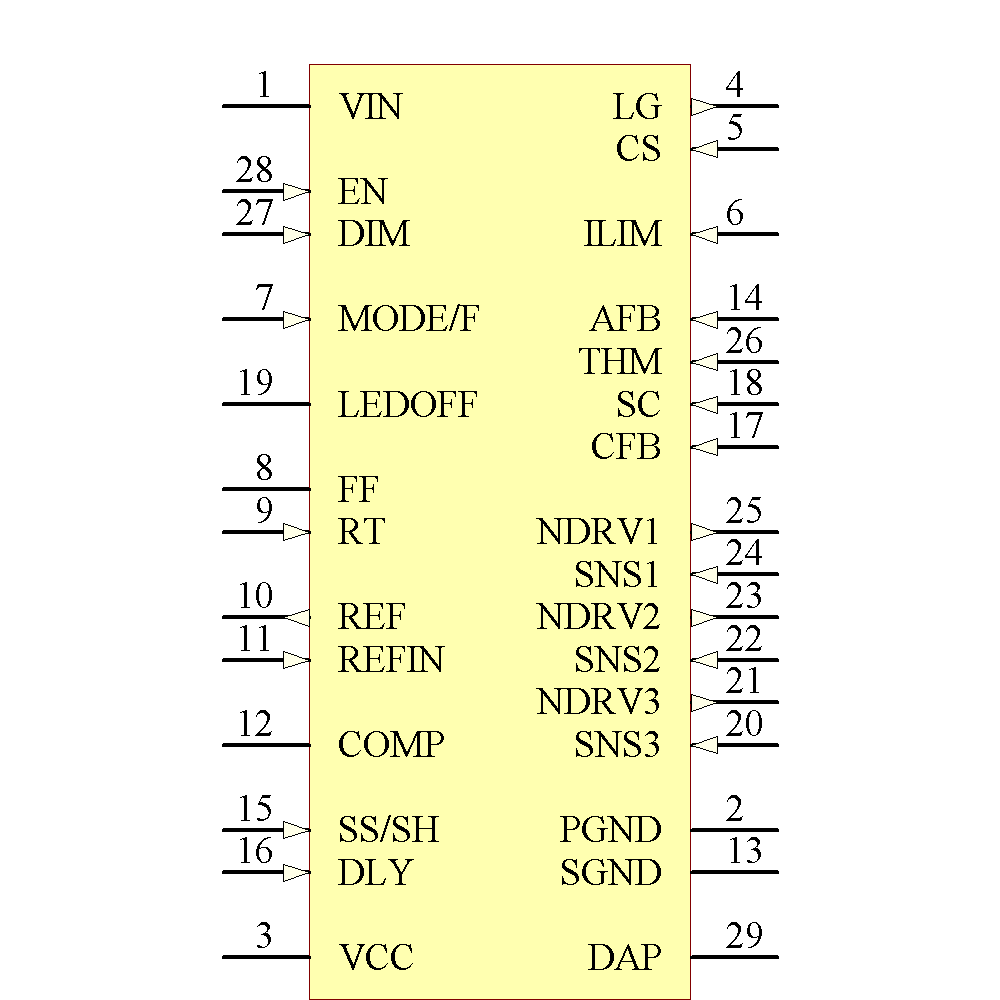

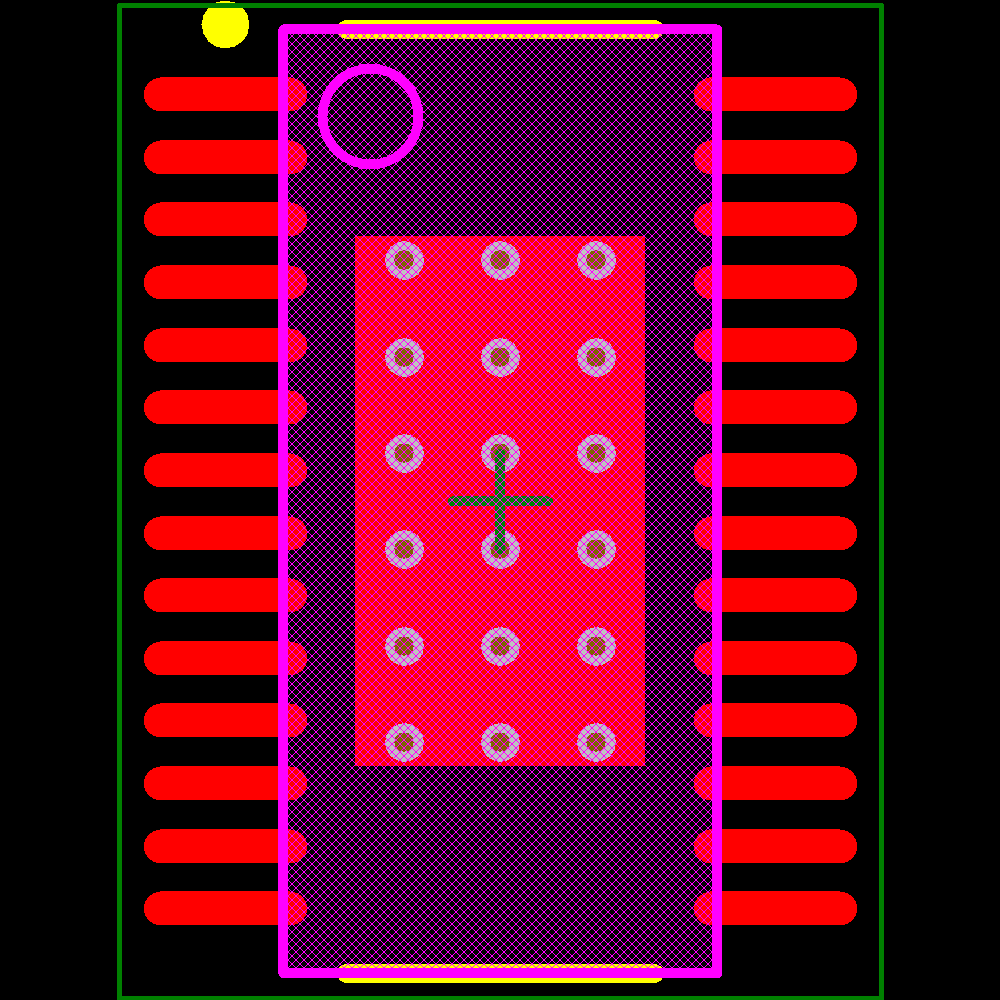

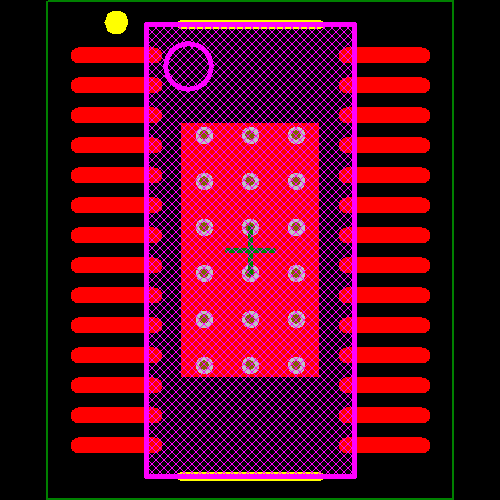

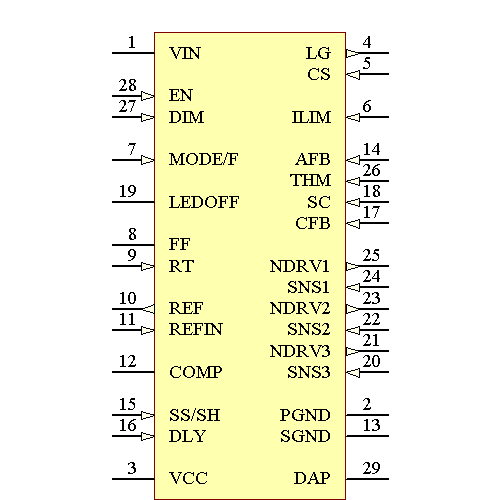

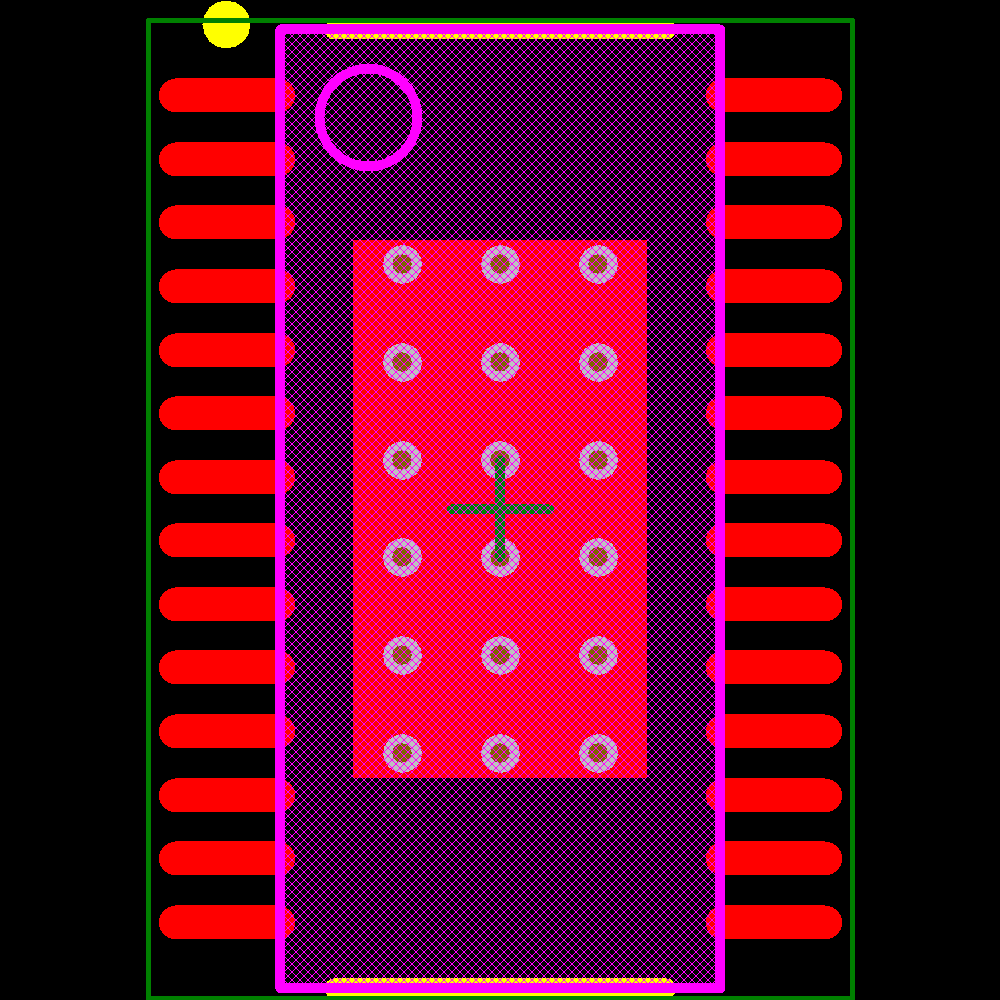

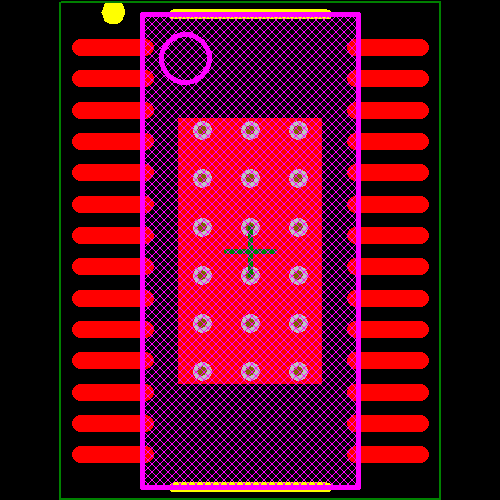

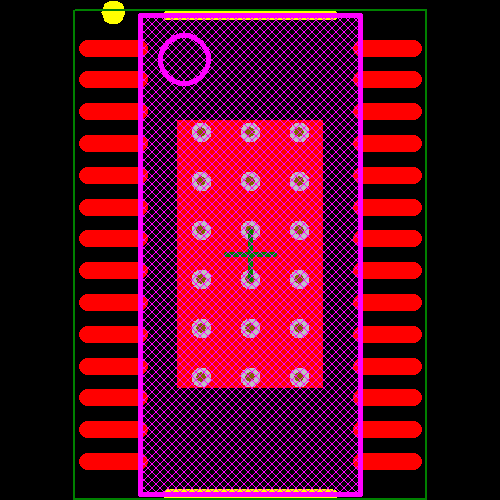

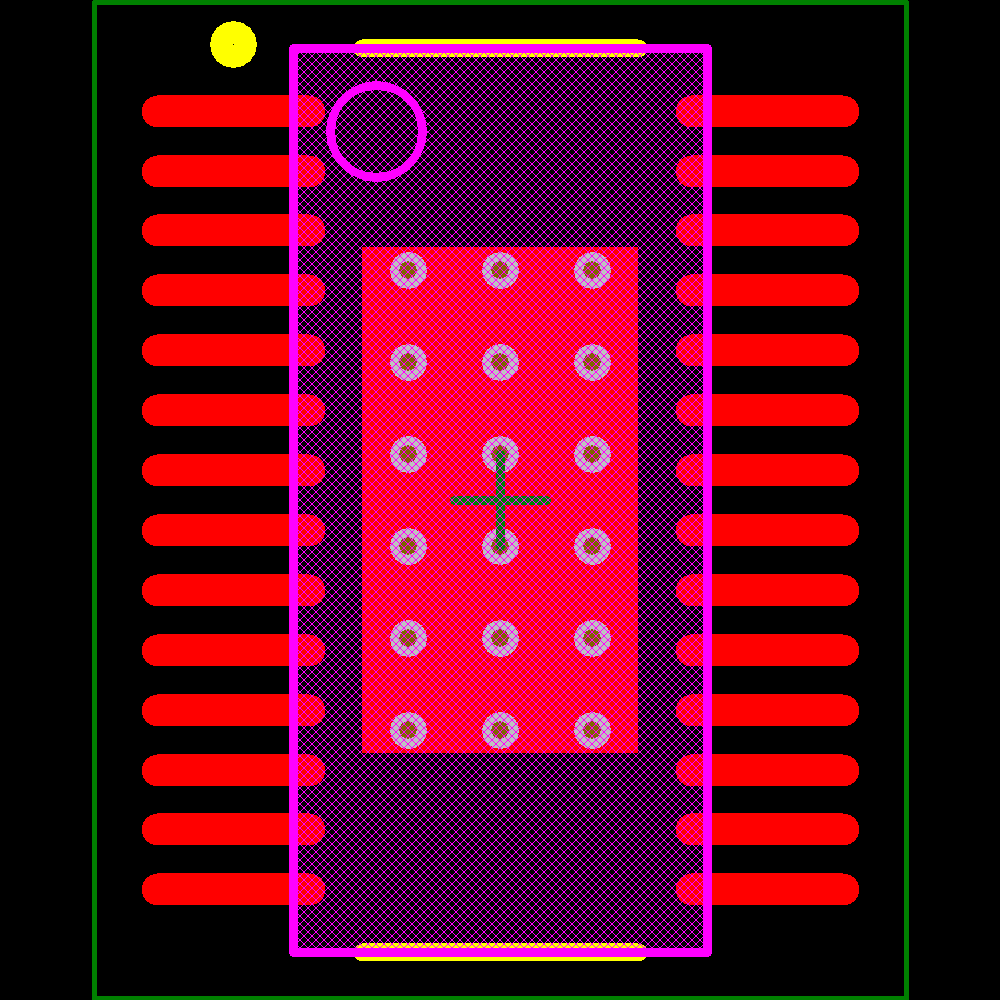

Images
