LM3445M/NOPB - Texas Instruments
Tube LM3445 Step-Down (Buck) Triac led driver 8.65mm 2.85mA 12V 30kHz~1MHz
Technical Details
| Case/Package | SOIC |
| Frequency | 1MHz |
| Height | 0m |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Current | 2.85mA |
| Max Supply Voltage | 12V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Nominal Supply Current | 2.85mA |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Operating Supply Voltage | 9V |
| Output Current | 1A |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 1.58mm |
| Topology | Buck, Flyback |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

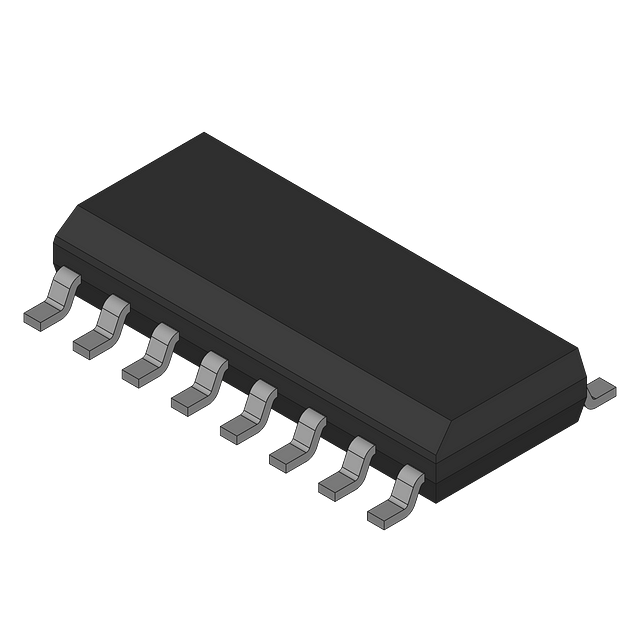

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Richtek | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Infineon | Obsolete | ||
| onsemi | Production | ||
| Infineon | Production | ||
| onsemi | Production | ||
| Infineon | Obsolete |
