LM3492QMH/NOPB - Texas Instruments
Tube LM3492 Step-Up (Boost) Automotive AEC-Q100 led driver 6.5mm 50mA~250mA 65V 200kHz~1MHz
Technical Details
| Case/Package | TSSOP |
| Frequency | 1MHz |
| Height | 0m |
| High Level Output Current | 60µA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Production |
| Low Level Output Current | 56µA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Current | 5.2mA |
| Max Supply Voltage | 65V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Number of Pins | 20 |
| Output Current | 200mA |
| Quiescent Current | 3.6mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 1mm |
| Topology | Boost |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

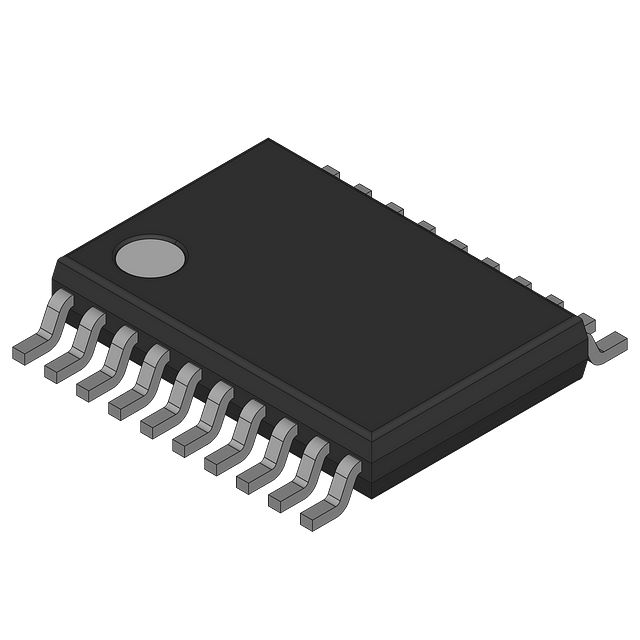

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
