LM3508TLX/NOPB - Texas Instruments
Synchronous magnetic constant current white LED driver 9-DSBGA -30 to 85
Technical Details
| Features | OVP |
| Frequency | 1.15MHz |
| Height | 675µm |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Current | 30mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -30°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 825µA |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 9 |
| Number of Segments | 4 |
| Output Voltage | 17.5V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 825µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 850kHz |
| Thickness | 675µm |
| Topology | Boost |
| Width | 1.8mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

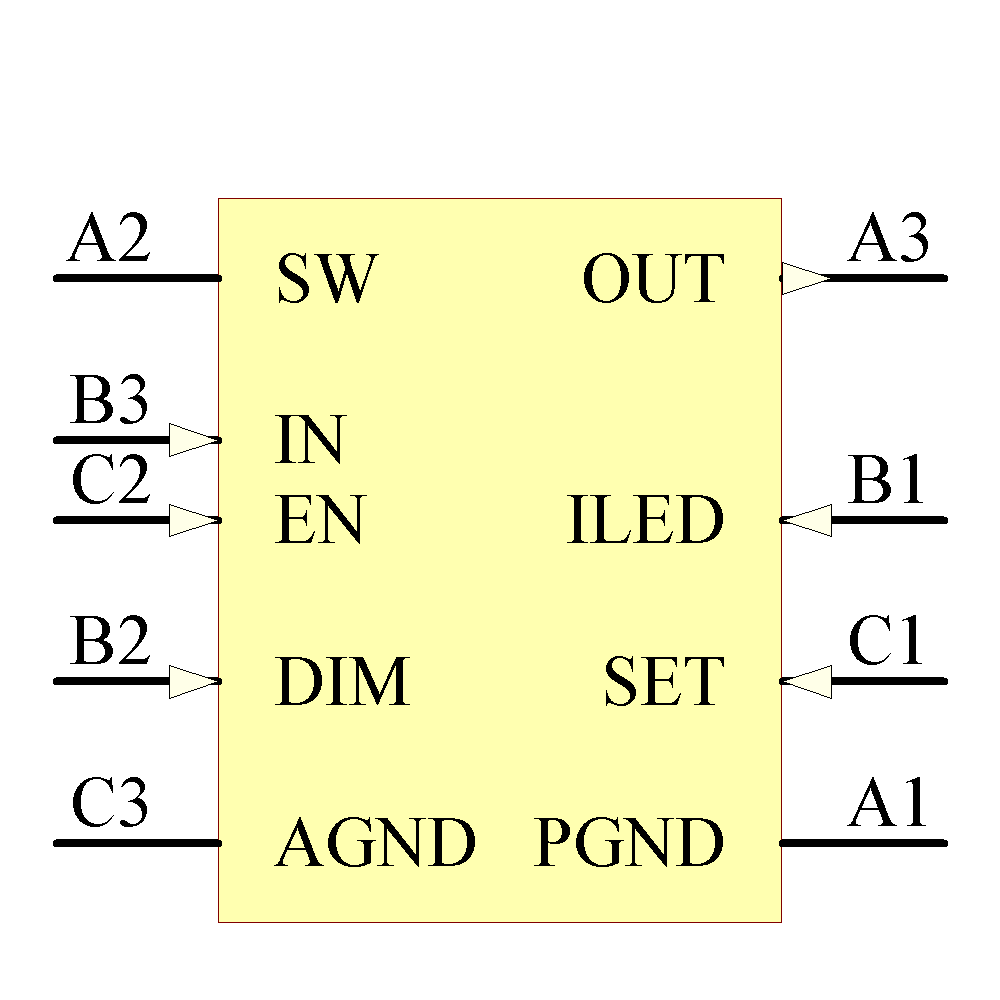

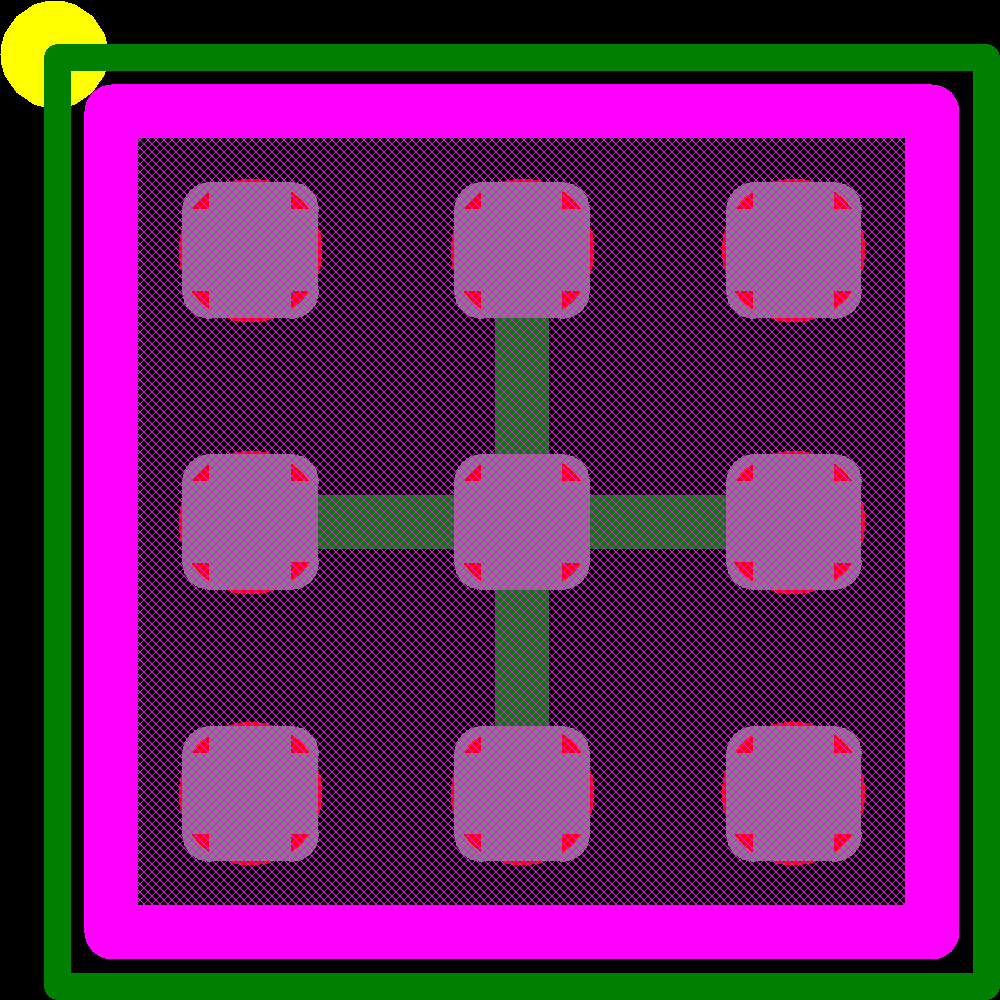

Images
