LM3530UME-40/NOPB - Texas Instruments
High efficiency white LED driver with programmable Ambient Light Sensing Capability 12-DSBGA -30 to 85
Technical Details
| Frequency | 500kHz |
| Height | 470µm |
| Lead Free | Lead Free |
| Length | 0m |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Supply Current | 1.35mA |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Nominal Supply Current | 1.35mA |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 12 |
| Number of Segments | 11 |
| Operating Supply Voltage | 5.5V |
| Output Voltage | 40V |
| Quiescent Current | 1.35mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 500kHz |
| Thickness | 400µm |
| Topology | Boost |
| Weight | 4.535924g |
| Width | 0m |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

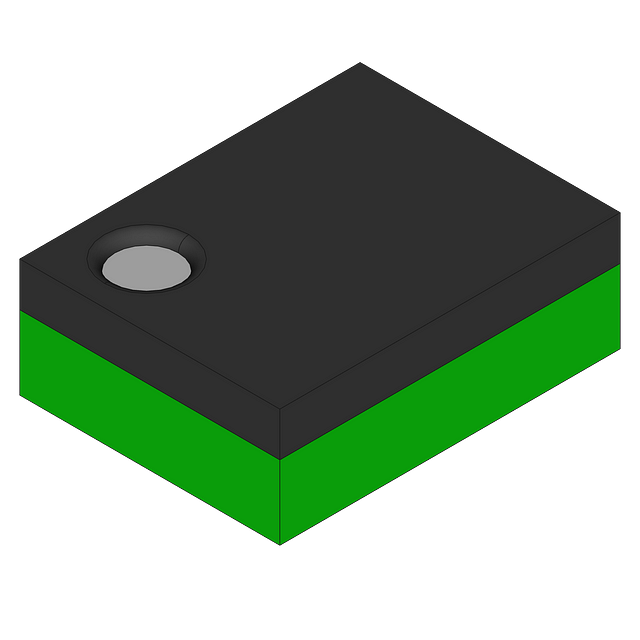

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
