LM3535TME/NOPB - Texas Instruments
Tape & Reel (TR) LM3535 Switched Capacitor (Charge Pump) PWM led driver 0m -25mA 5.5V 1.33MHz
Technical Details
| Case/Package | SMD/SMT |
| Frequency | 1.33MHz |
| Height | 675µm |
| High Level Output Current | -25mA |
| Lead Free | Lead Free |
| Length | 0m |
| Lifecycle Status | Production |
| Low Level Output Current | 25mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Current | 4.38mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -30°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 1.09mA |
| Number of Channels | 8 |
| Number of Outputs | 8 |
| Number of Pins | 20 |
| Number of Segments | 8 |
| Output Current | 25mA |
| Packaging | Tape and Reel |
| Quiescent Current | 1.09mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 1.33MHz |
| Thickness | 420µm |
| Topology | Boost |
| Touchscreen | Capacitive |
| Width | 0m |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

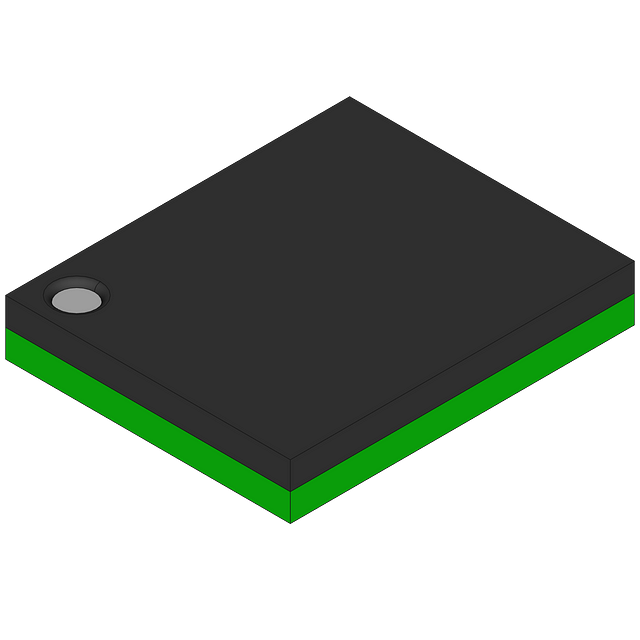

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | NRND | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Analog Devices | Production | ||
| Texas Instruments | Unknown |
