LM3549SQE/NOPB - Texas Instruments
Tape & Reel (TR) LM3549 Step-Down (Buck) Step-Up (Boost) I2C led driver 4mm 705mA 5.5V 2.4MHz
Technical Details
| Features | I²C |
| Frequency | 2.4MHz |
| Height | 800µm |
| High Level Output Current | 705mA |
| Lead Free | Lead Free |
| Length | 4mm |
| Lifecycle Status | Production |
| Low Level Output Current | 107mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Current | 3mA |
| Min Operating Temperature | -30°C |
| Number of Channels | 3 |
| Number of Outputs | 3 |
| Number of Pins | 24 |
| Number of Segments | 3 |
| Operating Supply Voltage | 5.5V |
| Output Current | 700mA |
| Packaging | Tape & Reel |
| Quiescent Current | 1.6mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 750µm |
| Topology | Boost |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

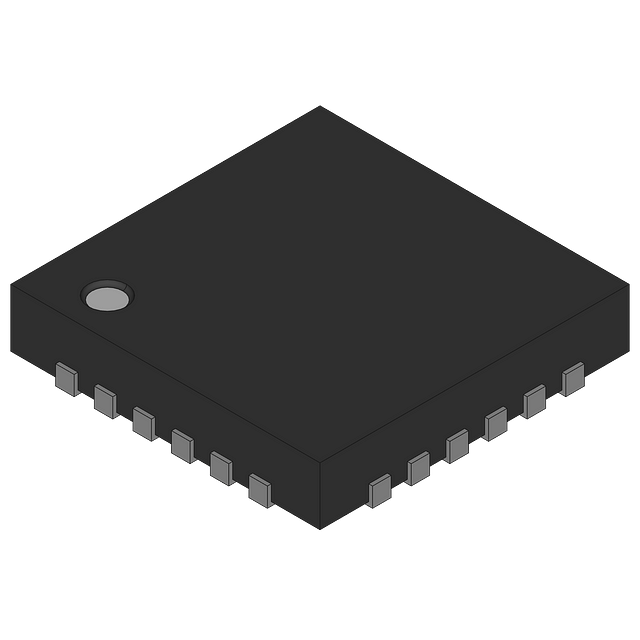

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Microchip | Unknown | ||
| Texas Instruments | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown |
