LM3554TMX/NOPB - Texas Instruments

LED Driver 2 Segment 2700uA Supply Current 16-Pin DSBGA T/R

Technical Details

Contact Plating	Copper, Silver, Tin
Frequency	2MHz
Height	675µm
Lead Free	Lead Free
Length	0m
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	85°C
Max Supply Current	630µA
Max Supply Voltage	5.5V
Min Operating Temperature	-30°C
Min Supply Voltage	2.7V
Mount	Surface Mount
Nominal Supply Current	2.7mA
Number of Outputs	2
Number of Pins	16
Number of Segments	2
Output Current	1.2A
Output Voltage	5V
Packaging	Tape & Reel (TR)
Quiescent Current	630µA
Radiation Hardening	No
RoHS	Compliant
Switching Frequency	2MHz
Thickness	420µm
Topology	Boost
Width	0m

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

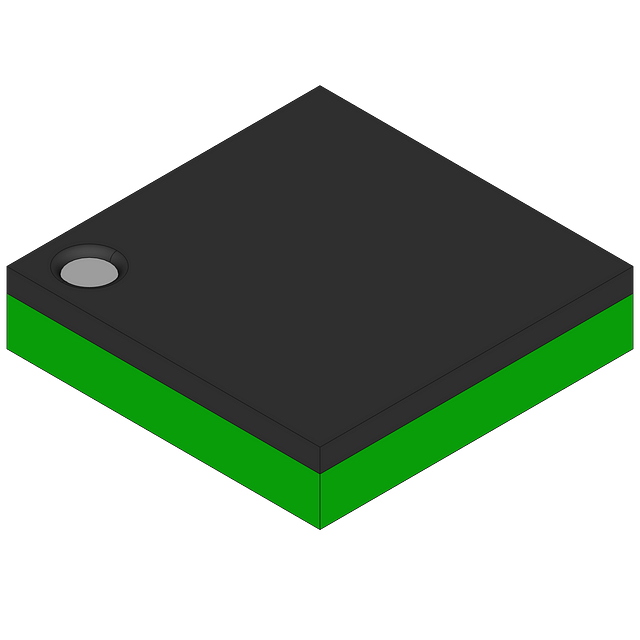

Texas Instruments LM3554TMX/NOPB | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

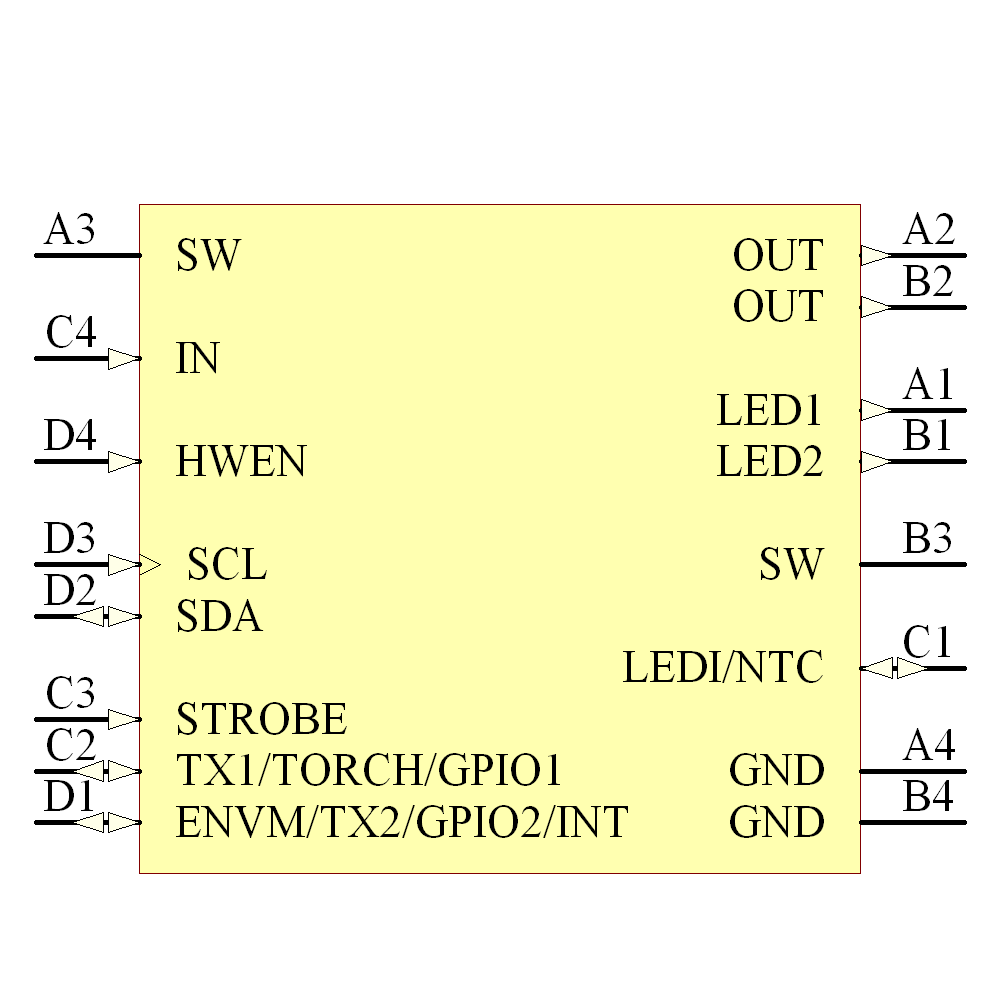

LM3554TMX/NOPB Symbol - Texas Instruments

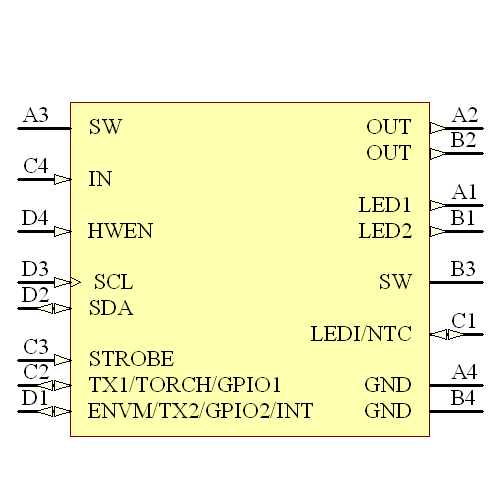

LM3554TMX/NOPB Symbol - Texas Instruments

LM3554TMX/NOPB Symbol - Texas Instruments

LM3554TMX/NOPB Symbol - Texas Instruments

‹ ›

Footprint

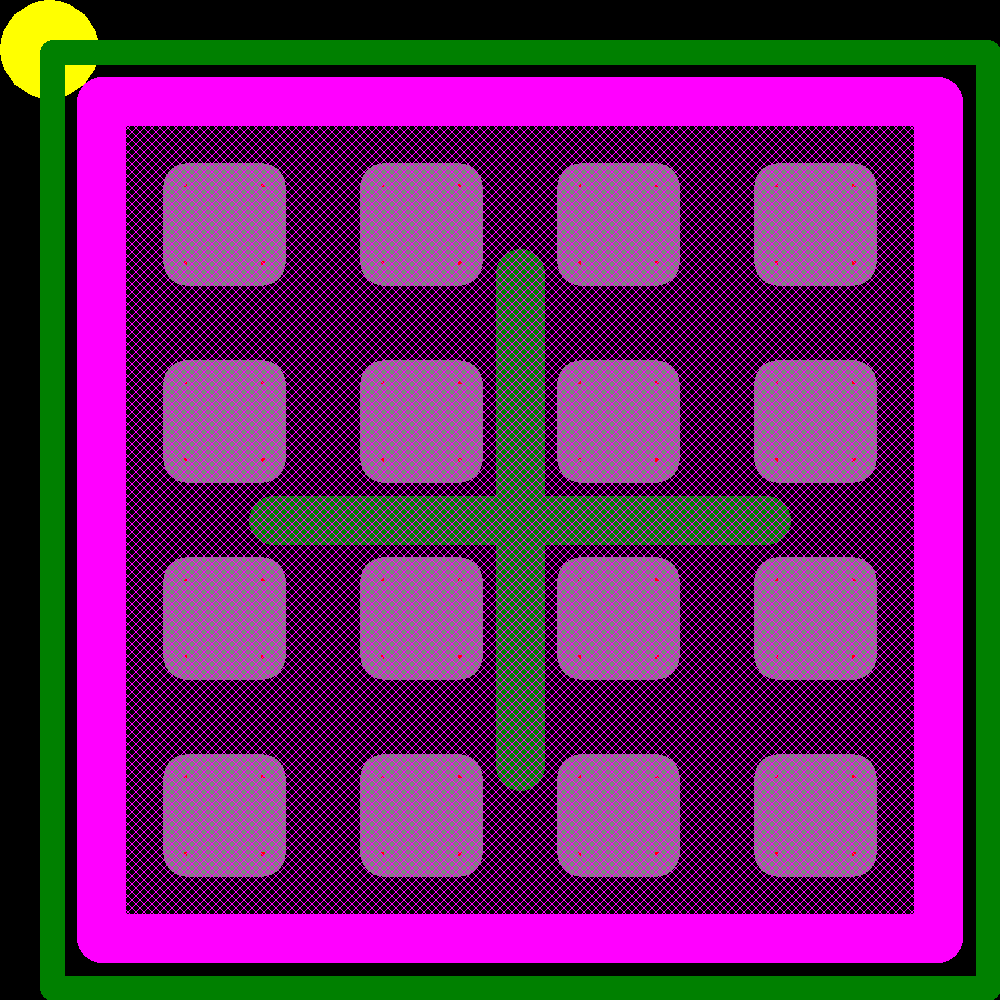

LM3554TMX/NOPB Footprint - Texas Instruments
