LM3559TLX/NOPB - Texas Instruments
Tape & Reel (TR) LM3559 Step-Up (Boost) I2C led driver 2.5mm 900mA Flash 5.5V 1W
Technical Details
| Case/Package | SMD/SMT |
| Dimming | I²C |
| Features | I²C, OVP |
| Frequency | 2MHz |
| Height | 675µm |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Current | 750µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Number of Pins | 16 |
| Number of Segments | 2 |
| Output Current | 1.8mA |
| Output Current per Channel | 900mA |
| Output Voltage | 5V |
| Packaging | Tape & Reel |
| Power Dissipation | 1W |
| Quiescent Current | 650µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 675µm |
| Topology | Boost |
| Width | 2.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

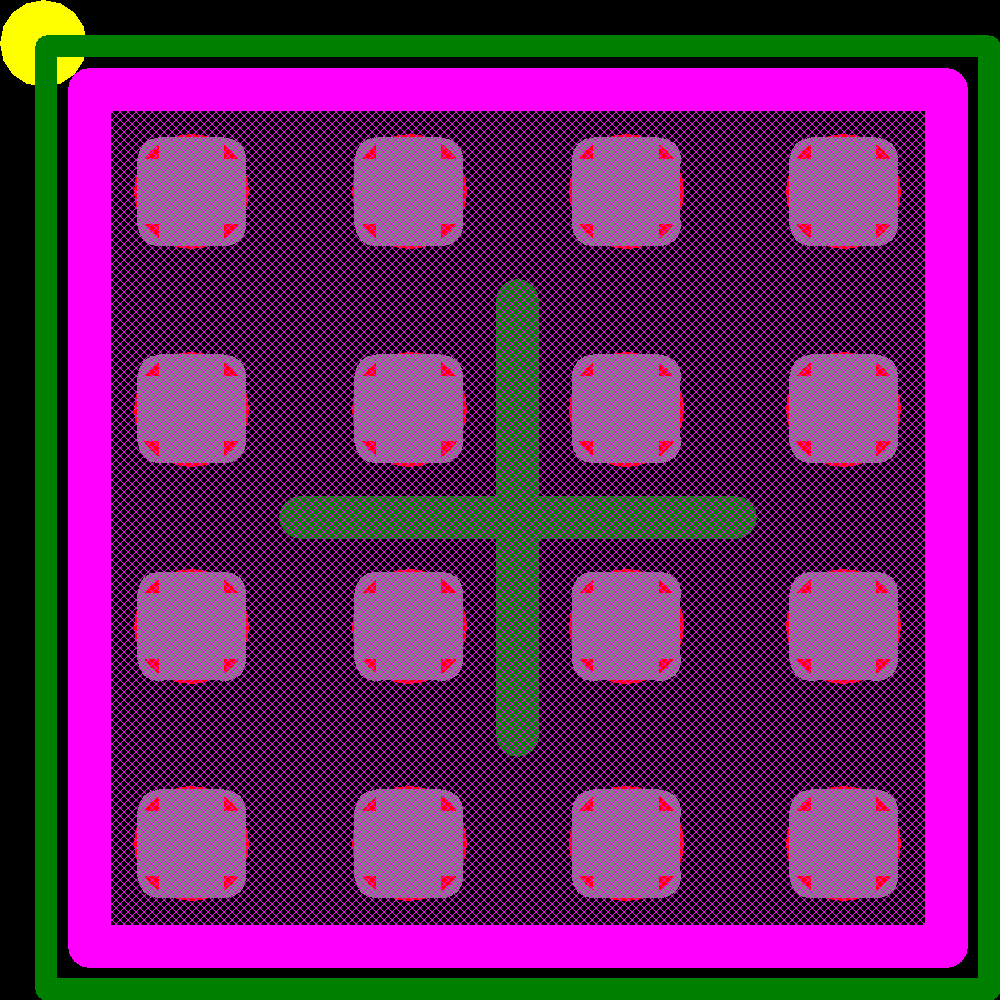

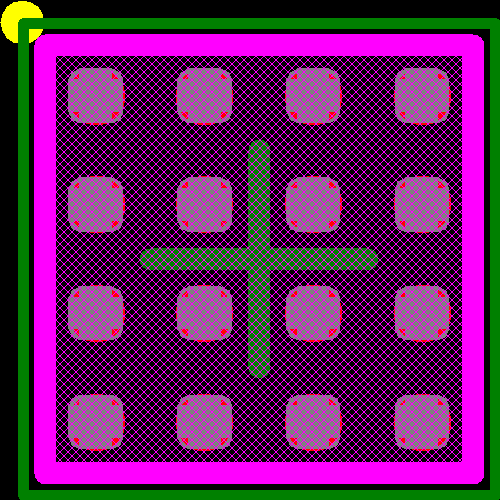

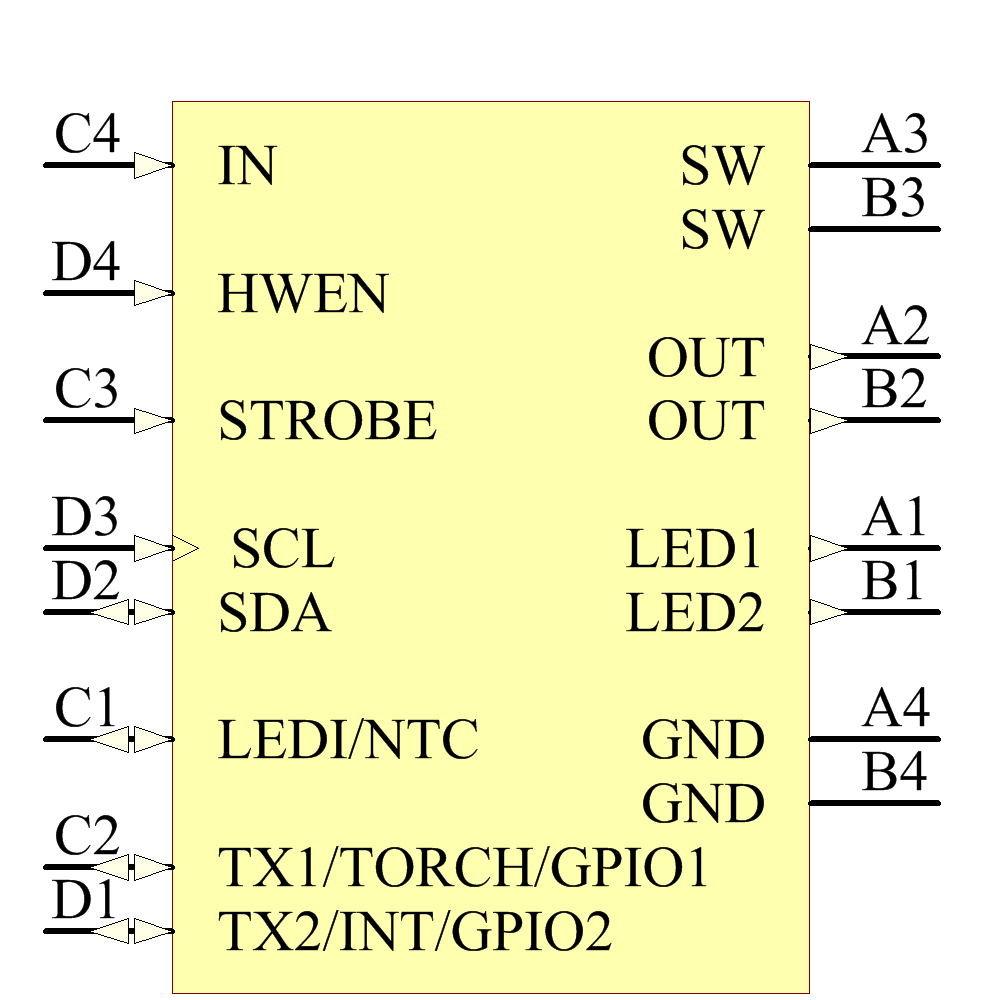

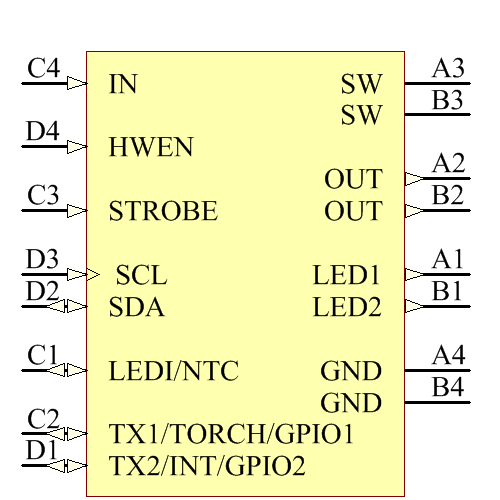

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Texas Instruments | Production | ||
| Analog Devices | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Analog Devices | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Analog Devices | Unknown |
