LM385BD-2-5 - Texas Instruments
IC VREF SHUNT 1.5% 8SOIC Shunt Voltage Reference IC Fixed 2.5V V ±1.5% 20 mA 8-SOIC
Technical Details
| Case/Package | SOIC |
| Cathode Current | 20µA |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 70°C |
| Max Output Current | 20mA |
| Max Output Voltage | 2.5V |
| Min Operating Temperature | 0°C |
| Nominal Supply Current | 20mA |
| Number of Channels | 1 |
| Number of Pins | 8 |
| Output Current | 20mA |
| Output Voltage | 2.5V |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Type | Shunt |
| Reference Voltage | 2.5V |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Temperature Coefficient | 20ppm/°C |
| Thickness | 1.58mm |
| Tolerance | 1.5% |
| Weight | 72.603129mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

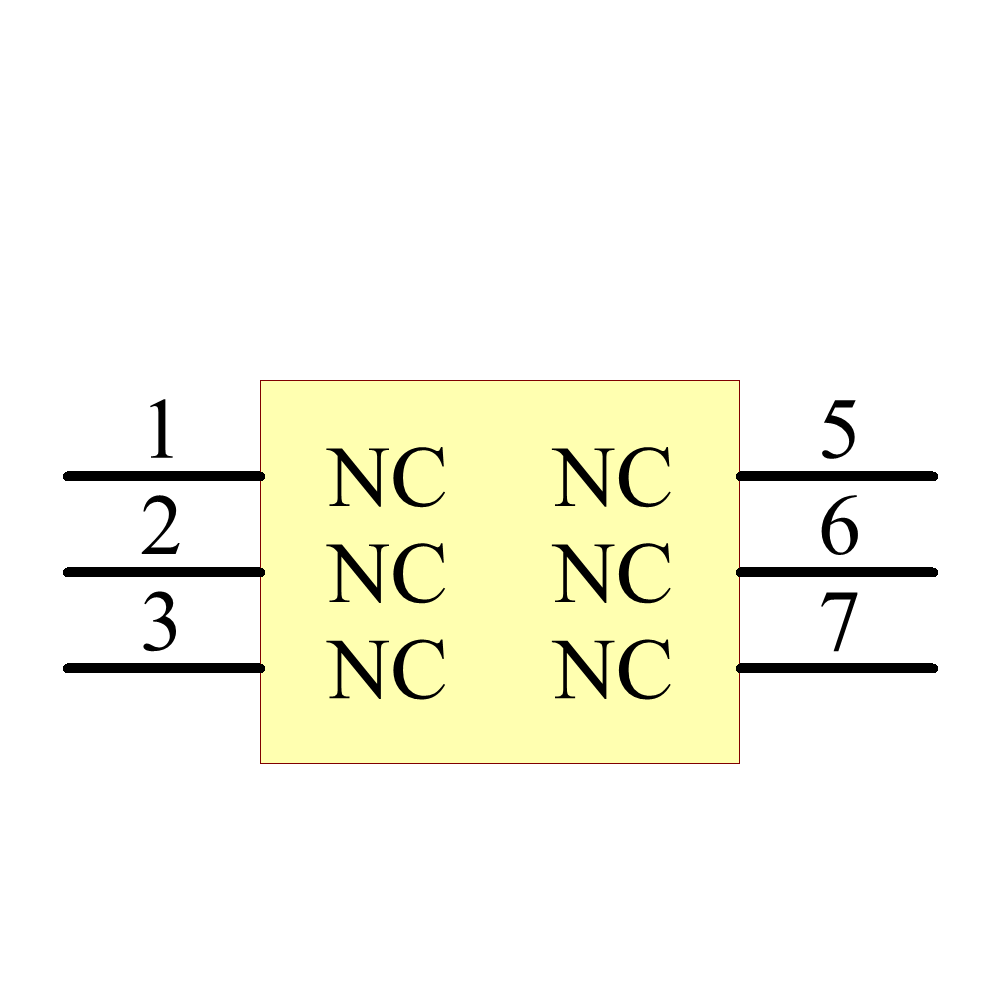

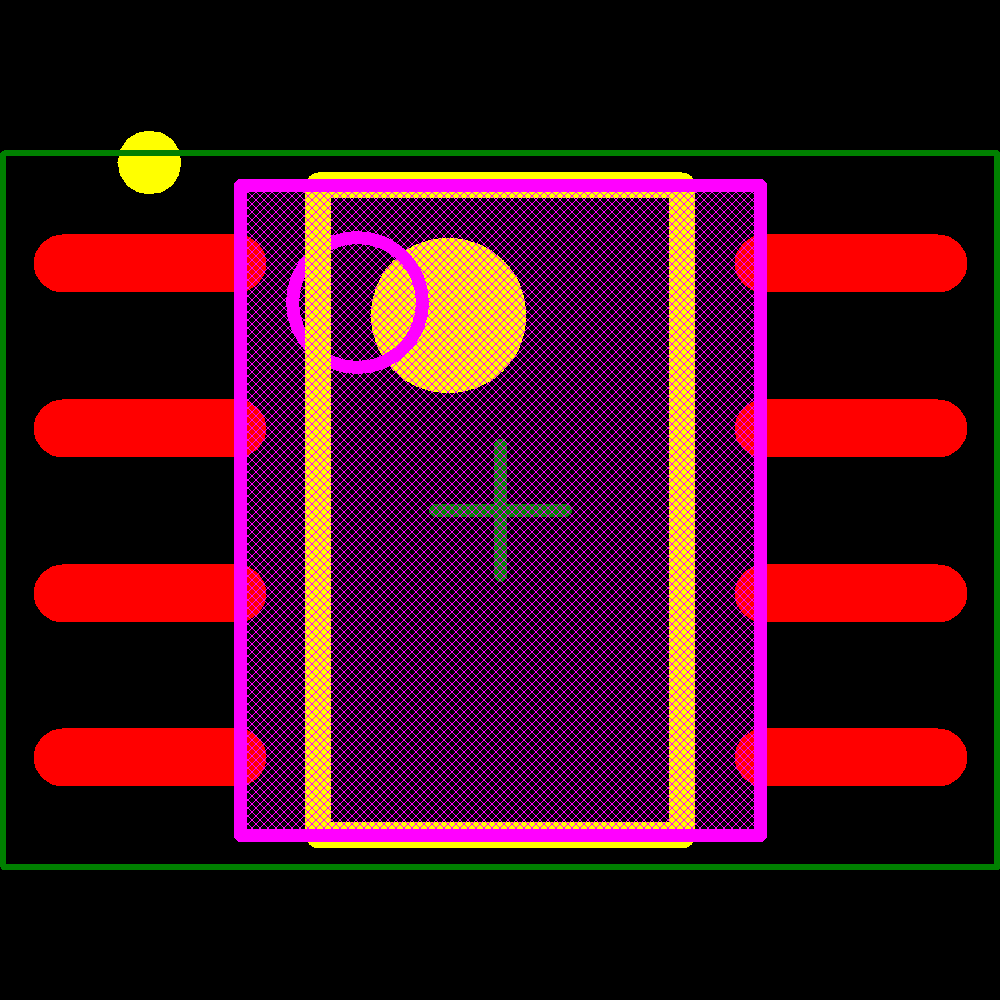

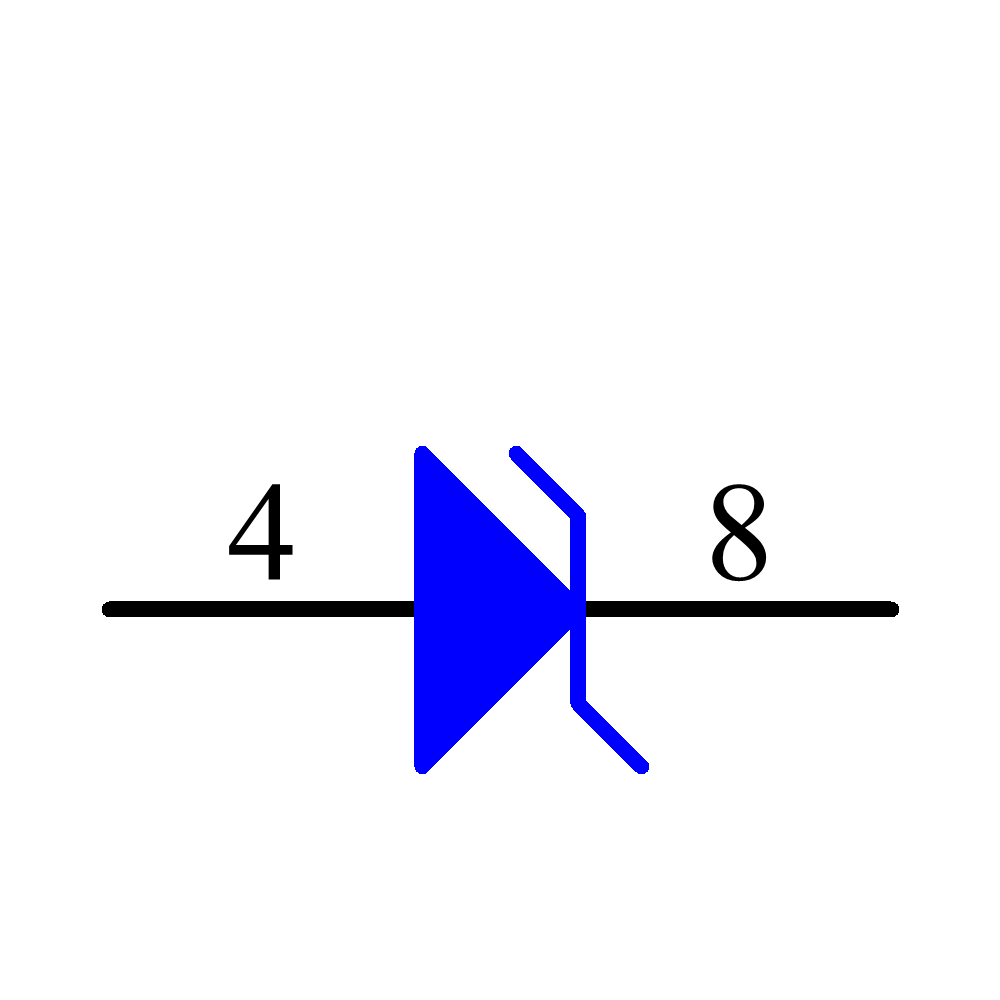

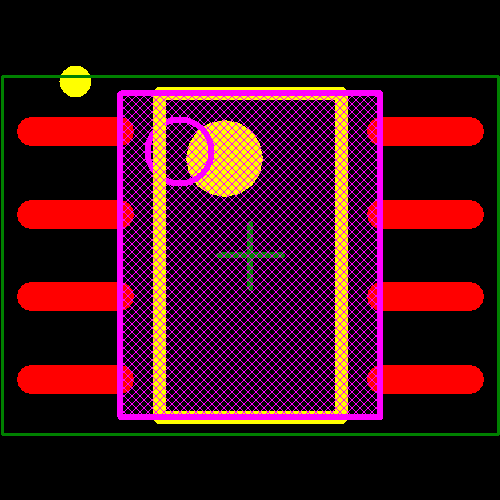

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown |
