LM4040BIM3X-4.1 - Texas Instruments
IC VREF SHUNT 0.2% SOT23-3 Shunt Voltage Reference IC Fixed 4.096V V ±0.2% 15 mA SOT-23-3
Technical Details
| Case/Package | SOT-23 |
| Cathode Current | 73µA |
| Height | 1.22mm |
| Length | 2.92mm |
| Lifecycle Status | NRND |
| Manufacturer Lifecycle Status | NRND |
| Max Operating Temperature | 85°C |
| Max Output Current | 15mA |
| Max Output Voltage | 4.096V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 4.096V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Pins | 3 |
| Output Current | 15mA |
| Output Type | Fixed |
| Output Voltage | 4.1V |
| Radiation Hardening | No |
| Reference Type | Shunt |
| RoHS | Non-Compliant |
| Temperature Coefficient | 100ppm/°C |
| Thickness | 1mm |
| Tolerance | 0.2% |
| Width | 1.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

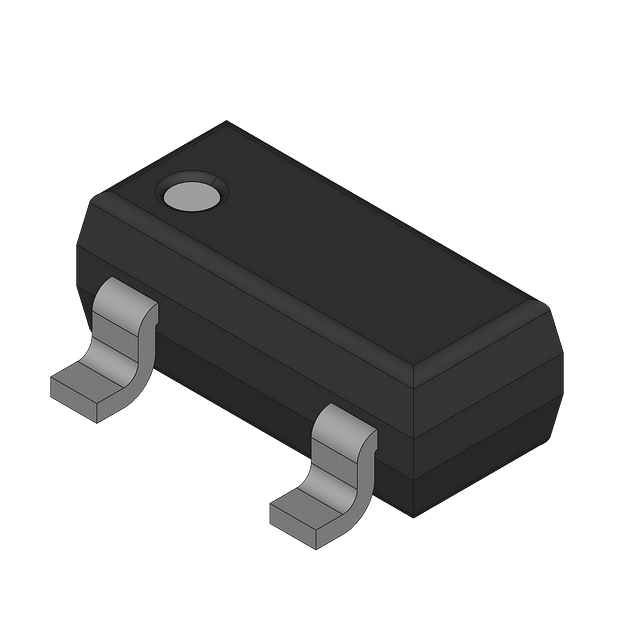

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Texas Instruments | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Texas Instruments | NRND | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Micrel | Obsolete | ||
| Diodes Inc. | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 36000
|
$ | 0.8404 | 0.6975 | 0.6219 | |||||
| Verical |
US: 36000
|
$ | 0.8719 | 0.7774 | ||||||
