LM4041C12QDBZRG4 - Texas Instruments
1.2-V precision micropower shunt voltage reference with 0.5% accuracy 3-SOT-23 -40 to 125
Technical Details
| Case/Package | SOT-23 |
| Cathode Current | 75µA |
| Height | 1.22mm |
| Length | 2.92mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Output Current | 12mA |
| Max Output Voltage | 1.225V |
| Min Input Voltage | 10V |
| Min Operating Temperature | -40°C |
| Nominal Input Voltage | 10V |
| Number of Channels | 1 |
| Number of Pins | 3 |
| Output Current | 12mA |
| Output Voltage | 1.225V |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Reference Type | Shunt |
| Reference Voltage | 1.225V |
| RoHS | Compliant |
| Temperature Coefficient | 15ppm/°C |
| Thickness | 1mm |
| Tolerance | 0.5% |
| Width | 1.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Unknown

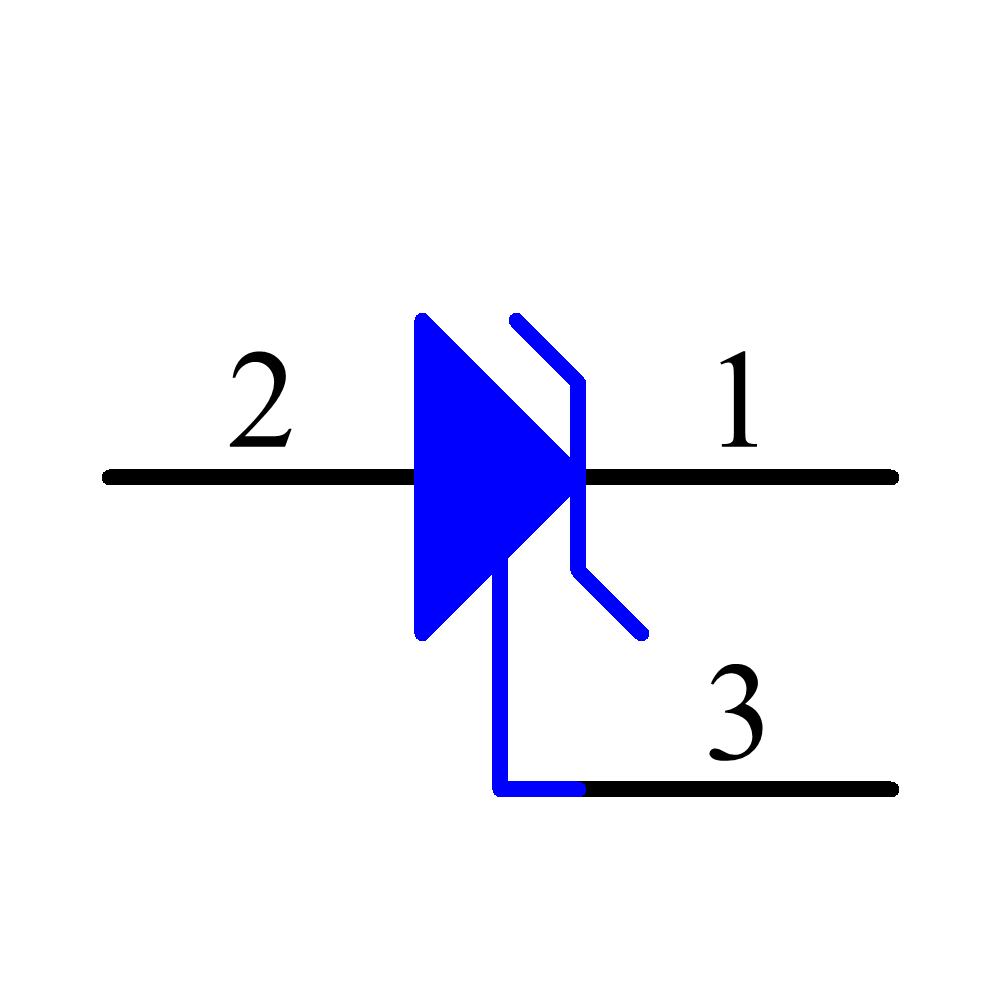

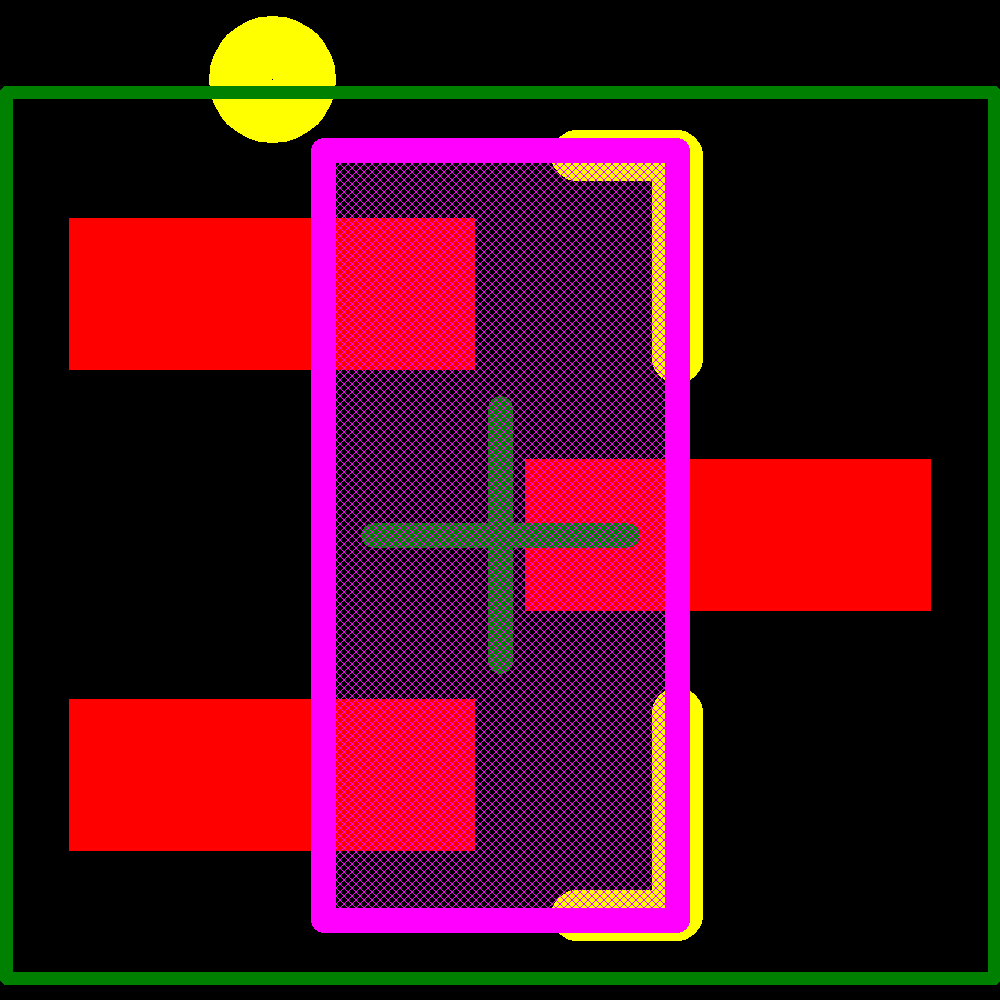

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Micrel | Obsolete | ||
| Analog Devices | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
