LM4041DIDBZTG4 - Texas Instruments
Adjustable, precision micropower shunt voltage reference with 1% accuracy 3-SOT-23 -40 to 85
Technical Details
| Case/Package | SOT-23 |
| Cathode Current | 80µA |
| Height | 1.22mm |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 15V |
| Max Operating Temperature | 125°C |
| Max Output Current | 12mA |
| Max Output Voltage | 10V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.233V |
| Nominal Input Voltage | 10V |
| Number of Pins | 3 |
| Output Current | 12mA |
| Output Type | Adjustable |
| Output Voltage | 10V |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Type | Adjustable, Shunt |
| Reference Voltage | 1.233V |
| RoHS | Compliant |
| Temperature Coefficient | 150ppm/°C |
| Termination | SMD/SMT |
| Thickness | 1mm |
| Tolerance | 1% |
| Width | 1.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

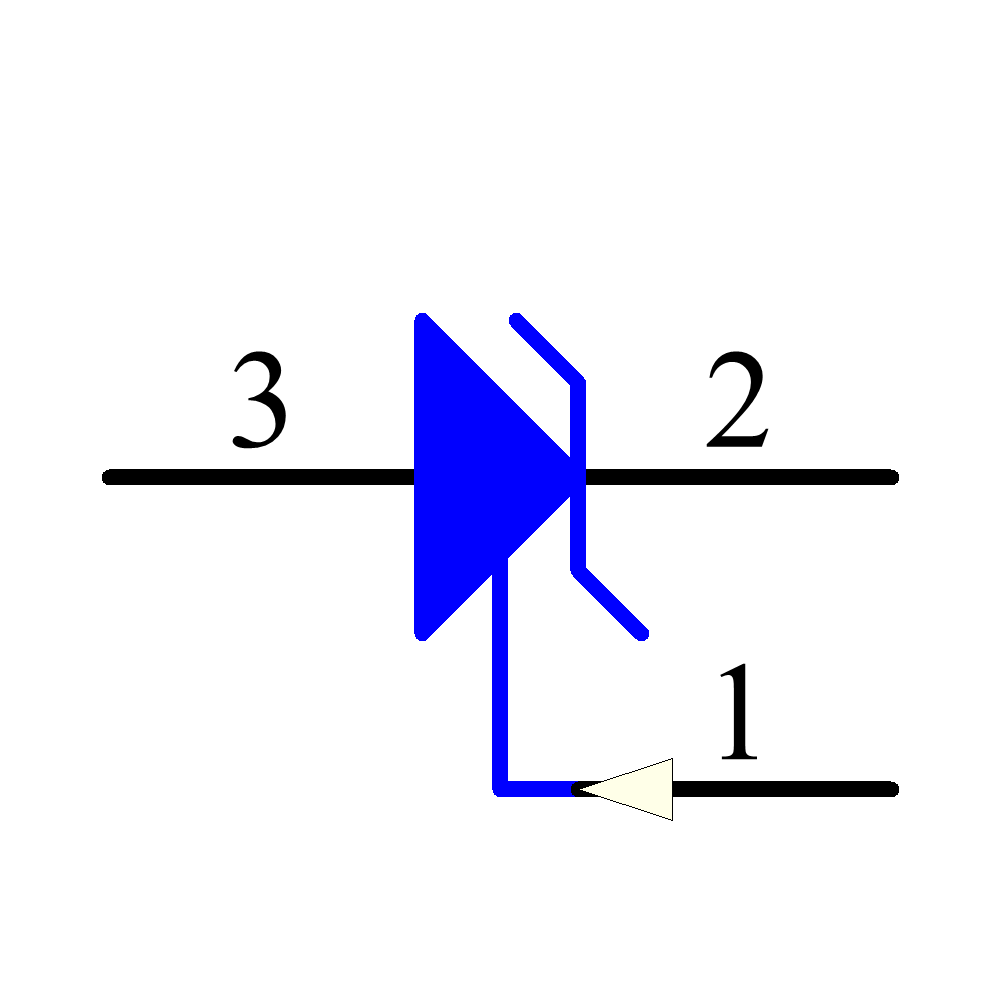

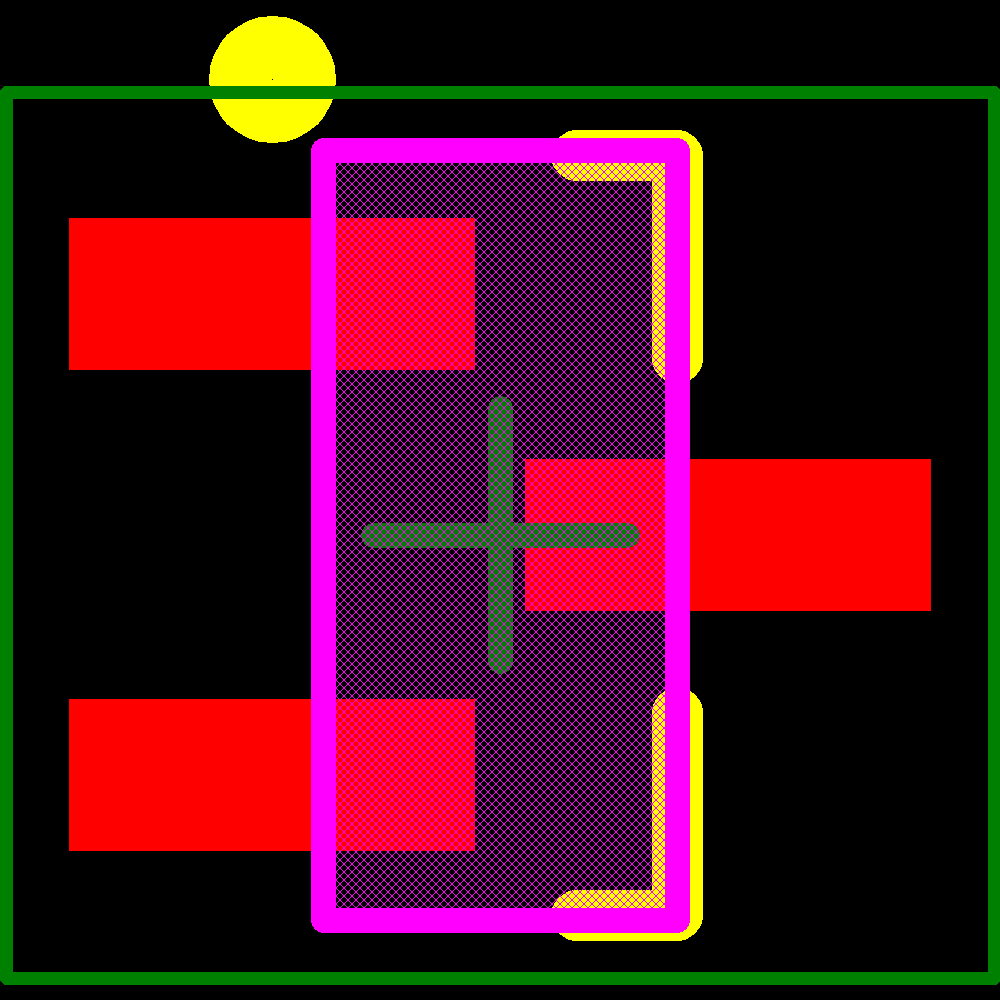

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Micrel | Unknown | ||
| Fairchild Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Microchip | Production | ||
| Micrel | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 124
|
$ | 1.78 | 1.14 | 1.02 | 0.843 | 0.514 | 0.491 | ||
