LM5007SD/NOPB - Texas Instruments

9-75V Wide Vin, 500mA Constant On-Time Non-Synchronous Buck egulator 8-WSON -40 to 125

Technical Details

Contact Plating	Tin
Efficiency	93%
Frequency	800kHz
Height	800µm
Lead Free	Lead Free
Length	4mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Input Voltage	75V
Max Operating Temperature	125°C
Max Output Current	500mA
Max Output Voltage	73V
Max Supply Voltage	75V
Min Input Voltage	9V
Min Operating Temperature	-40°C
Min Output Voltage	2.5V
Min Supply Voltage	9V
Mount	Surface Mount
Number of Channels	1
Number of Outputs	1
Number of Pins	8
Output Current	500mA
Output Type	Adjustable
Output Voltage	73V
Packaging	Cut Tape
Quiescent Current	500µA
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Switching Frequency	800kHz
Termination	SMD/SMT
Thickness	800µm
Topology	Buck
Width	4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Texas Instruments LM5007SD/NOPB | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

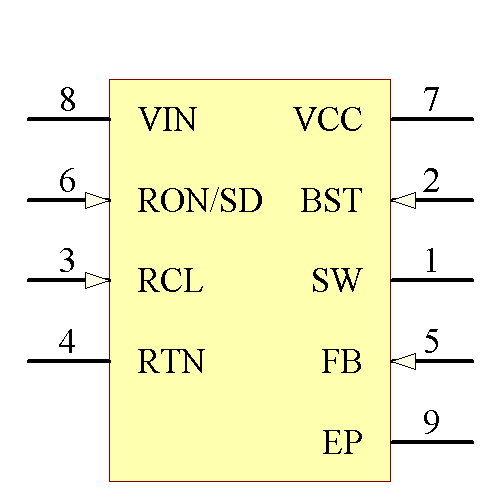

LM5007SD/NOPB Symbol - Texas Instruments

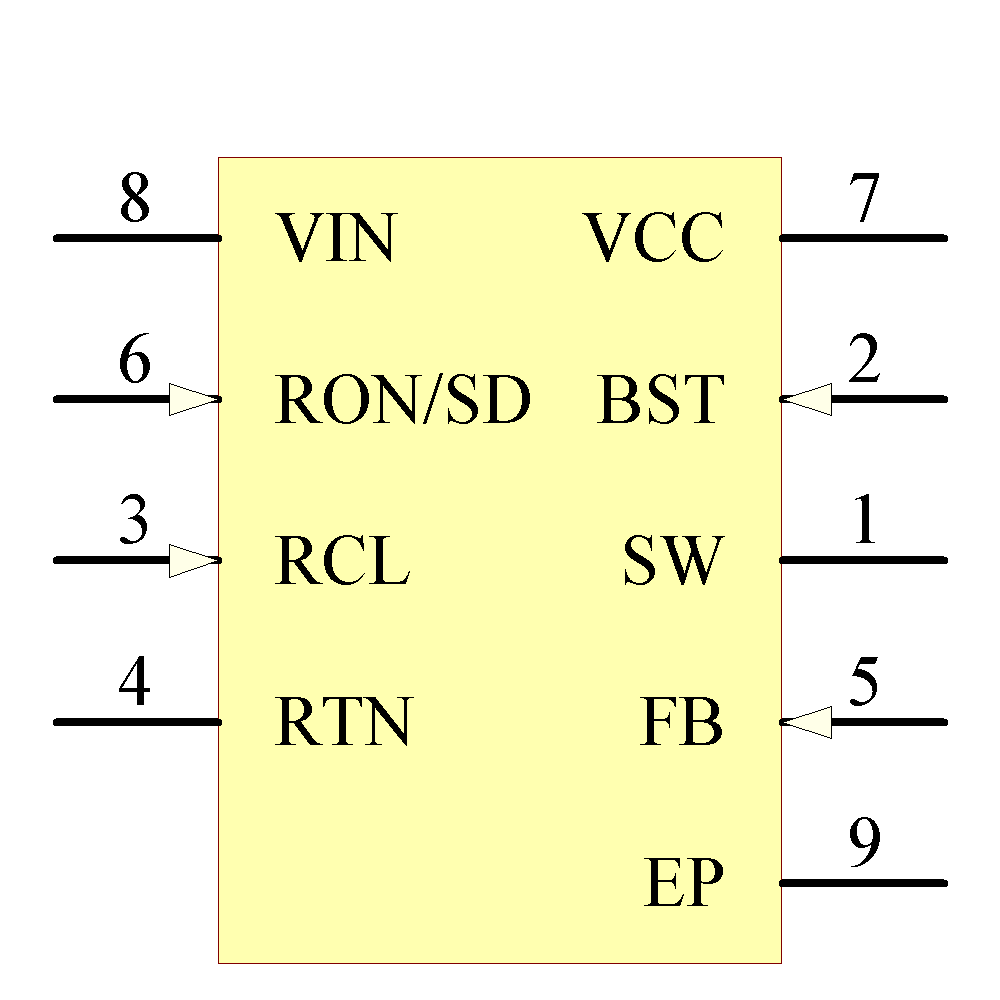

LM5007SD/NOPB Symbol - Texas Instruments

LM5007SD/NOPB Symbol - Texas Instruments

LM5007SD/NOPB Symbol - Texas Instruments

‹ ›

Footprint

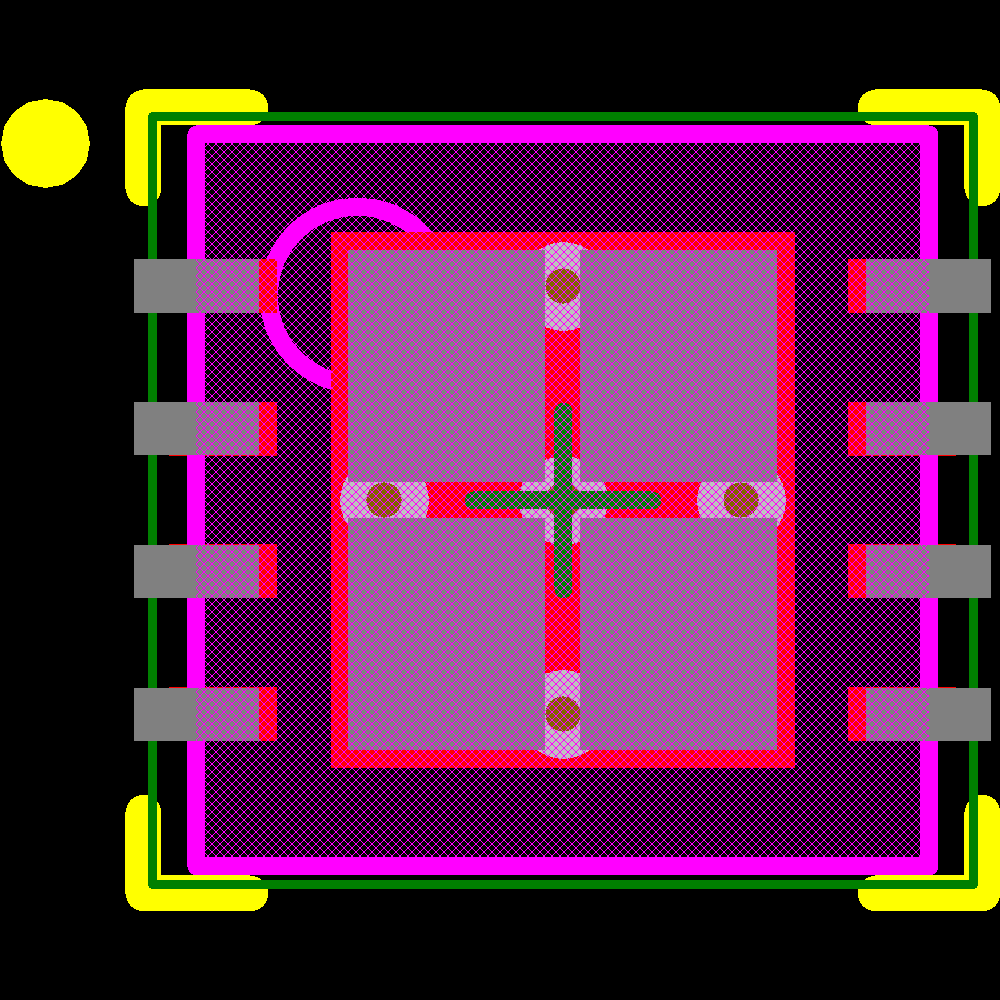

LM5007SD/NOPB Footprint - Texas Instruments
