LM5101BMAX/NOPB - Texas Instruments

2-A, 100-V half bridge gate driver with 8-V UVLO and TTL inputs 8-SOIC -40 to 125

Technical Details

Case/Package	SOIC
Fall Time	430ns
Height	1.75mm
Lead Free	Lead Free
Length	4.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	125°C
Max Output Current	2A
Max Supply Voltage	14V
Min Operating Temperature	-40°C
Min Supply Voltage	9V
Mount	Surface Mount
Nominal Supply Current	2mA
Number of Channels	2
Number of Drivers	2
Number of Outputs	2
Number of Pins	8
Output Current	2A
Packaging	Tape & Reel
Propagation Delay	26ns
Quiescent Current	200µA
Radiation Hardening	No
Rise Time	570ns
RoHS	Compliant
Schedule B	8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|85
Thickness	1.58mm
Turn-Off Delay Time	4ns
Turn-On Delay Time	4ns
Width	3.91mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

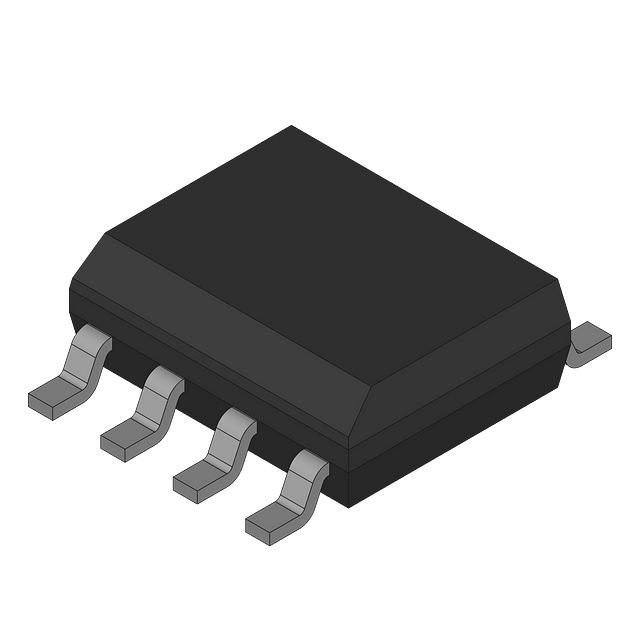

Texas Instruments LM5101BMAX/NOPB | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

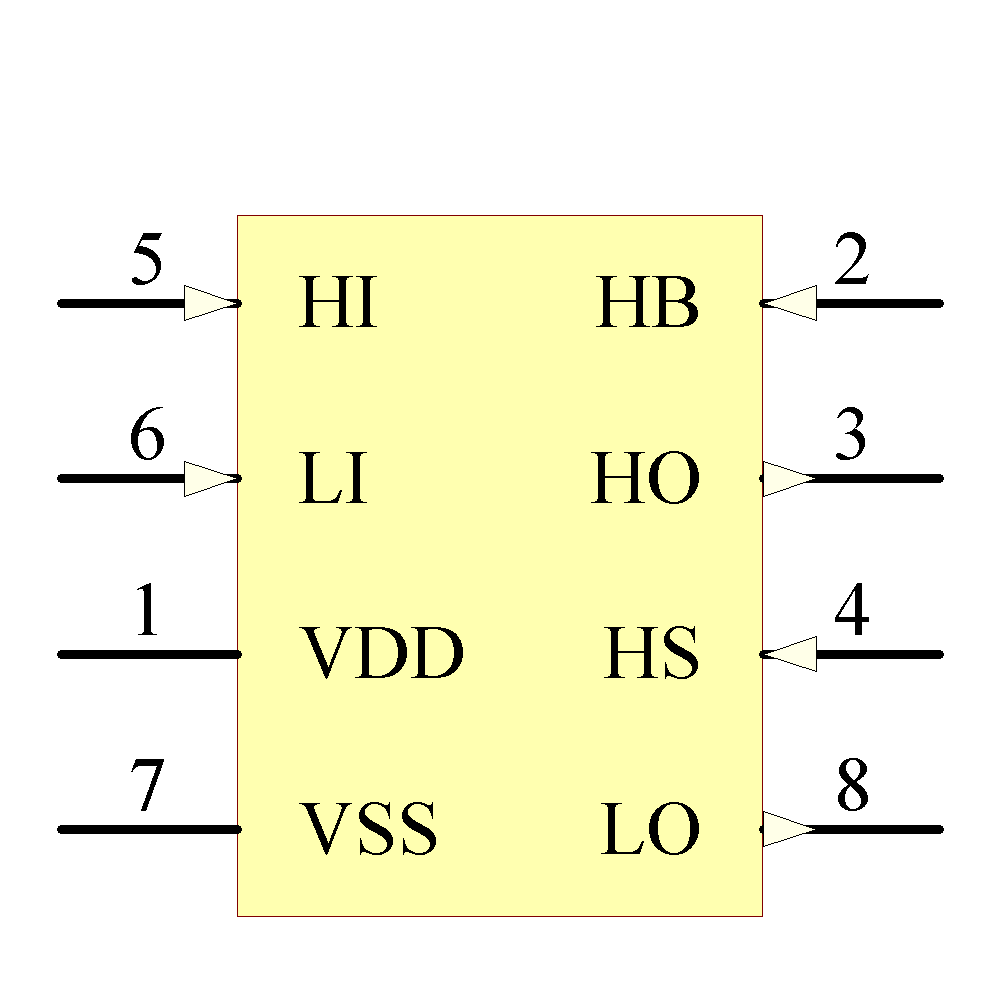

LM5101BMAX/NOPB Symbol - Texas Instruments

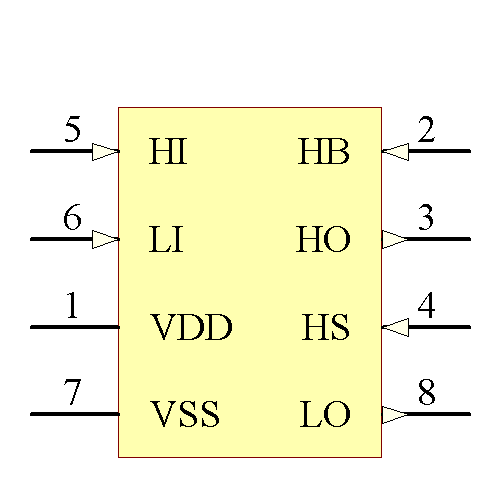

LM5101BMAX/NOPB Symbol - Texas Instruments

LM5101BMAX/NOPB Symbol - Texas Instruments

LM5101BMAX/NOPB Symbol - Texas Instruments

‹ ›

Footprint

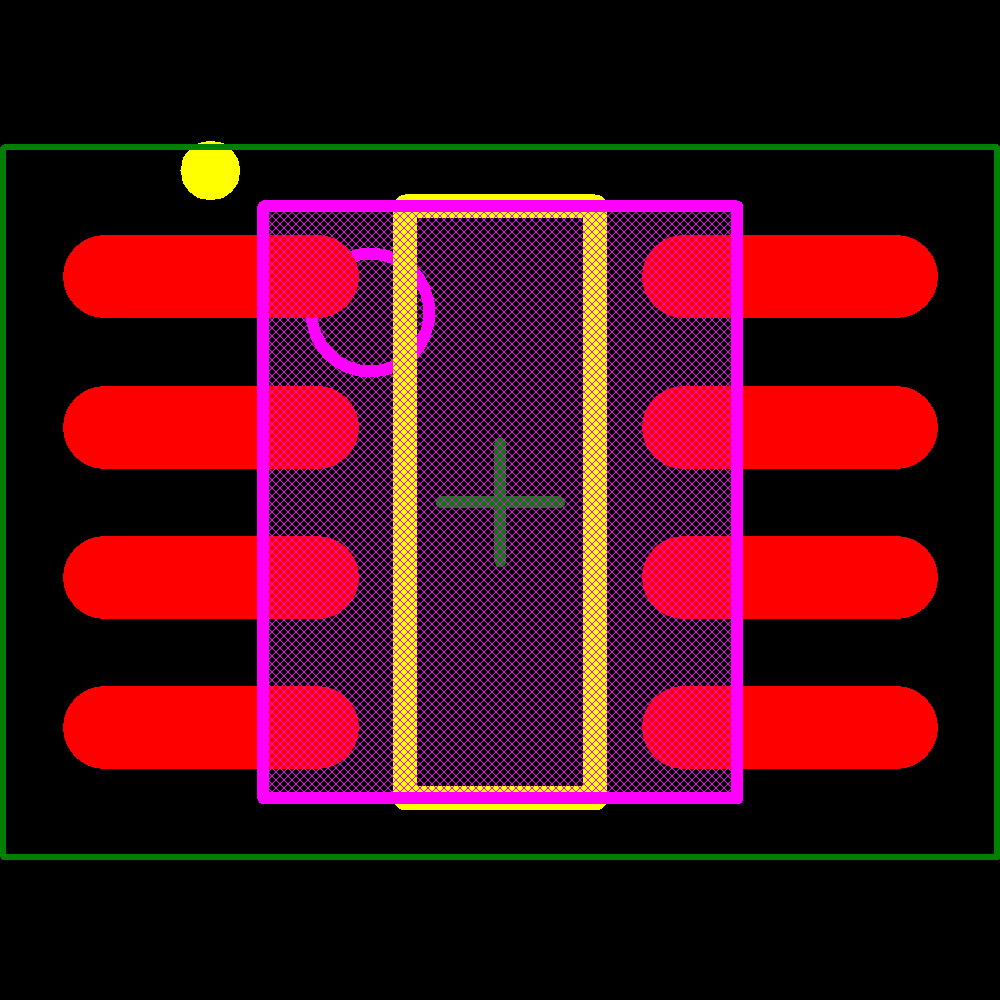

LM5101BMAX/NOPB Footprint - Texas Instruments

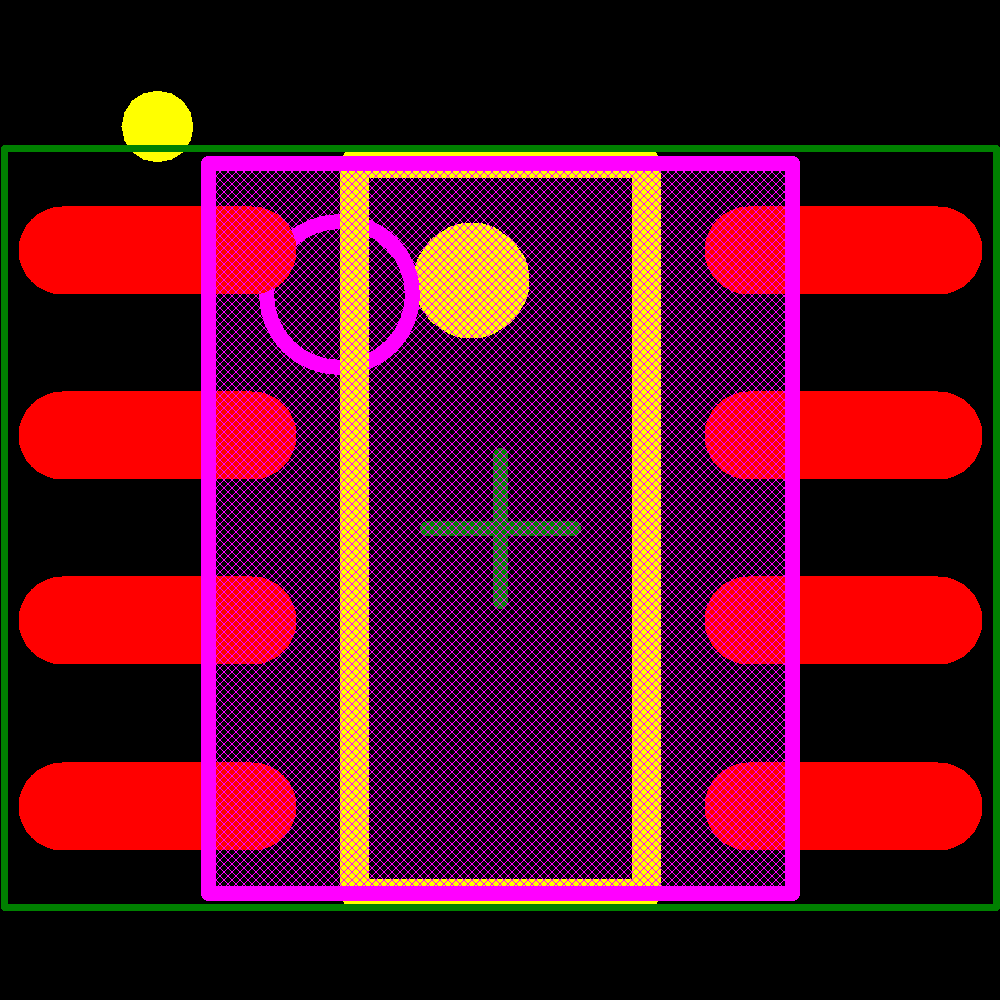

LM5101BMAX/NOPB Footprint - Texas Instruments

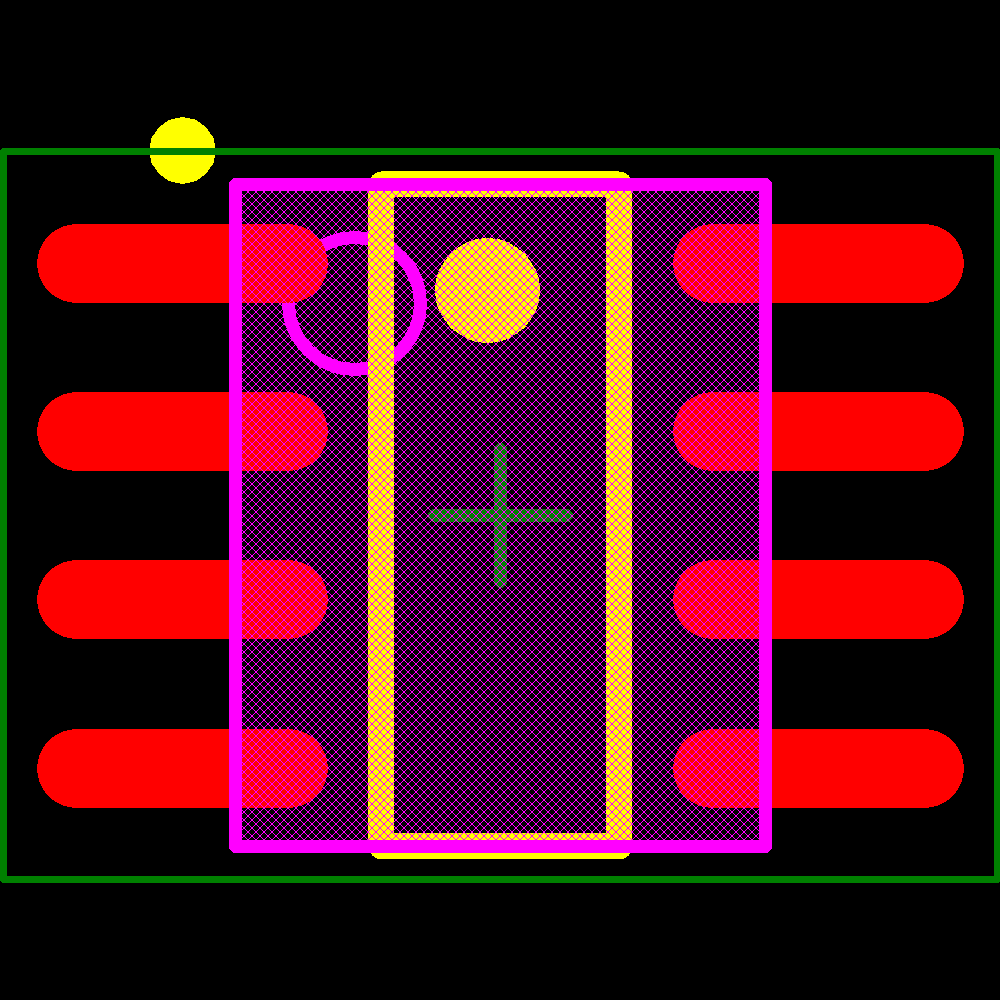

LM5101BMAX/NOPB Footprint - Texas Instruments

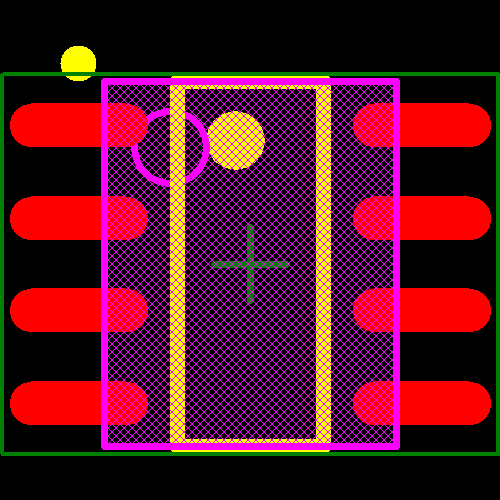

LM5101BMAX/NOPB Footprint - Texas Instruments
