LM5117PSQ/NOPB - Texas Instruments
IC REG CTRLR BUCK 24WQFN Buck Regulator Positive Output Step-Down DC-DC Controller IC 24-WQFN (4x4)
Technical Details
| Clock Sync | No |
| Duty Cycle | 99% |
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 530kHz |
| Max Input Voltage | 65V |
| Max Operating Temperature | 125°C |
| Min Input Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Number of Pins | 24 |
| Output Configuration | Positive |
| Packaging | Cut Tape (CT) |
| Quiescent Current | 4.8mA |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85 |
| Switching Frequency | 480kHz |
| Synchronous Rectifier | Yes |
| Thickness | 750µm |
| Topology | Buck |
| Width | 4mm |
Compliance
RoHS : Unconfirmed

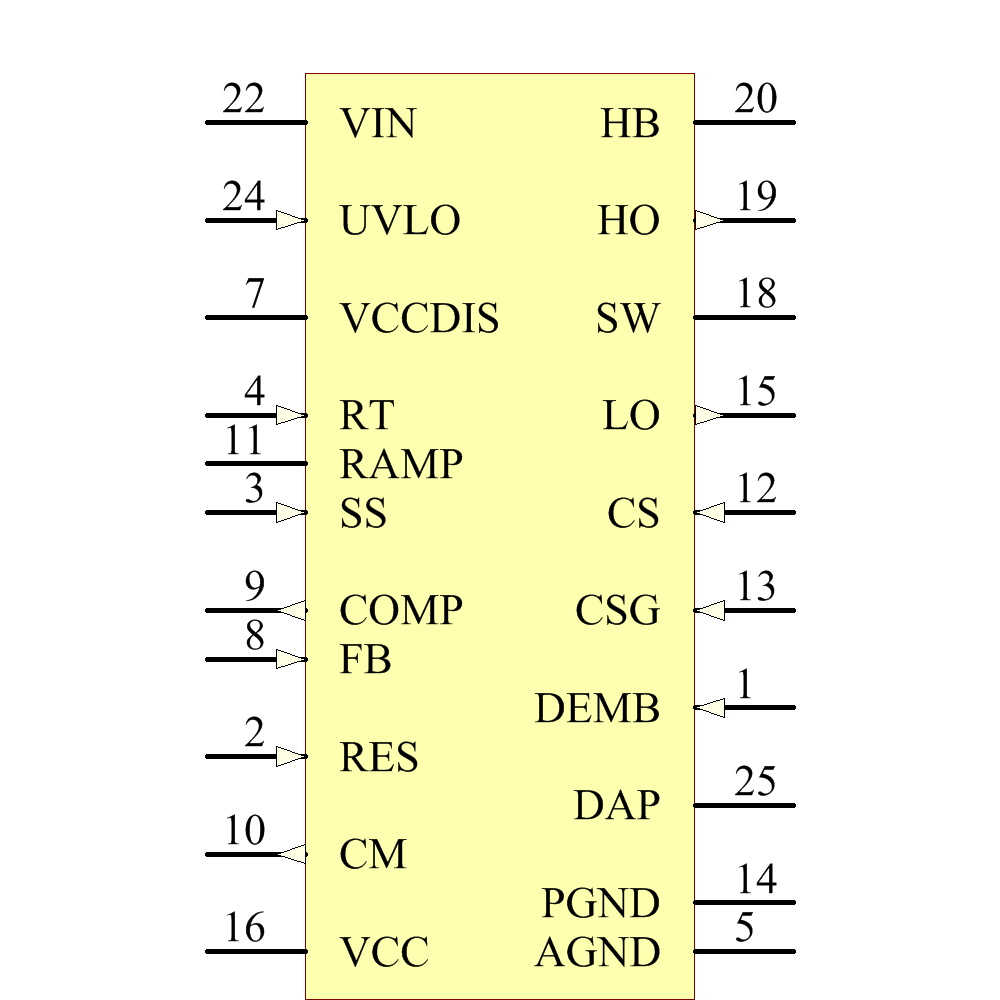

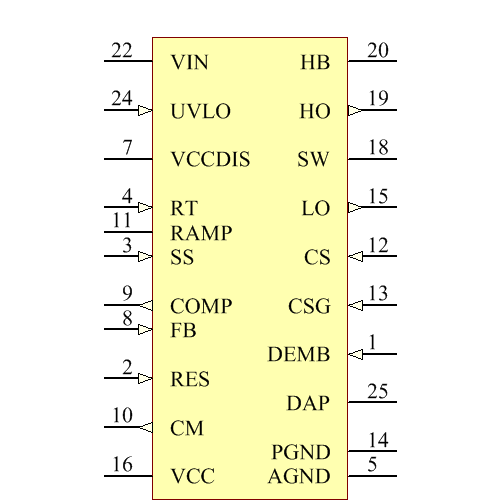

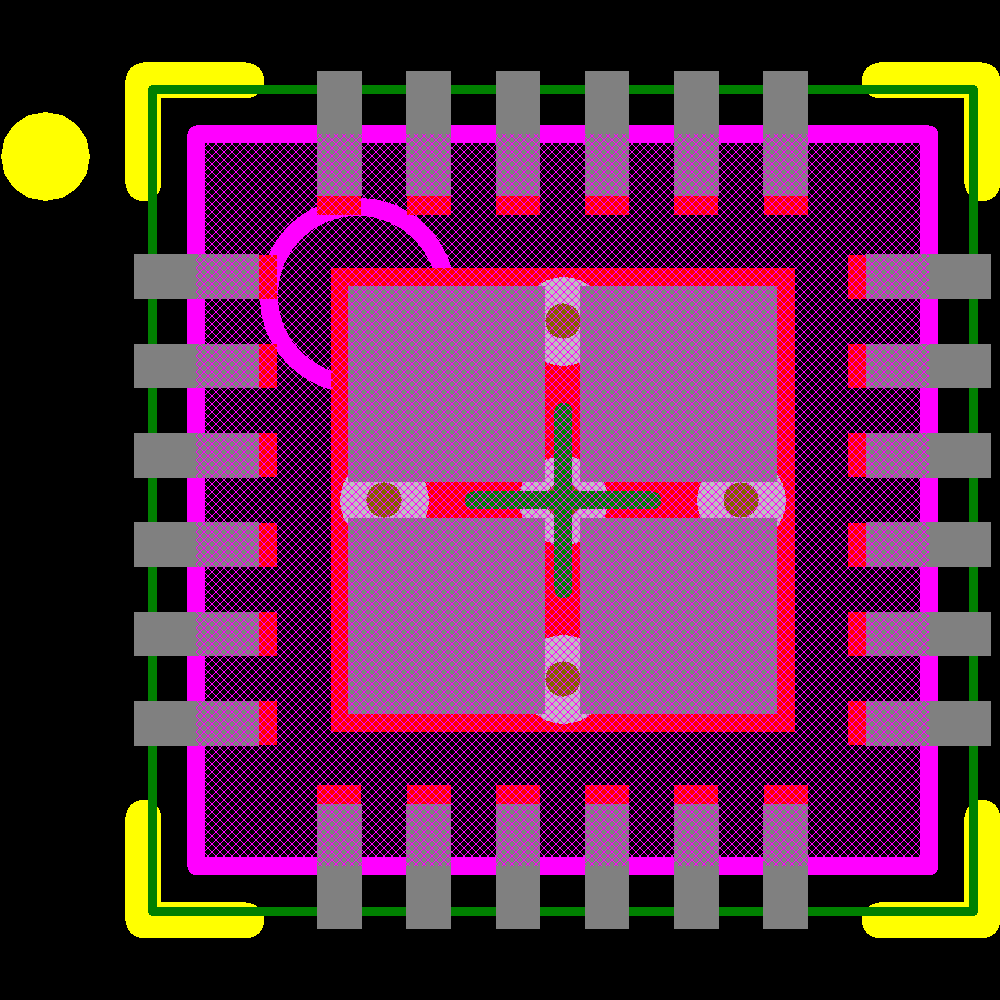

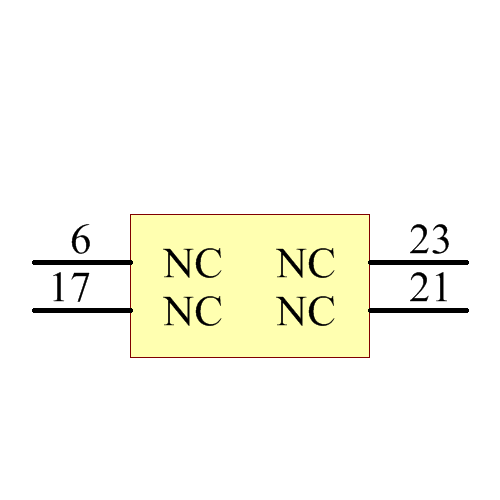

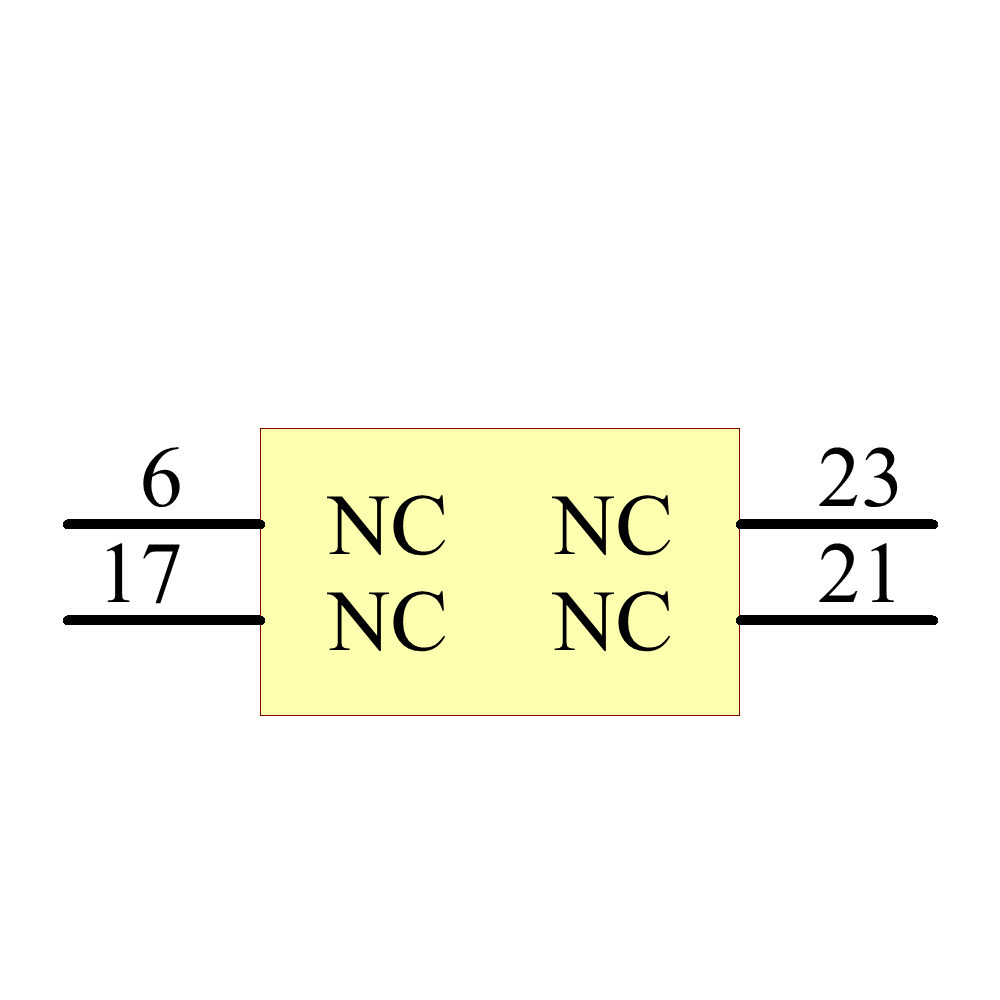

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Renesas | Obsolete | ||
| Richtek | Production | ||
| Intersil | Obsolete | ||
| Renesas | Obsolete |
