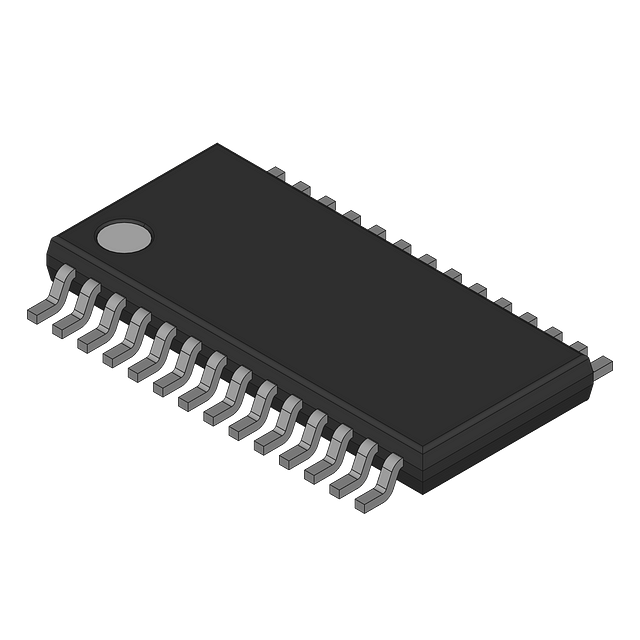

LM5642XMH/NOPB - Texas Instruments
IC REG CTRLR BUCK 28TSSOP Buck Regulator Positive Output Step-Down DC-DC Controller IC 28-HTSSOP
Technical Details
| Case/Package | HTSSOP EP |
| Contact Plating | Tin |
| Duty Cycle | 98.9% |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 9.7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Duty Cycle | 98.9% |
| Max Frequency | 424kHz |
| Max Input Voltage | 36V |
| Max Operating Temperature | 125°C |
| Max Output Voltage | 32.4V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Number of Pins | 28 |
| Output Voltage | 32.4V |
| Packaging | Cut Tape |
| Quiescent Current | 1.1mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 500kHz |
| Thickness | 1mm |
| Topology | Buck |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
