LMZ12003TZX-ADJ/NOPB - Texas Instruments
Switching Regulator, Voltage-mode, 3A, 1000kHz Switching Freq-Max, BICMOS, PSSO7
Technical Details
| Depth | 9.85mm |
| Efficiency | 92% |
| Features | OCP, OTP, OVP, SCP, UVLO |
| Height | 4.8mm |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 20V |
| Max Operating Temperature | 125°C |
| Max Output Voltage | 6V |
| Max Power Dissipation | 18W |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Nominal Input Voltage | 12V |
| Number of Outputs | 1 |
| Number of Pins | 7 |
| Output Current | 3A |
| Output Voltage | 6V |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 1MHz |
| Thickness | 4.57mm |
| Topology | Buck |
| Voltage - Output 1 | 6V |
| Width | 9.85mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

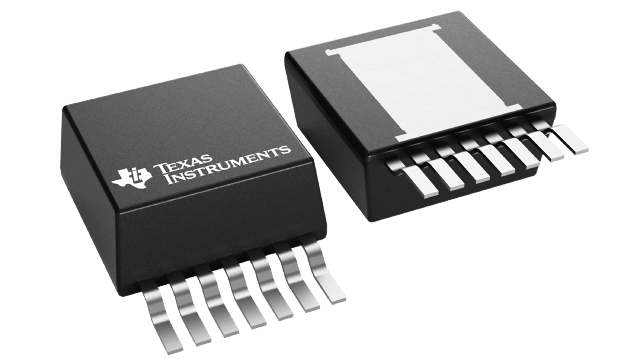

Images
