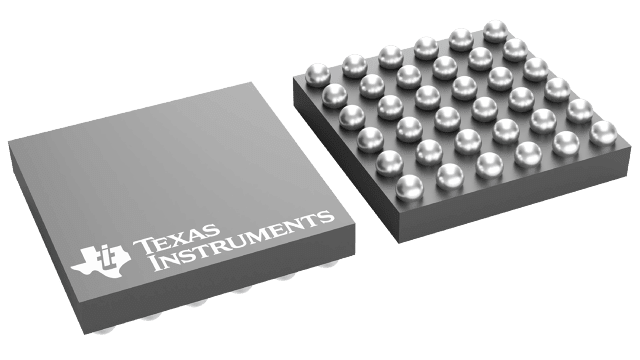

LP3954TL/NOPB - Texas Instruments
Tape & Reel (TR) LP3954 Step-Up (Boost) PWM led driver 3.5mm 900mA Switch 5.5V 2MHz
Technical Details
| Features | I²C |
| Frequency | 2MHz |
| Height | 675µm |
| Lead Free | Lead Free |
| Length | 3.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Current | 400µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -30°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 400µA |
| Number of Channels | 13 |
| Number of Outputs | 13 |
| Number of Pins | 36 |
| Number of Segments | 13 |
| Output Voltage | 5.3V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 400µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 2MHz |
| Thickness | 675µm |
| Topology | Boost |
| Width | 3.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
Images

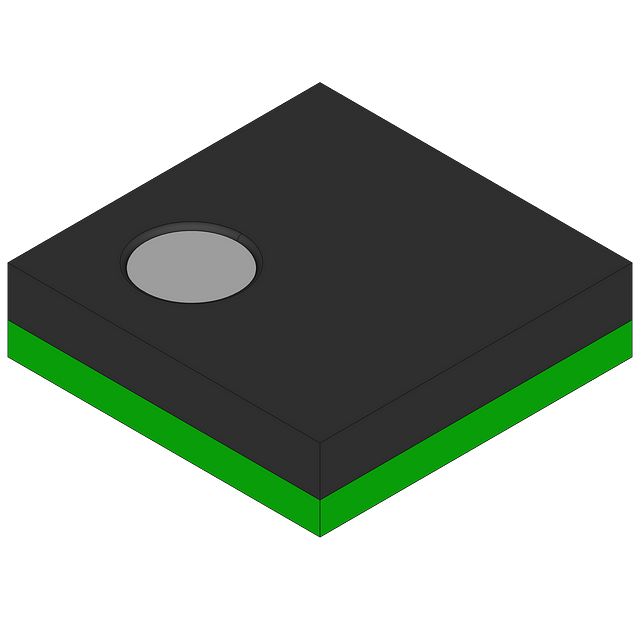

Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| ROHM | Obsolete | ||
| Texas Instruments | Production | ||
| onsemi | Obsolete | ||
| Texas Instruments | Production |
