LP3985ITLX-2.5/NOPB - Texas Instruments
150-mA, low-dropout voltage regulator with bypass & enable 5-DSBGA -40 to 125
Technical Details
| Accuracy | 2% |
| Dropout Voltage | 60mV |
| Height | 675µm |
| Lead Free | Lead Free |
| Length | 1.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Max Output Current | 150mA |
| Max Power Dissipation | 244mW |
| Min Input Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Output Voltage Accuracy | 2% |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 244mW |
| Quiescent Current | 150µA |
| RoHS | Compliant |
| Thickness | 675µm |
| Width | 1.2mm |
Compliance
RoHS : Unconfirmed

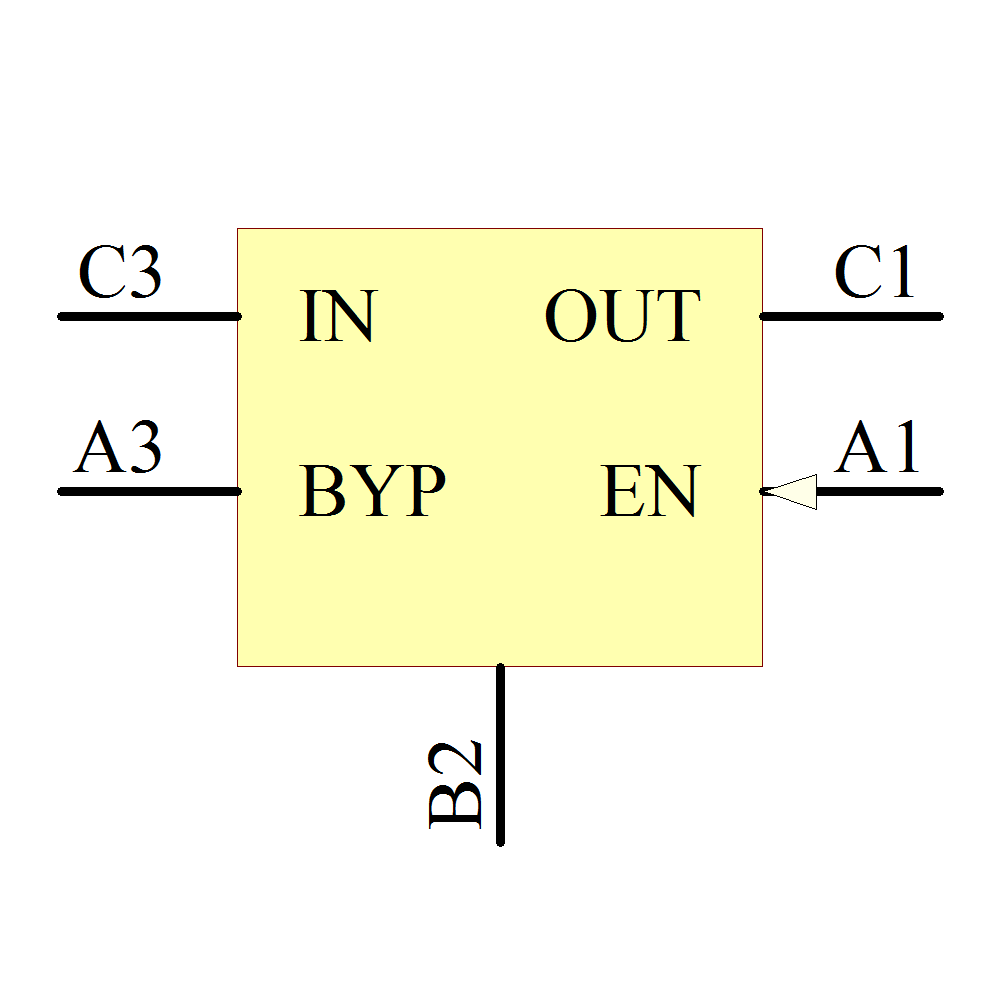

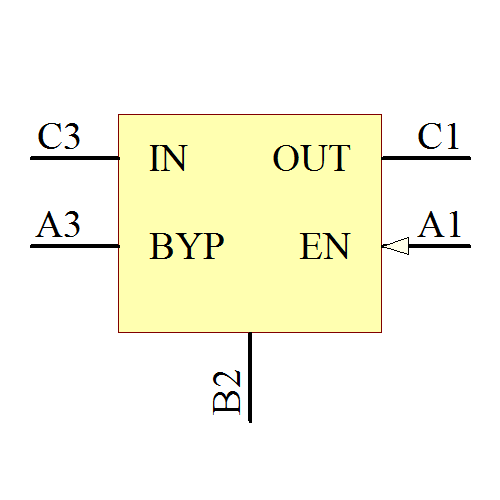

Images
