LP5524TMX-5/NOPB - Texas Instruments
4 channel LED driver with dual PWM brightness control 9-DSBGA -40 to 85
Technical Details
| Height | 675µm |
| Lead Free | Lead Free |
| Length | 0m |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Current | 210µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Number of Pins | 9 |
| Number of Segments | 4 |
| Output Current | 25.5mA |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 170µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 420µm |
| Width | 0m |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

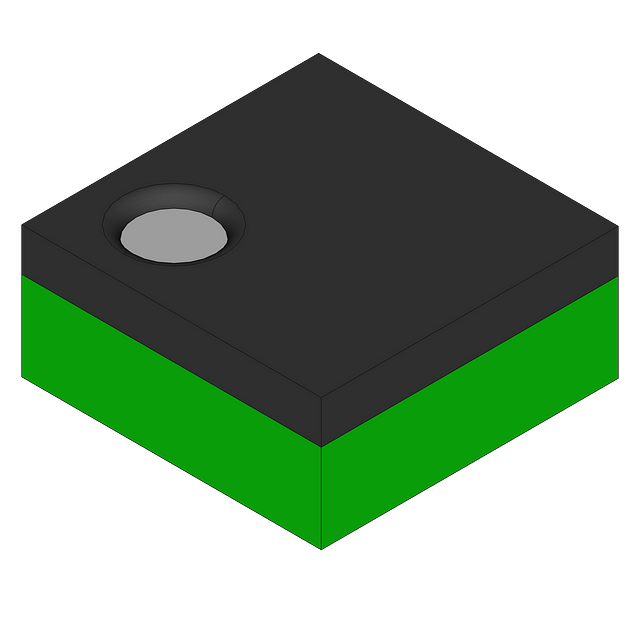

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| onsemi | Obsolete | ||
| onsemi | EOL | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| onsemi | EOL | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Monolithic Power Systems | Production |
