LP8543SQX/NOPB - Texas Instruments
SMBus/I2C controlled WLED driver for Medium Sized LCD backlight 24-WQFN -30 to 85
Technical Details
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Current | 3.5mA |
| Max Supply Voltage | 22V |
| Min Operating Temperature | -30°C |
| Min Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Channels | 7 |
| Number of Outputs | 7 |
| Number of Pins | 24 |
| Packaging | Tape and Reel |
| RoHS | Compliant |
| Thickness | 750µm |
| Topology | Boost |
| Width | 4mm |
Compliance
RoHS : Unconfirmed

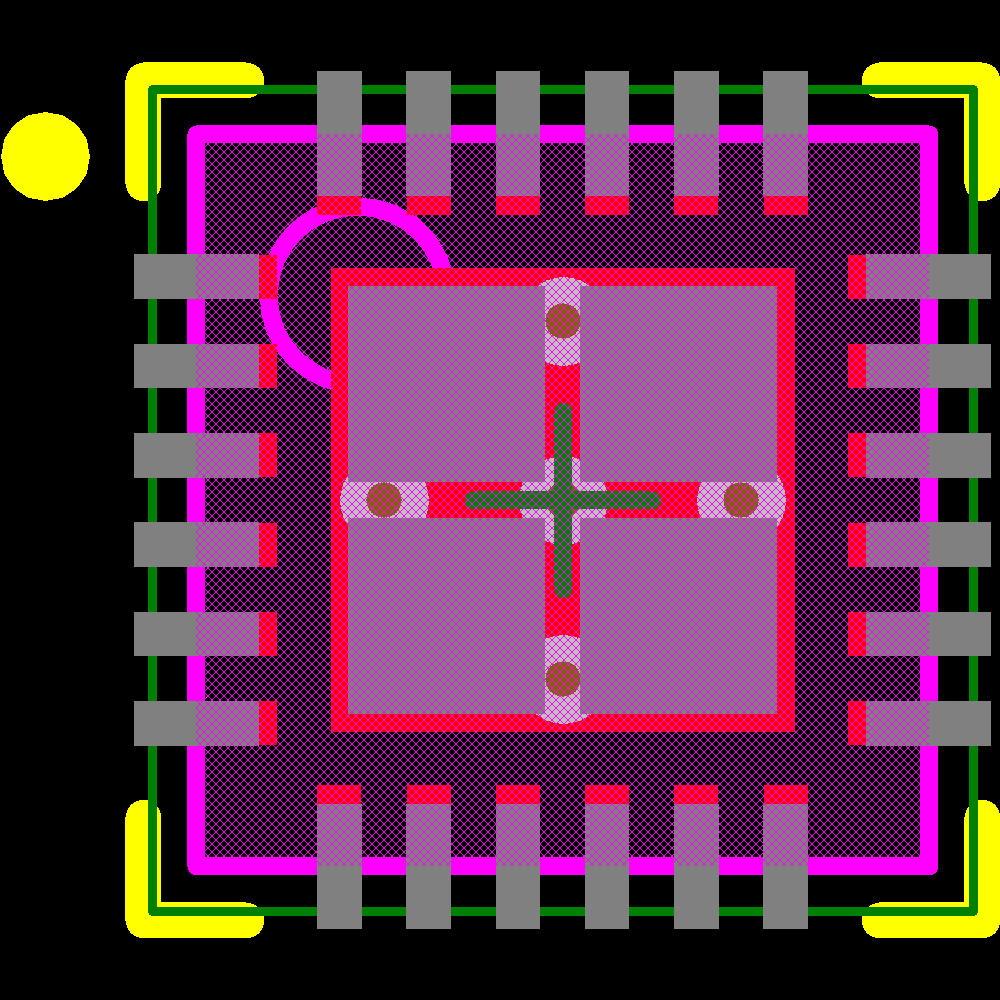

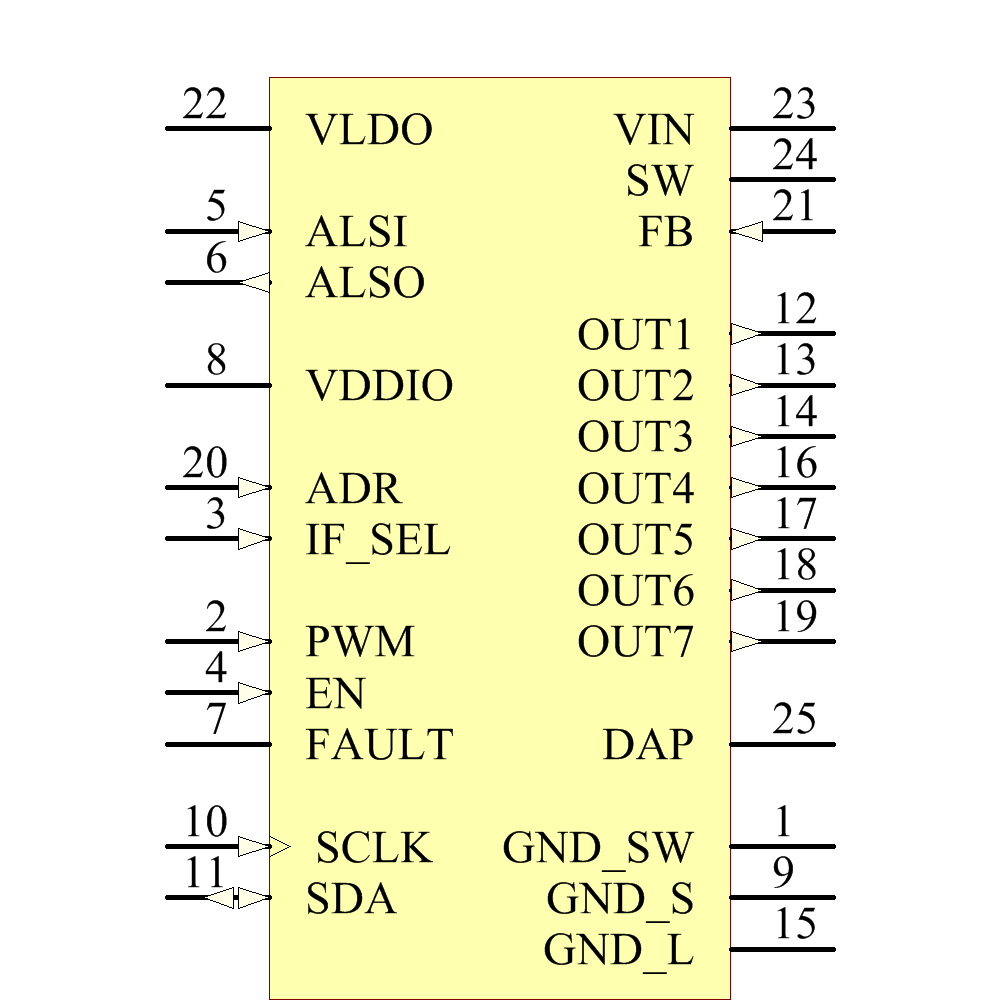

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Microchip | Unknown | ||
| Texas Instruments | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 1.501 | |||||||
| Texas Instruments |
US: 17588
|
$ | 2.125 | 2.125 | 2.125 | 1.862 | 1.052 | 1.052 | ||
